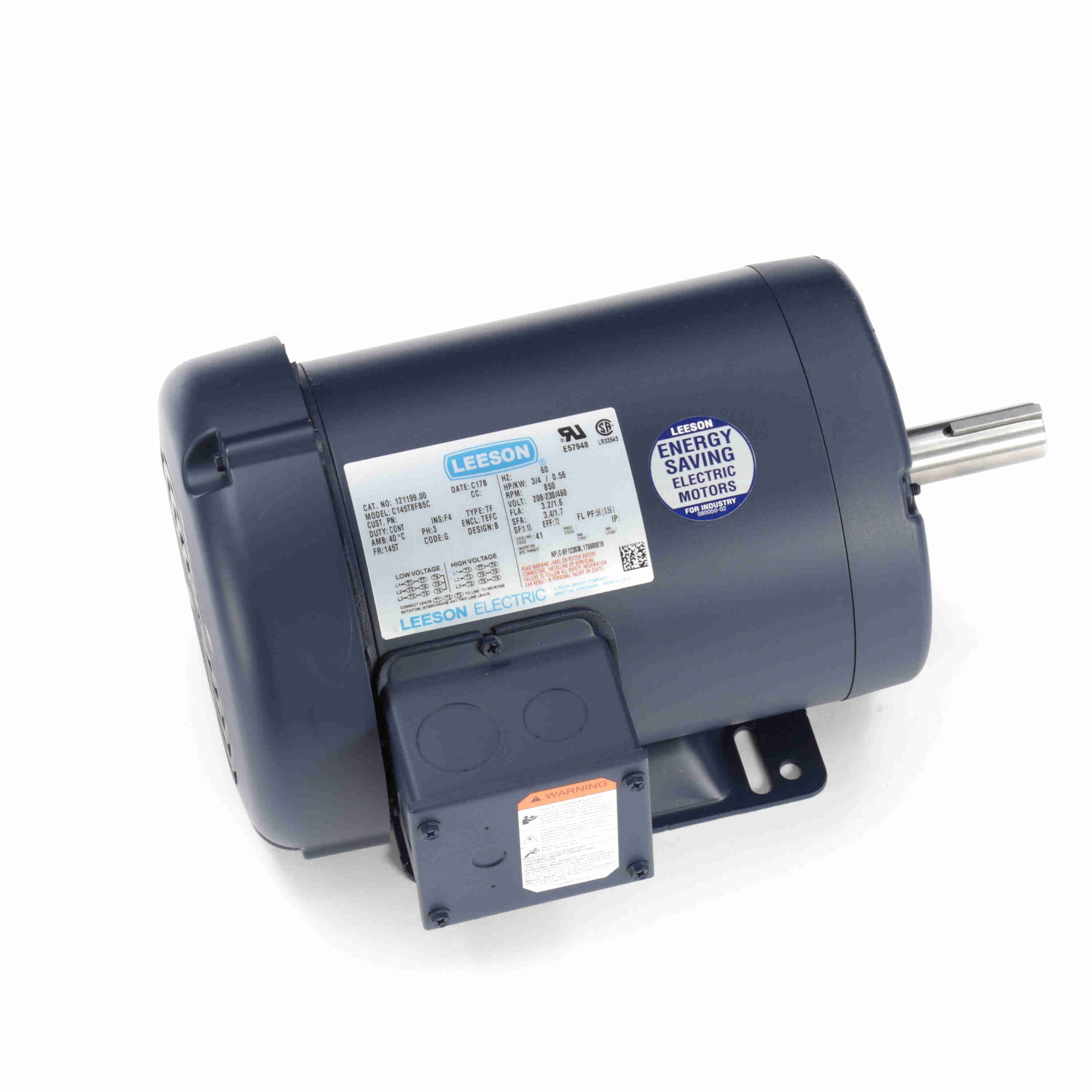

LEESON 121199.00 C145T8FB5C General Purpose Motor, 0.75 HP, 3 Phase, 60 Hz, 230/460V, 900 RPM
Get it by Tuesday, Dec 23
€1,127.67 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Amps | 3.2/1.6A |
| Assembly | 42502 |
| Code | G |
| Design Code | B |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 72% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | Tefc |
| Frame | 145T |
| Frame Length | 6 3/4" |
| Frame Material | Rolled Steel |
| Frame Type | 145T |
| Frequency | 60 Hz |
| Full Load Amps | 3.2/1.6A |
| Grease Type | Polyrex EM |
| Height | 10.63" |
| Hp | 3/4 hp |
| Insulation Class | Class F |
| Ip Code | IP43 |
| Kva Code | G |
| Kw | 0.56 kW |
| Length | 14.63" |
| Lubrication | Polyrex EM |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Reversible |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 900 RPM |
| Nema Design | B, G |
| No. Of Poles | 8 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 0.56 kW |
| Packaging | B |
| Phase | 3 |
| Power Factor | 56 |
| Rpm | 850 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/4" |
| Shaft Type | T |
| Starting Method | Across The Line |
| Thermal Protection | No Protection |
| Type | TF |
| Voltage | 208-230/460V |
| Width | 11 1/4" |
Shipping Info:
| Ship weight (kg) | 18.45 |
| Ship height (cm) | 27 |
| Ship length (cm) | 37.16 |
| Ship width (cm) | 28.58 |
| Country of Origin | US |
Product Details:
- Eff 100%: 72
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6205
- Nameplate: 993500
- Winding: T63831
- GROUP: 3
- Paint: BLUE - LEESON (ENAMEL)
- S. F Amps: 3.4 / 1.7
Product Variants
| Product | Model | Voltage | Nameplate Rpm | Hp | Frequency | Full Load Amps | Motor Type | Service Factor | Motor Enclosure Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
100905.00 | 208-230/460V | 3600 RPM | 1/2 hp | 60 Hz | 1.8/0.9A | Squirrel Cage Induction Run | 1 | Totally Enclosed Fan Cooled | €394.42 | |
 |
100961.00 | 208-230/460V | 1800 RPM | 1/2 hp | 60 Hz | 1.9-2/1A | Squirrel Cage Induction Run | 1.15 | Totally Enclosed Fan Cooled | €495.85 | |
 |
101647.00 | 208-230/460V | 1800 RPM | 33/100 hp | 60 Hz | 1.5-1.6/0.8A | Squirrel Cage Induction Run | 1.15 | Totally Enclosed Fan Cooled | €658.17 | |
 |
103020.00 | 208-230/460V | 1800/1500 RPM | 1/2 hp | 60 Hz | 1.8/0.9A | Squirrel Cage Induction Run | 1.25 | Totally Enclosed Fan Cooled | €606.73 | |
 |
114618.00 | 208-230/460V | 900 RPM | 1/2 hp | 60 Hz | 3/1.5A | Squirrel Cage Induction Run | 1.15 | Totally Enclosed Fan Cooled | €1,507.33 | |
 |
116739.00 | 208-230/460V | 1800/1500 RPM | 3/4 hp | 60 Hz | 2.4/1.2A | Squirrel Cage Induction Run | 1.25 | Totally Enclosed Fan Cooled | €595.13 | |
 |
116758.00 | 230/460V | 3600/3000 RPM | 1 1/2 hp | 60 Hz | 4/2A | Squirrel Cage Induction Run | 1.25 | Totally Enclosed Fan Cooled | €772.10 |
