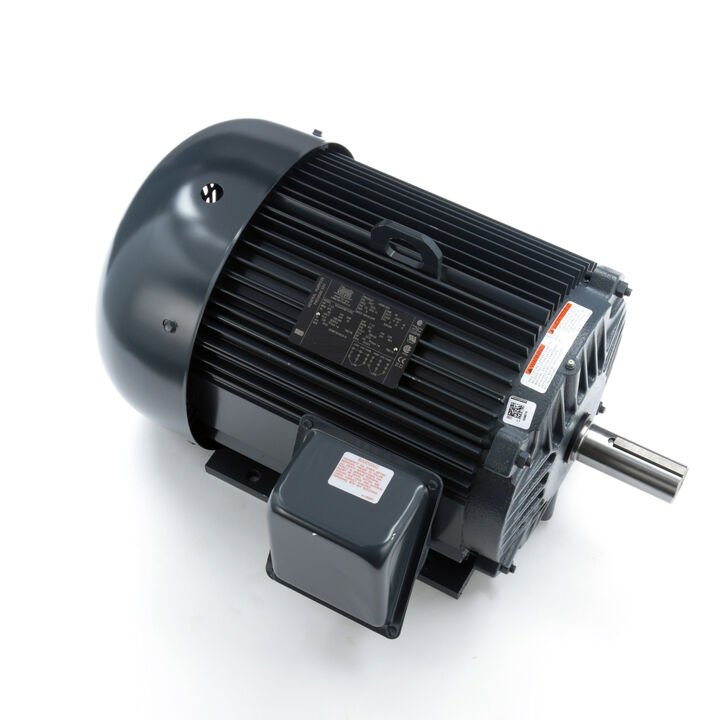

MARATHON MOTORS LM15672 AAF6B7.5T61 General Purpose Motor, 7.50 HP, 3 Phase, 60/50 Hz, 230/460 and 208/415V, 1200 and 1000 RPM
Get it by Wednesday, Feb 25
€2,579.06 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Amps | 19.8/9.9A |
| Assembly/box Mounting | F1, F2 Capable |
| Cc Number | CC004A |
| Code | H |
| Curvepoint | 2/3 |
| Design Code | B |
| Drive End Bearing Size | 309 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 91% |
| Efficiency @ 100% | 91% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | Tefc |
| Frame | 254T |
| Frame Length | 12" |
| Frame Material | Aluminum |
| Frame Size | 254T |
| Frame Suffix | T |
| Frequency | 50/60 Hz |
| Full Load Amps | 11/22A |
| Hazardous Location | Not Available |
| Hp | 7 1/2 hp |
| Insulation Class | Class F |
| Ip Code | 43 |
| Kw | 5.6 kW |
| Load | 0.75 |
| Lubrication | Standard |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | Reversible |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Rigid |
| Nameplate Rpm | 1200/1000 RPM |
| Nema Design | B, H |
| No. Of Poles | 6 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 208 |
| Opp. Drive End Bearing Type | Ball |
| Outline | B-SS321100LN-1200 |
| Output Kw | 5.6 kW |
| Overall Length | 23 2/5" |
| Packaging | B |
| Paint | Standard |
| Phase | 3 |
| Power Factor | 78 |
| Resistance Main | 1.319 ohms |
| Rotation Type | Reversible |
| Rpm | 1100-1200 RPM |
| Service Factor | 1.25 |
| Service Factor Amps | 12.5/25A |
| Shaft Dia. | 1 5/8" |
| Shaft Length | 4" |
| Shaft Type | T |
| Speed Range | Not Available |
| Starting Method | Across The Line |
| Synchronous Rpm | 1200/1000 RPM |
| Thermal Protection | No Protection |
| Torque | 77 lbs.-ft. |
| Torquepct | 230 |
| Type | TFL |
| Voltage | 230/460V |
| Winding | 254653 |
Shipping Info:
| Ship weight (kg) | 94.05 |
| Ship height (cm) | 20.62 |
| Ship length (cm) | 41.61 |
| Ship width (cm) | 26.67 |
| Country of Origin | US |
Product Details:
- Eff 75%: 91
- Bearing OPE: 208
- CC Number: CC004A
- Bearing PE: 309
- Winding: 254653
- GROUP: 6
- Paint: VERIFY
- S. F Amps: 24 / 12
- Eff 100%: 91 / 89.5
