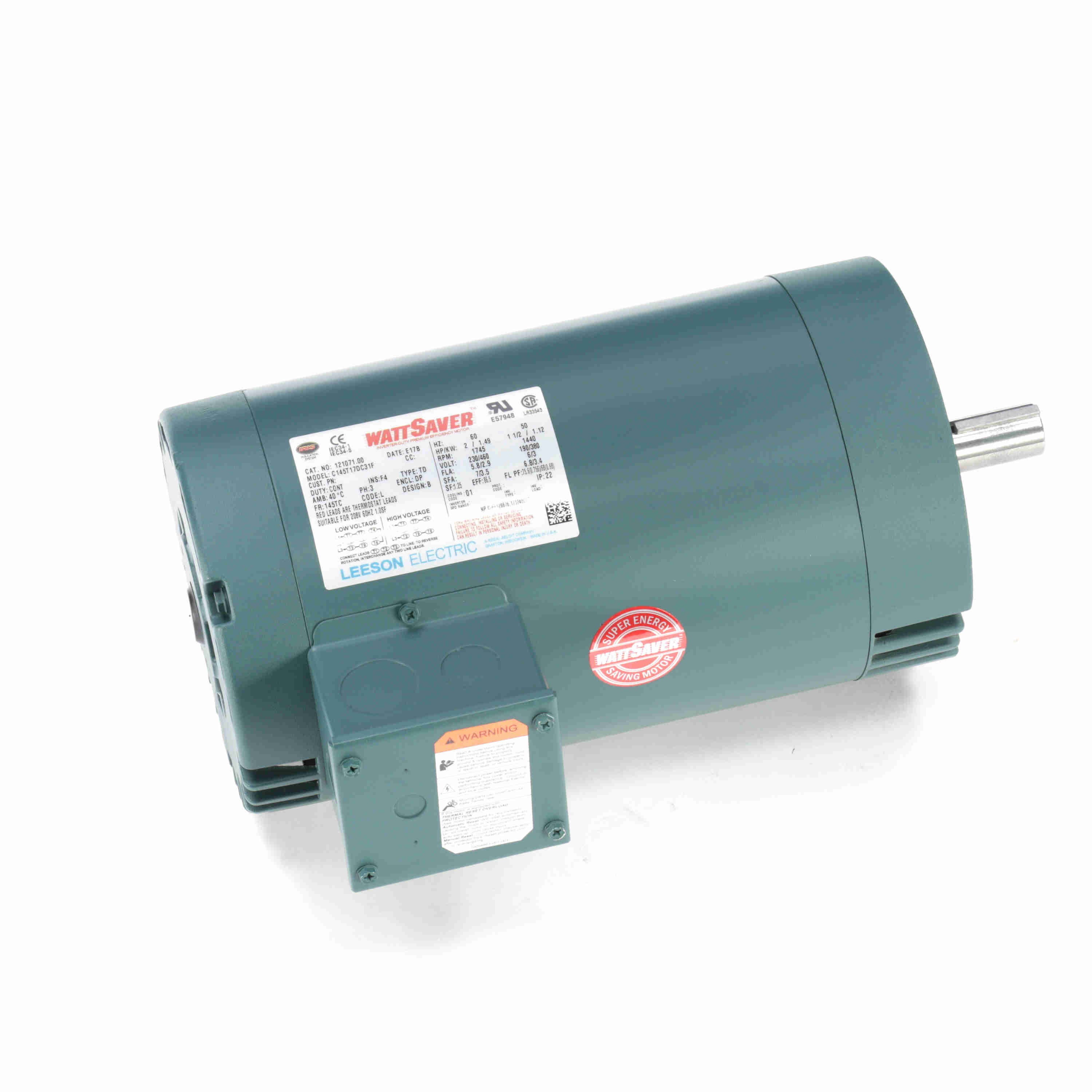

LEESON 121071.00 C145T17DC31F General Purpose Motor, 2/1.50 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 RPM
Get it by Monday, Dec 22
10.00% off
€1,234.05 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Amps | 5.8/2.9A |
| Code | L |
| Conduit Box Position | F1 |
| Design Code | B |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | ODP |
| Frame | 145TC |
| Frame Length | 8 1/2" |
| Frame Material | Rolled Steel |
| Frame Type | 145TC |
| Frequency | 60 Hz |
| Full Load Amps | 6-5.8/2.9A |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 2 hp |
| Insulation Class | Class F |
| Ip Code | IP22 |
| Kva Code | L |
| Kw | 1.5 kW |
| Length | 19 1/2" |
| Lubrication | Polyrex EM |
| Max. Rpm | 1745 RPM |
| Motor Enclosure Design | Dripproof |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | Reversible |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | C Face, Footless |
| Nameplate Rpm | 1800/1500 RPM |
| Nema Design | B, L |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 1.49/1.12 kW |
| Packaging | B |
| Phase | 3 |
| Power Factor | 75.6 |
| Resistance Main | 1.5 ohms |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.25 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/4" |
| Shaft Type | T |
| Starting Method | Across The Line |
| Thermal Protection | Thermostat |
| Type | TD |
| Voltage | 230/460V |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 19.8 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- Supersedes Leeson - G120035.00 / C145T17DC41A
- Eff 100%: 86.5
- Bearing OPE: 6203
- CC Number: CC005A
- Bearing PE: 6205
- Nameplate: 993500
- Winding: T634340
- GROUP: 3
- Paint: GREEN - LEESON WATTSAVER
- S. F Amps: 7.2-7 / 3.5
Product Variants
| Product | Model | Motor Enclosure Design | Voltage | Nameplate Rpm | Hp | Frequency | Full Load Amps | Mounting Type | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
131518.00 | Dripproof | 230/460V AC | 1800/1500 RPM | 3 hp, 2 hp | 50/60 Hz | 8/4A | C Face, Footless | Squirrel Cage Induction Run | - | RFQ
|
 |

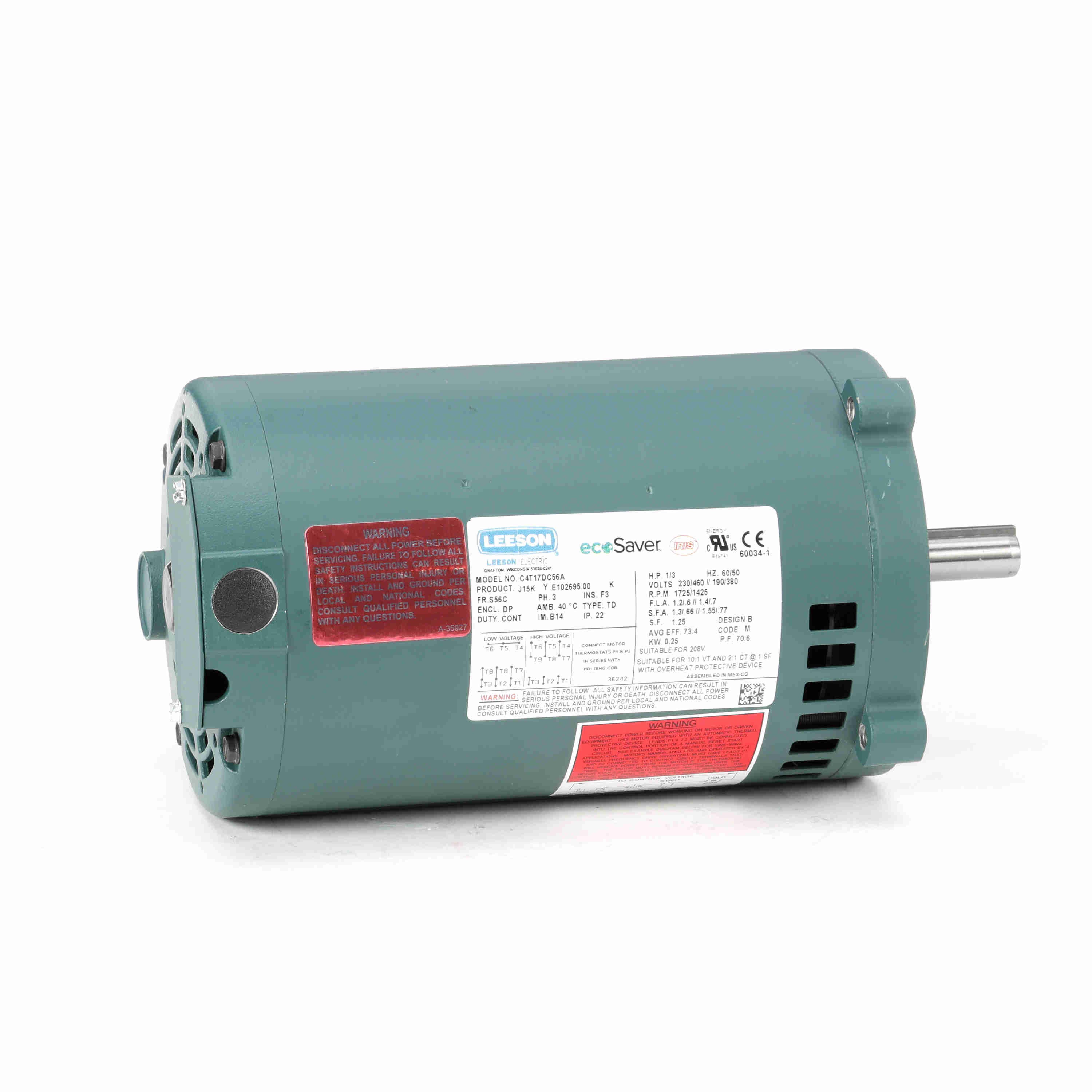

E102695.00 | Dripproof | 230/460V AC | 1800/1500 RPM | 33/100 hp | 50/60 Hz | 1.2/0.6A | Round, C Face Footless | Squirrel Cage Inverter Rated | €427.32 | |
 |

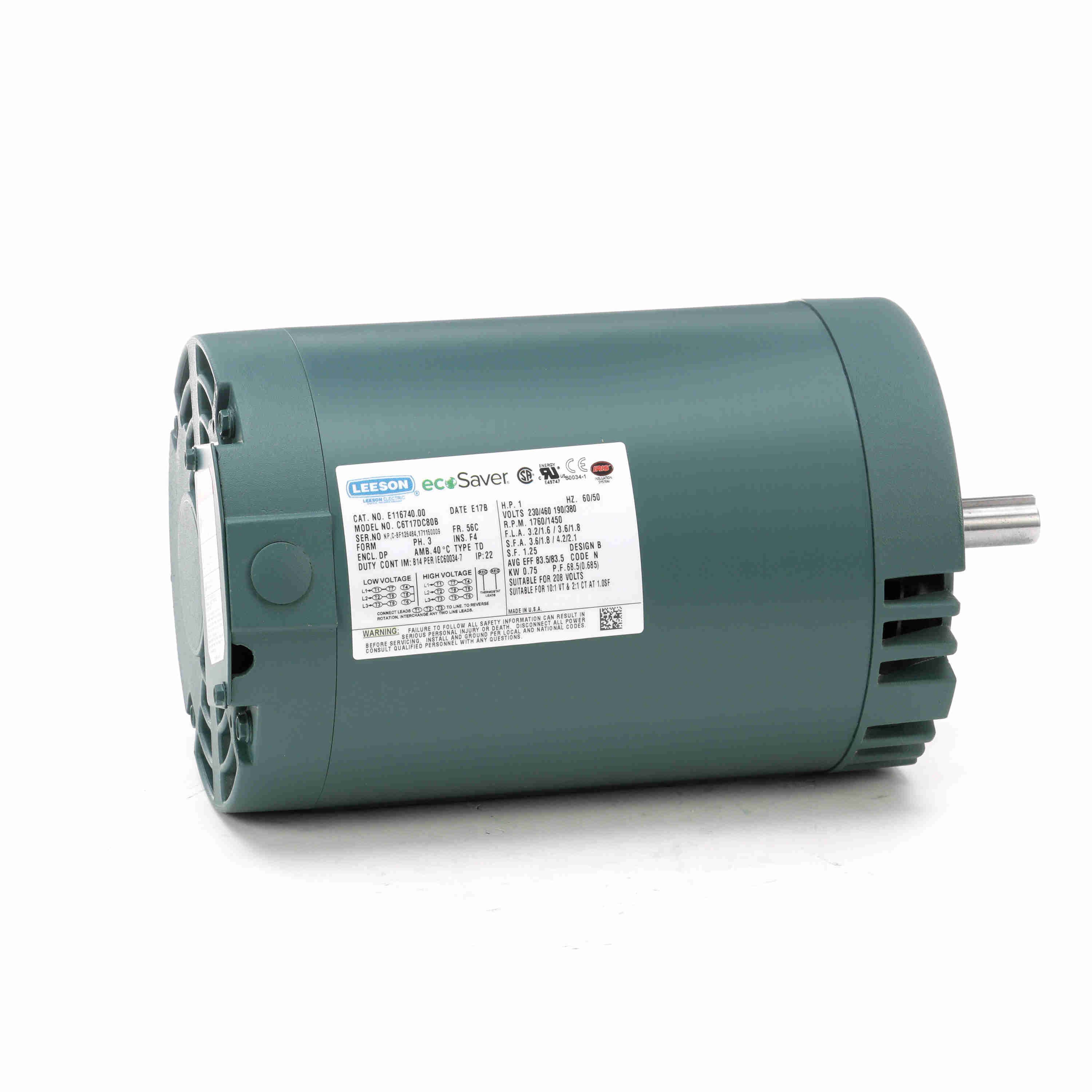

E116740.00 | Open Dripproof | 230/460V AC | 1760 RPM | 1 hp | 50/60 Hz | 3.2/1.6A | Round, C Face Footless | Three Phase | €706.28 |
