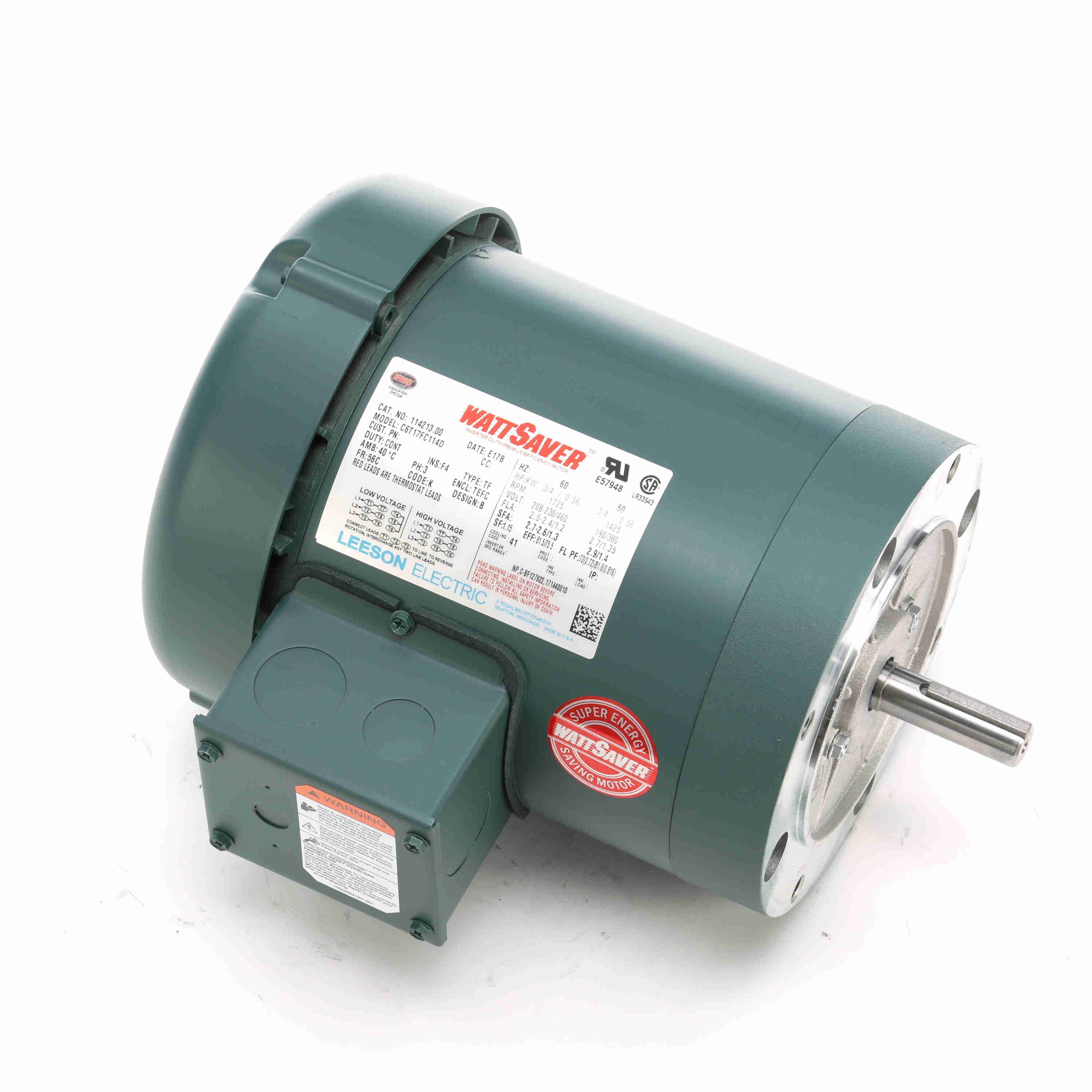

LEESON 114213.00 C6T17FC114D General Purpose Motor 50-60 Hertz | AJ2QNH C6T17FC114D

LEESON 114213.00 C6T17FC114D General Purpose Motor, 0.75 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 and 1500 RPM

Item: AJ2QNHModel: 114213.00Cross Ref: 798KK3 / C6T17FC114D
Check Availability
In Stock
HP
Frame

Get it by Monday, May 25

€650.16 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Ambient Temp. 104°F
Amps 2.4/1.2A
Bearing Type Ball
Code K
Conduit Box Position F1
Design Code B
Drive End Bearing Size 6203
Drive End Bearing Type Ball
Duty Cycle Continuous
Efficiency 81.5%
Electrical Type Squirrel Cage, Inverter Rated
Enclosure Type Tefc
Frame 56C
Frame Length 5 1/2"
Frame Material Rolled Steel
Frame Type 56C
Frequency 60 Hz
Full Load Amps 2.5-2.4/1.2A
Grease Type Polyrex EM
Height 10 22/25"
Hp 3/4 hp
Insulation Class Class F
Inverter Rated Yes
Ip Code IP43
Kva Code K
Kw 0.56 kW
Length 14 11/25"
Lubrication Polyrex EM
Max. Rpm 1725 RPM
Motor Application General Application
Motor Enclosure Design Totally Enclosed Air Over
Motor Mounting Position Horizontal
Motor Orientation Horizontal
Motor Shaft Design NEMA 56
Motor Shaft Rotation Clockwise, Counter Clockwise
Motor Shaft Rotation Reversible
Motor Type Three Phase
Mounting Type Face
Nameplate Rpm 1725 RPM
Nema Design B, K
No. Of Poles 4
No. Of Speeds 1
Opp. Drive End Bearing Size 6203
Opp. Drive End Bearing Type Ball
Output Kw 0.56 kW
Overall Length 11"
Packaging B
Phase 3
Power Factor 72
Resistance Main 5.72 ohms
Rpm 1700-1800 RPM
Rpm Range 1701-1800 RPM
Service Factor 1.15
Shaft Dia. 5/8"
Shaft Length 1 22/25"
Shaft Type NEMA 56
Starting Method Line Or Inverter
Thermal Protection Thermostat
Type TF
Usable @ 208v Yes
Voltage 208-230/460V
Width 10 11/25"

Shipping Info:

Ship weight (kg) 13.05
Ship height (cm)27.64
Ship length (cm)36.68
Ship width (cm)26.52
Country of OriginUS

Product Details:

    • Bearing OPE: 6203
    • CC Number: EXEMPT
    • Bearing PE: 6203
    • Nameplate: 993500
    • Winding: T634302
    • GROUP: 3
    • Paint: GREEN - LEESON WATTSAVER
    • S. F Amps: 2.7-2.6 / 1.3
    • Eff 100%: 81.5 / 75.5
