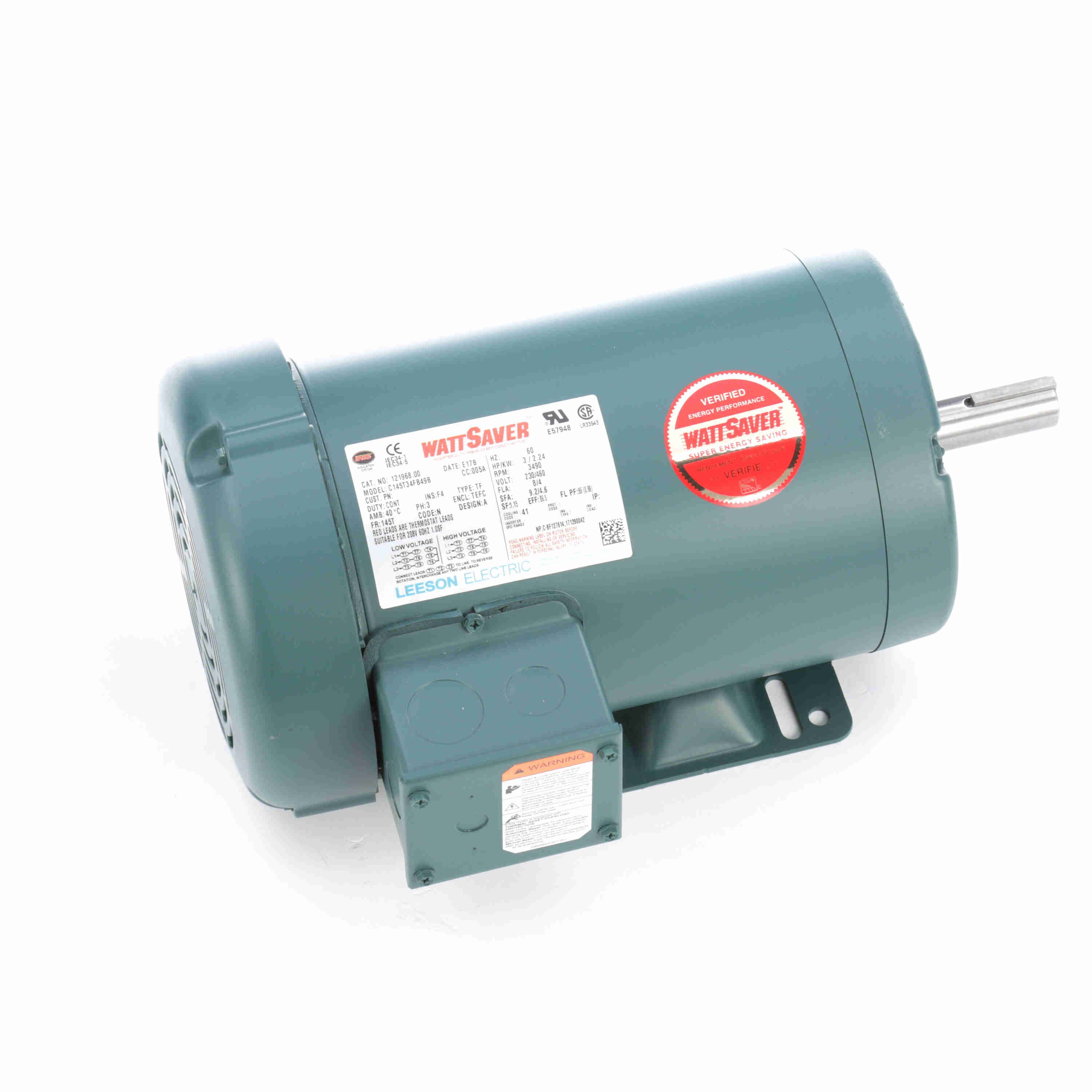

LEESON 121968.00 C145T34FB49B General Purpose Motor, 3 HP, 3 Phase, 60 Hz, 230/460V, 3600 RPM
Get it by Tuesday, May 19
5.00% off
€1,632.23 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 104°F |
| Amps | 8/4A |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Code | N |
| Design Code | A |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | Tefc |
| Frame | 145T |
| Frame Length | 8" |
| Frame Material | Rolled Steel |
| Frame Type | 145T |
| Frequency | 60 Hz |
| Full Load Amps | 8/4A |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 3 hp |
| Hz | 60 Hz |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Ip Code | IP43 |
| Kva Code | No |
| Kw | 2.2 kW |
| Length | 19 1/2" |
| Lubrication | Polyrex EM |
| Max. Ambient Temp. | 40°C |
| Max. Rpm | 3490 RPM |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Orientation | Horizontal |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | T |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | Reversible |
| Motor Thermal Protection | T Stat |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3600 RPM |
| Nema Design | A |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 86.5% |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 2.24 kW |
| Overall Length | 13 15/16" |
| Packaging | None |
| Phase | 3 |
| Power Factor | 86 |
| Removable Base | Permanently Lubricated Bearings |
| Resistance Main | 3.83 ohms |
| Rpm | 3400-3600 RPM |
| Rpm Range | 3001-3600 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/4" |
| Shaft Type | T |
| Standards | Csa, Ul |
| Starting Method | Across The Line |
| Thermal Protection | Thermostat |
| Type | TF |
| Voltage | 230/460V |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 21.6 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- Supersedes Leeson - 122026.00 / C145T34FB50A, G120185.00
- Eff 100%: 86.5
- Bearing OPE: 6203
- CC Number: CC005A
- Bearing PE: 6205
- Nameplate: 993500
- Winding: T632209
- GROUP: 3
- Paint: GREEN - LEESON WATTSAVER
- S. F Amps: 9.2 / 4.6
Product Variants
| Product | Model | Motor Enclosure Design | Voltage | Phase | Nameplate Rpm | Hp | Full Load Amps | Mounting Type | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
101780.00 | Totally Enclosed Fan Cooled | 208-230/460V | 3 | 1800/1500 RPM | 1/2 hp | 1.8/0.9A | C Face, Footless | Squirrel Cage Induction Run | €604.30 | |
 |
113768.00 | Totally Enclosed Fan Cooled | 115/208-230V | 1 | 1800 RPM | 1 hp | 8.4/4.3-4.2A | Rigid Base | Capacitor Start | €1,294.19 | |
 |
113769.00 | Totally Enclosed Fan Cooled | 115/208-230V | 1 | 1800 RPM | 1 1/2 hp | 13/6.5A | Rigid Base | Capacitor Start | €961.49 | |
 |
113770.00 | Totally Enclosed Fan Cooled | 230V | 1 | 1800 RPM | 2 hp | 8.2A | Rigid Base | Capacitor Start | €1,321.91 | |
 |
114213.00 | Totally Enclosed Air Over | 208-230/460V | 3 | 1725 RPM | 3/4 hp | 2.5-2.4/1.2A | Face | Three Phase | €650.16 | |
 |
116758.00 | Totally Enclosed Fan Cooled | 230/460V | 3 | 3600/3000 RPM | 1 1/2 hp | 4/2A | Rigid Base | Squirrel Cage Induction Run | €772.10 | |
 |
121071.00 | Dripproof | 230/460V | 3 | 1800/1500 RPM | 2 hp | 6-5.8/2.9A | C Face, Footless | Squirrel Cage Induction Run | €1,371.17 |
