Threaded Body Cylinders

Filter

ENERPAC -

CST Series Hydraulic Cylinders

StyleModelRetracted HeightStrokeOutside Dia.Dimension ADimension D1Dimension EDimension FDimension TPrice
ACST2711.65"7/25"1/2"-----€280.46
BCST4711.87"7/25"3/4"-----€252.24
CCST91312 1/2"0.51"1"3.02"22/25"0.39"0.79"0.39"€349.01
DCST181312 3/4"0.51"1.3125"3.26"1.22"0.63"1.06"0.47"€376.98
ECST21312.03"0.51"1/2"-----€297.04
FCST41312.21"0.51"-2.71"0.69"0.27"0.62"7/25"€310.30
GCST9712.26"7/25"1"2.54"22/25"0.39"0.79"0.39"€358.94

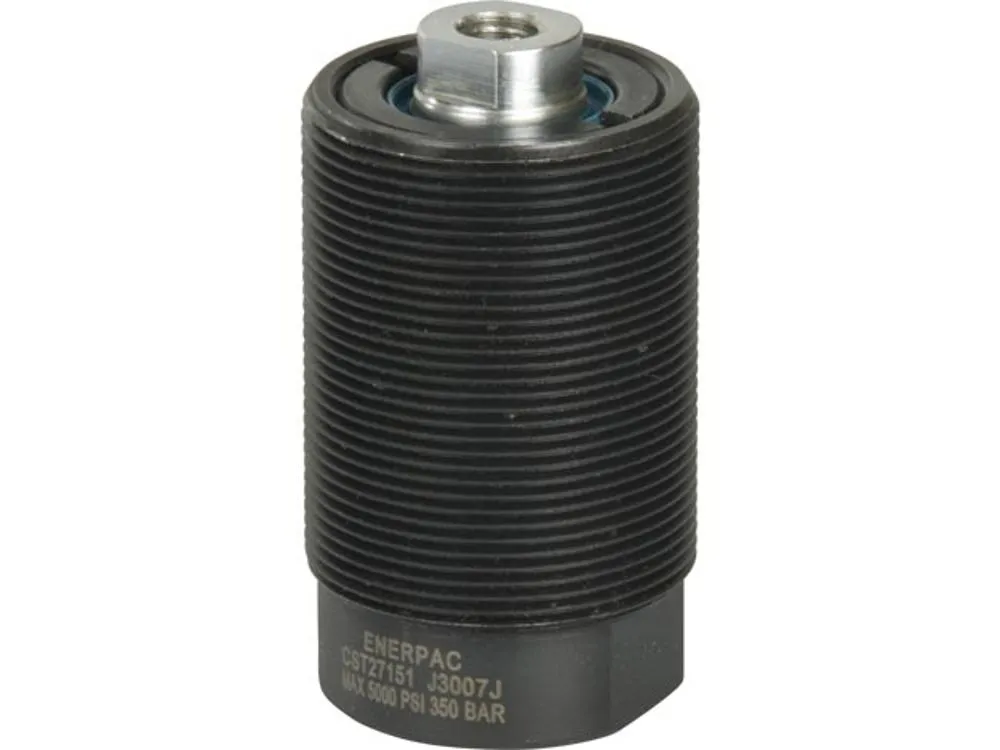

HCST271512.87"0.59"1.625"3.46"1 13/25"0.71"1.38"0.47"€444.98
ICST401312.94"0.51"1.625"3 13/25"1.79"0.78"1.63"0.47"€485.14
DCST182513 13/25"0.98"1.3125"4 1/2"1.22"0.63"1.06"0.47"€480.62

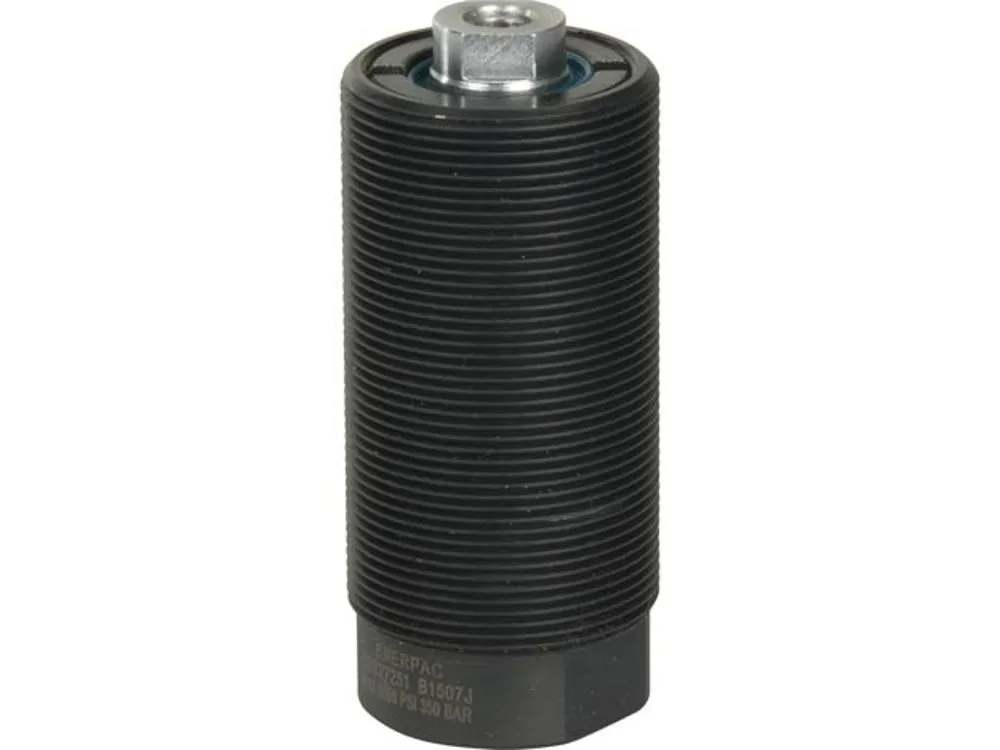

JCST272513 17/25"0.98"1.625"4.66"1 13/25"0.71"1.38"0.47"€459.72
KCST92513.42"0.98"1"4.46"22/25"0.39"0.79"0.39"€364.61

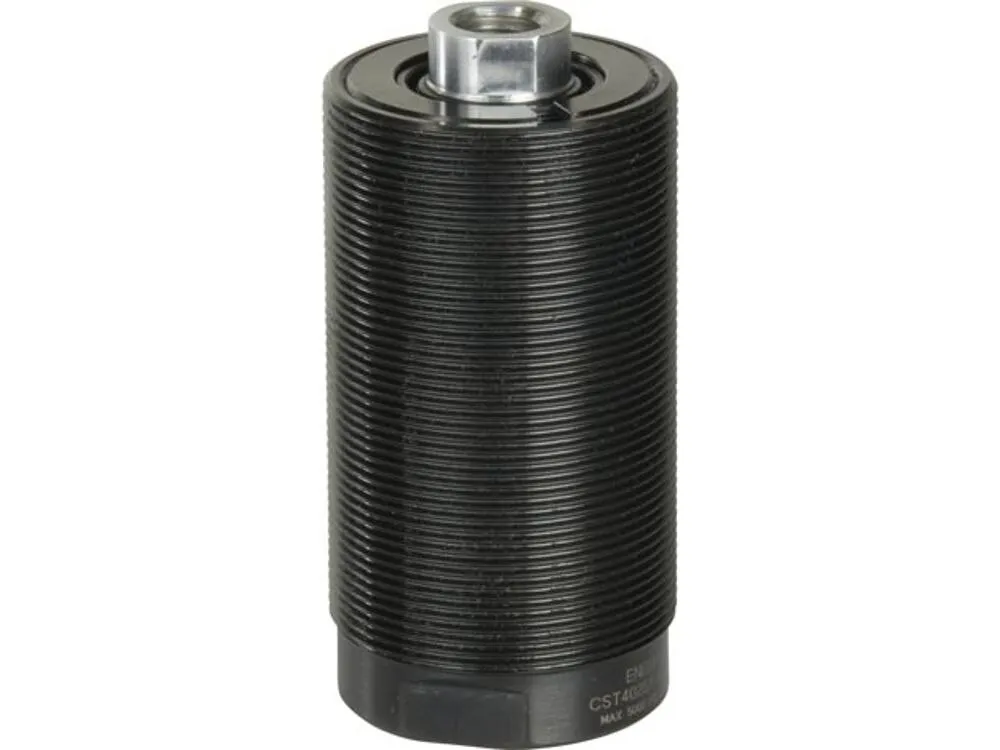

LCST402513.73"0.98"1.875"4.78"1.79"0.78"1.63"0.47"€541.63
ENERPAC -

CSM Series Hydraulic Cylinders

StyleModelRetracted HeightStrokeSeal MaterialDimension ADimension D1Dimension EDimension TMax. Cylinder Capacity AdvancePrice
ACSM2711.33"7/25"Buna N, Polyurethane1.61"0.47"0.19"0.19"380 lbs.€231.42
BCSM21311.71"0.51"Polyurethane, Buna N2.22"0.47"0.19"0.19"380 lbs.€240.24
CCSM5711.74"7/25"Polyurethane, Buna N2.02"0.69"0.31"7/25"1190 lbs.€267.03
DCSM10711.87"7/25"Polyurethane, Buna N2.15"0.94"0.47"8/25"2590 lbs.€429.57
ECSM51312.07"0.51"Polyurethane, Buna N2.58"0.69"0.31"7/25"1190 lbs.€310.69
FCSM101312.14"0.51"Polyurethane, Buna N2 14/25"0.94"0.47"0.31"2590 lbs.€339.02
ENERPAC -

CDT Series Hydraulic Cylinders

StyleModelRetracted HeightOutside Dia.StrokeDimension ADimension D1Dimension EDimension FMax. Cylinder Capacity AdvancePrice
ACDT271512 4/5"2.5"0.59"3.37"2.02"0.71"1.87"6110 lbs.€624.32
BCDT181312 17/25"1.875"0.51"3.19"1.73"0.63"1.61"3900 lbs.€503.51
CCDT182513.23"1.875"0.98"4.21"1.73"0.63"1.61"3900 lbs.€549.46
DCDT272513.23"2.5"0.98"4 1/5"2.02"0.71"1.87"6110 lbs.€715.54

Threaded Body Cylinders

Enerpac threaded body cylinders are used with a manifold or fixture plate for clamping, supporting or ejecting workpieces in high-pressure applications. They feature a threaded body to ensure correct positioning & smooth installation. They are equipped with tapped plungers that allow pads & extensions to be attached for protection of workpieces and providing extra clamping support. These steel cylinders come integrated with polyurethane / Buna N seals for excellent resistance to alcohols, petroleum-based oils & silicone greases, and can handle pressures ranging from 580 to 5000 psi. Choose from a wide range of these threaded body cylinders, available in stroke lengths of 0.28, 0.51, 0.59 & 0.98 inches.
