LEESON 119436.00 A6T34XK25A General Purpose Motor 50-60 Hertz | AJ2RBW A6T34XK25A

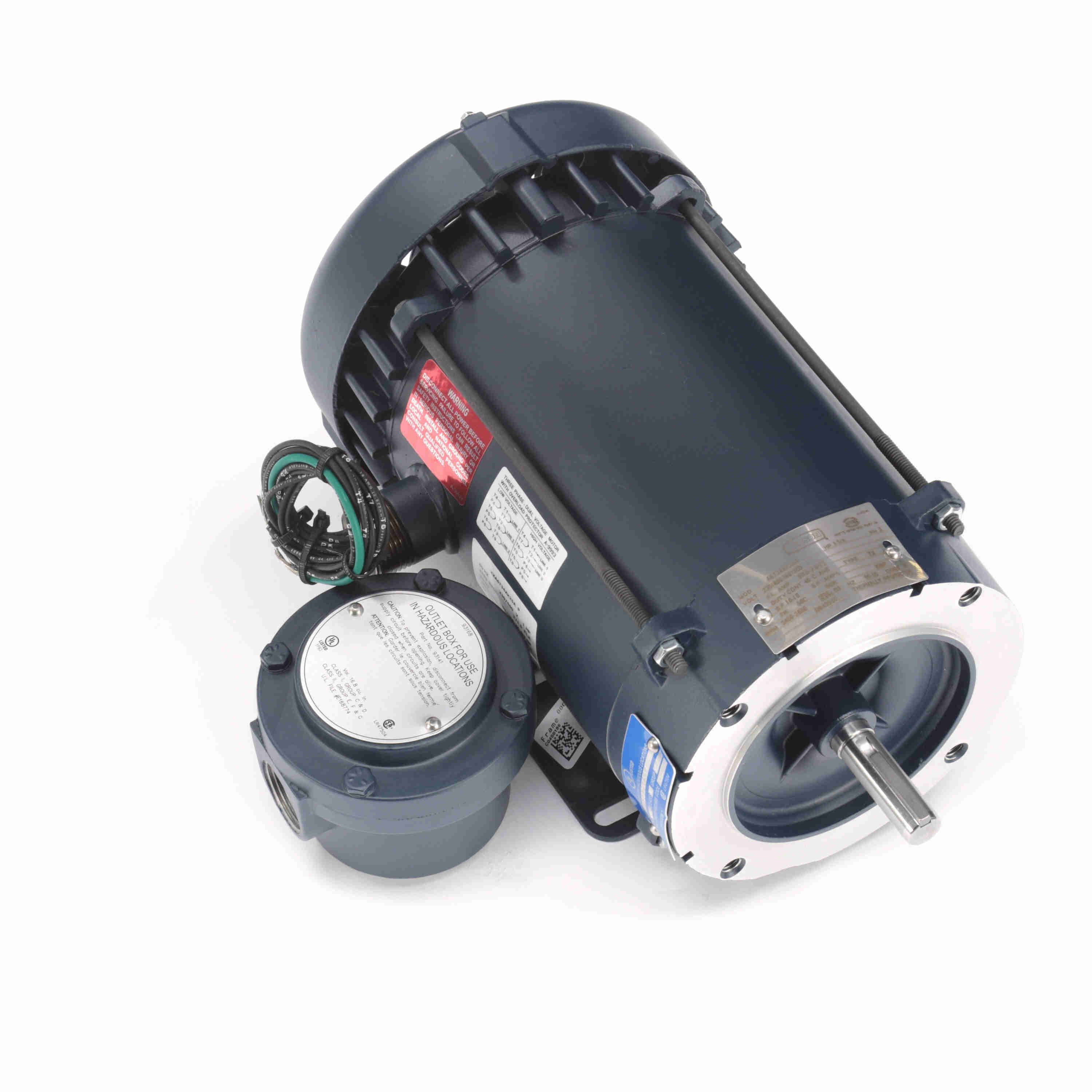

LEESON 119436.00 6T34XK25A Explosion Proof Motor, 1/0.75 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 3600 RPM

Item: AJ2RBWModel: 119436.00Cross Ref: 820J78 / 6T34XK25A
Check Availability
In Stock

Get it by Wednesday, Dec 24

€1,264.72 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Explosion Proof Motor
Ambient Temp. 40°C
Amps 3/1.5A
Code K
Design B
Drive End Bearing Size 6203
Drive End Bearing Type Ball
Duty Cycle Continuous
Efficiency 80%
Electrical Type Squirrel Cage, Induction Run
Enclosure Type EPFC
Frame 56C
Frame Length 6.81"
Frame Material Rolled Steel
Frame Type 56C
Frequency 60 Hz
Full Load Amps 3/1.5A
Grease Type Polyrex EM
Hazardous Location Div 1 Exp Proof Cl I Gr Cd Cl Ii Gr Fg T3C
Hazardous Location Class 1C, D/2F, G
Height 8 3/25"
Hp 1 hp
Insulation Class Class B
Ip Code IP54
Kva Code K
Kw 0.75 kW
Length 16 3/25"
Lubrication Polyrex EM
Max. Rpm 3450 RPM
Motor Mounting Type Rigid Base
Motor Orientation Horizontal
Motor Shaft Rotation Reversible
Motor Type Squirrel Cage Induction Run
Mounting Type Rigid Base
Nameplate Rpm 3600/3000 RPM
No. Of Poles 2
No. Of Speeds 1
Opp. Drive End Bearing Size 6203
Opp. Drive End Bearing Type Ball
Output Rating 0.75 kW
Packaging F
Phase 3
Power 0.75 kW
Power Factor 83.5
Resistance Main 19.5 ohms
Rpm 3400-3600 RPM
Service Factor 1
Shaft Dia. 5/8"
Shaft Length 1 22/25"
Shaft Type NEMA 56
Starting Method Across The Line
Temp. Code T3C
Thermal Protection Automatic
Type TX
Voltage 230/460V
Width 10.25"

Shipping Info:

Ship weight (kg) 17.1
Ship height (cm)20.62
Ship length (cm)40.94
Ship width (cm)26.04
Country of OriginMX

Product Details:

    • Supersedes Leeson - 114631.00 / A6T34XK3C
    • Eff 75%: 78
    • Bearing OPE: 6203
    • CC Number: EXEMPT
    • Bearing PE: 6203
    • Nameplate: 92340
    • Winding: ZT270
    • GROUP: 1
    • Paint: BLUE (POWDER)
    • Eff 100%: 80 / 81.5

Product Variants

ProductModelVoltageHpFrameNameplate RpmFrame MaterialService FactorEnclosure TypeNo. Of PolesPrice
LEESON 114626.00 A6T17EK7C Explosion Proof Motor 50-60 Hertz | AJ2QPP A6T17EK7C 114626.00208-230/460V33/100 hp56C1800/1500 RPMRolled Steel1EPNV4€1,537.76
LEESON 114628.00 A6T17EK8C Explosion Proof Motor 50-60 Hertz | AJ2QPQ A6T17EK8C 114628.00208-230/460V1/2 hp56C1800/1500 RPMRolled Steel1EPNV4€1,575.03
LEESON 114630.00 A6T17XK11C Explosion Proof Motor 50-60 Hertz | AJ2QPT A6T17XK11C 114630.00208-230/460V3/4 hp56C1800/1500 RPMRolled Steel1EPFC4€1,722.65
LEESON 116190.00 C6T17XK23B General Purpose Motor | AJ2QRF C6T17XK23B 116190.00208-230/460V1/2 hp56C1800 RPMRolled Steel1EPFC4€1,088.81
LEESON 116191.00 C6T17XK24B General Purpose Motor | AJ2QRG C6T17XK24B 116191.00208-230/460V3/4 hp56C1800 RPMRolled Steel1EPFC4€1,834.59
LEESON 117859.00 C6T17EK11A Explosion Proof Motor 50-60 Hertz | AJ2QZC C6T17EK11A 117859.00208-230/460V33/100 hp56C1800/1500 RPMRolled Steel1EPNV4€1,024.61
LEESON 119437.00 A6T17XK23A General Purpose Motor 50-60 Hertz | AJ2RBX A6T17XK23A 119437.00230/460V1 hp56C-Rolled Steel1EPFC4€2,040.14
