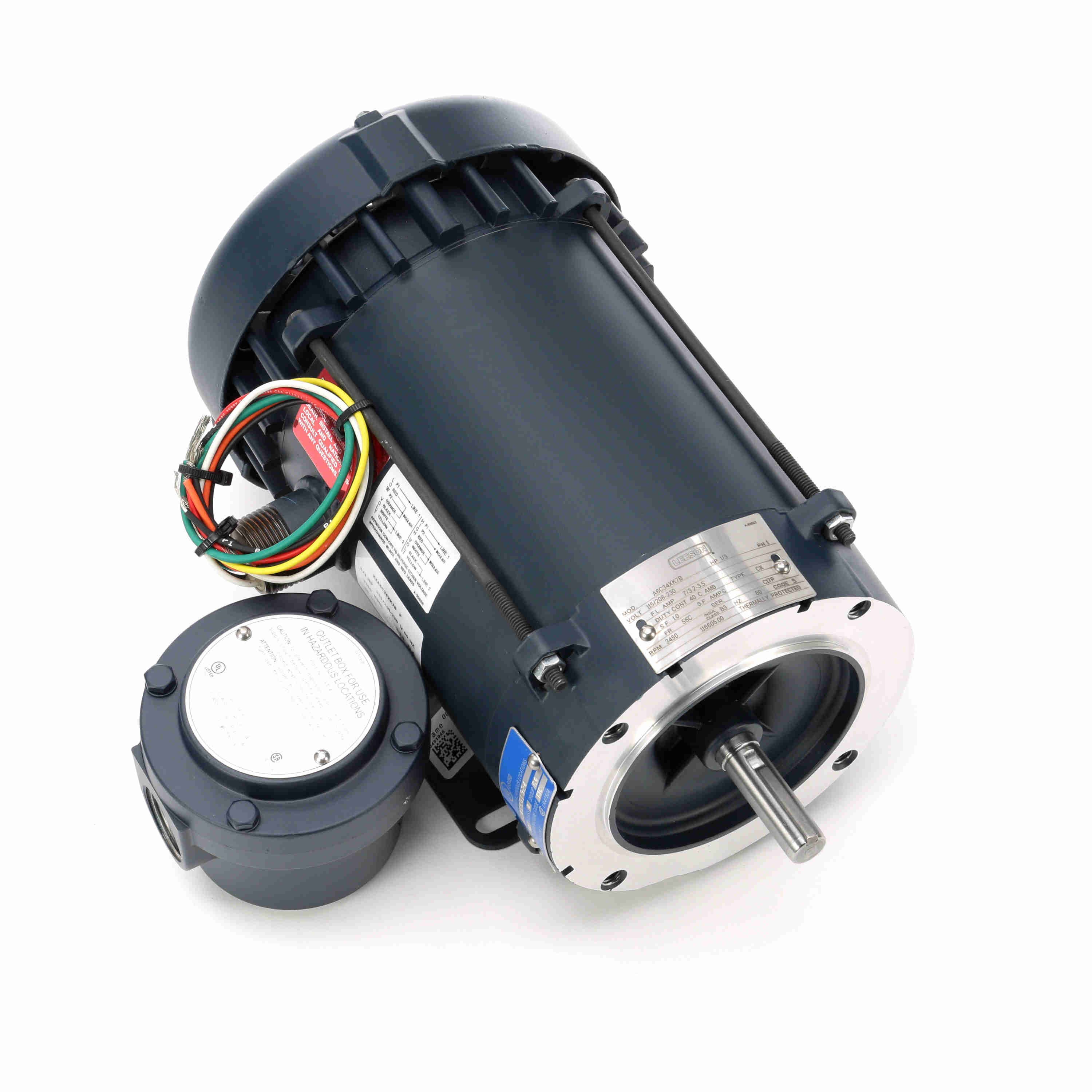

LEESON 116605.00 6C34XK7B Explosion Proof Motor, 0.33 HP, 1 Phase, 60 Hz, 115/208-230V, 3600 RPM
Get it by Monday, May 18
5.00% off
€1,405.22 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Explosion Proof Motor |
| Ambient Temp. | 40°C |
| Amps | 7/3.2-3.5A |
| Assembly | A-S90894 |
| Bearing Type | Ball |
| Code | S |
| Design | N |
| Design Code | No |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 50.5% |
| Electrical Type | Capacitor Start, Induction Run |
| Enclosure Type | EPFC |
| Frame | 56C |
| Frame Length | 6.31" |
| Frame Material | Rolled Steel |
| Frame Type | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 7/3.2-3.5A |
| Grease Type | Polyrex EM |
| Hazardous Location | Div 1 Exp Proof Cl I Gr Cd Cl Ii Gr Fg T3C |
| Hazardous Location Class | 1 C, D / 2 F, G |
| Hazardous Location Division | Division 1 |
| Height | 10 22/25" |
| Hp | 33/100 hp |
| Hz | 60 Hz |
| Includes | Explosion Proof Conduit Box, Shipped Loose |
| Ins. Class | Class B |
| Insulation Class | Class B |
| Ip Code | IP54 |
| Kva Code | S |
| Kw | 0.25 kW |
| Length | 19 1/2" |
| Lubrication | Polyrex EM |
| Max. Ambient Temp. | 104°F |
| Max. Rpm | 3450 RPM |
| Motor Application | Hazardous Location |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Orientation | Horizontal |
| Motor Service Factor | 1 |
| Motor Shaft Design | NEMA 56 |
| Motor Shaft Rotation | Counter Clockwise |
| Motor Thermal Protection | Auto |
| Motor Type | Capacitor Start |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3450 RPM |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 50.5% |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Rating | 0.246 kW |
| Overall Length | 13 7/16" |
| Packaging | B |
| Phase | 1 |
| Power | 0.246 kW |
| Power Factor | 58 |
| Product Datasheet | leeson-116605-00.pdf |
| Rpm | 3400-3600 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 22/25" |
| Shaft Type | NEMA 56 |
| Standards | Csa, Ul |
| Starting Method | Across The Line |
| Temp. Code | T3B |
| Thermal Protection | Automatic |
| Type | CX |
| Usable @ 208v | Yes |
| Voltage | 115/208-230V |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 12.6 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | MX |
Product Details:
- Eff 100%: 50.5
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6203
- Winding: ZC280
- GROUP: 3
- Paint: BLUE - LEESON (ENAMEL)
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Frame | Nameplate Rpm | Phase | Motor Application | Motor Mounting Type | Motor Thermal Protection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
056H17E5301 | 230/460V AC | 1/4 hp | 56C | 1725 RPM | 3 | Crane | Rigid Base | Thermostat | €919.47 | |
 |
056H17E5302 | 230/460V AC | 1/3 hp | 56C | 1725 RPM | 3 | Crane | Rigid Base | Thermostat | €1,078.24 | |
 |
056H17E5303 | 230/460V AC | 1/2 hp | 56C | 1725 RPM | 3 | Crane | Rigid Base | Thermostat | €1,371.25 | |
 |
056H17E5304 | 230/460V AC | 3/4 hp | 56C | 1725 RPM | 3 | Crane | Rigid Base | Thermostat | €1,287.06 | |
 |
056H17E5305 | 230/460V AC | 1 hp | 56C | 1725 RPM | 3 | Crane | Rigid Base | Thermostat | €1,409.55 | |
 |
118015.00 | 90V | 33/100 hp | 56C | 1750 RPM | - | Hazardous Location | Face, Base | Auto | €5,029.70 | |
 |
118016.00 | 90V | 1/2 hp | 56C | 1750 RPM | - | Hazardous Location | Face, Base | Auto | €4,540.55 |
