LEESON 119435.00 A6T34XC53A General Purpose Motor 50-60 Hertz | AJ2RBV A6T34XC53A

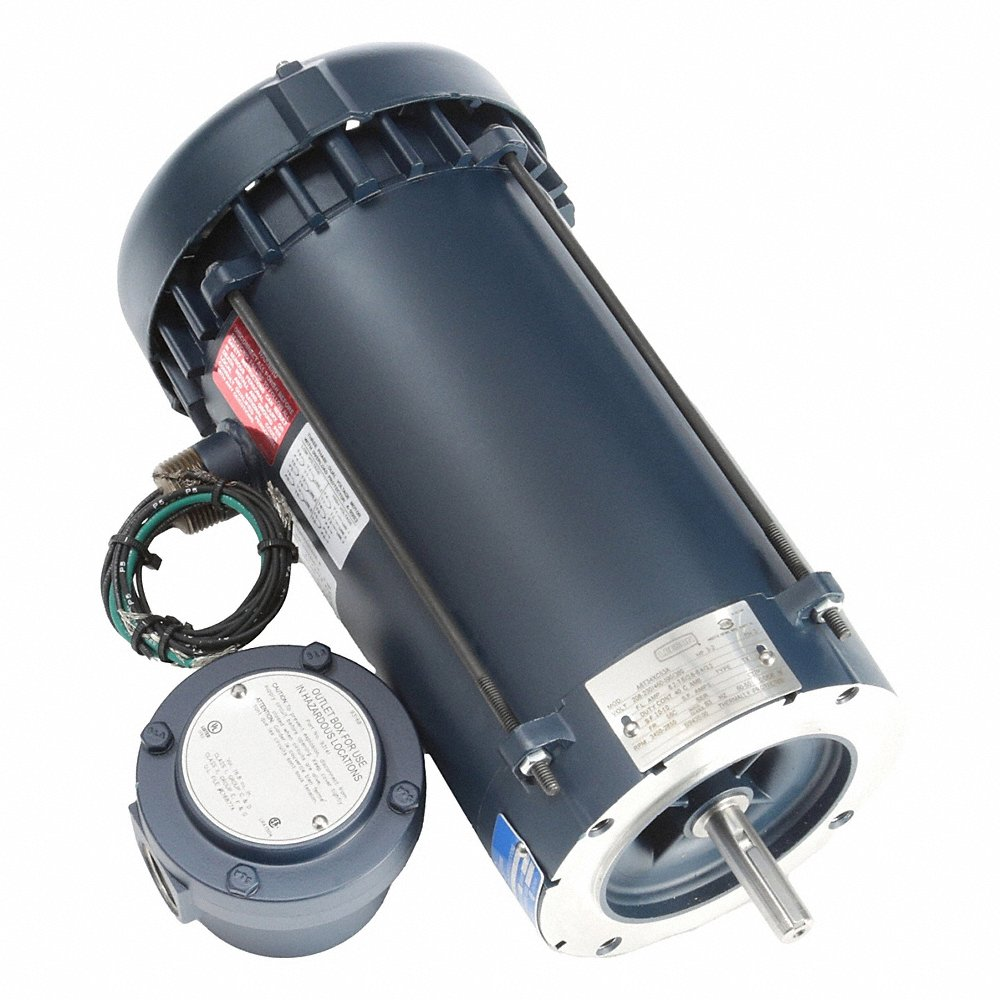

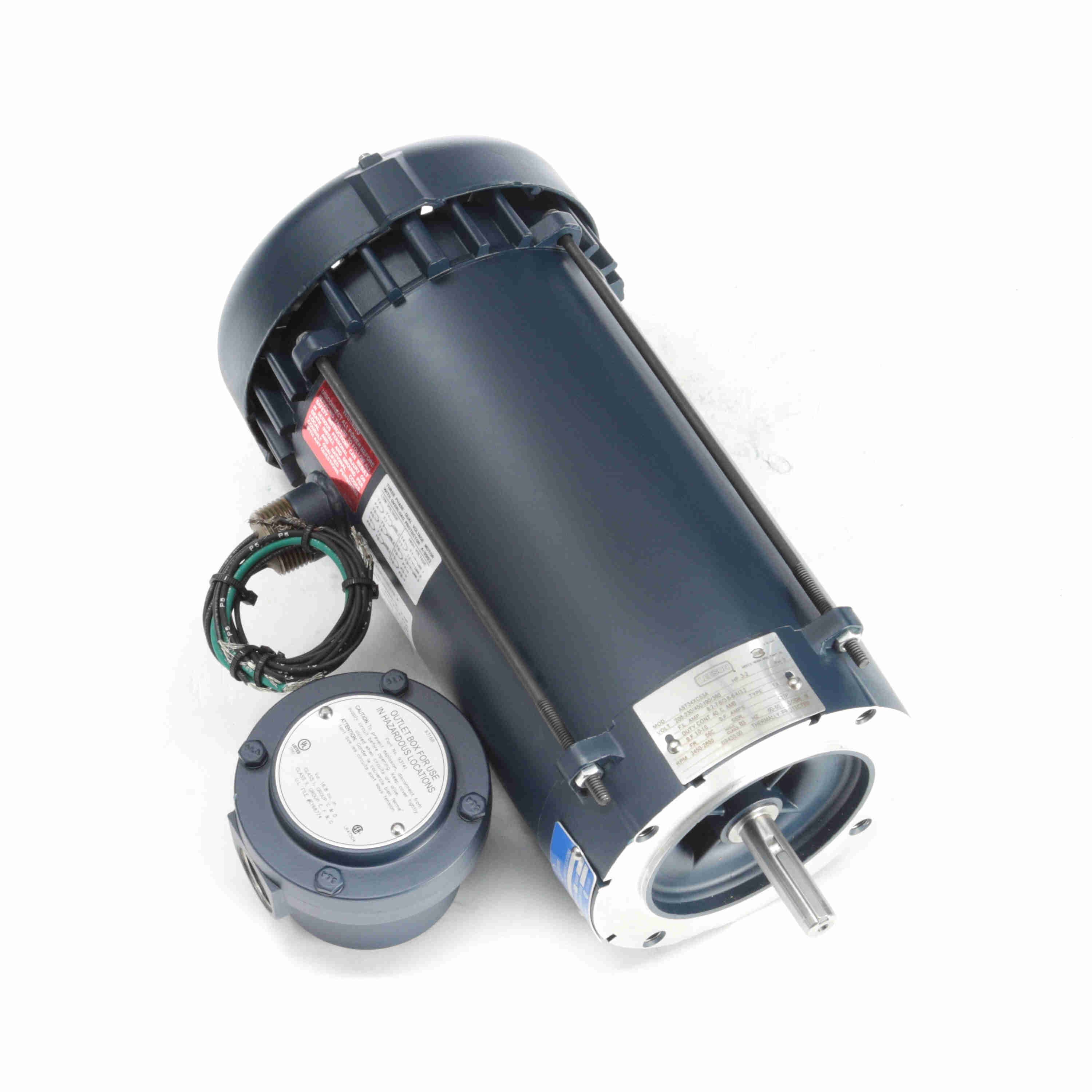

LEESON 119435.00 6T34XC53A Explosion Proof Motor, 3/2 HP, 3 Phase, 60/50 Hz, 208-230/460 and 190/380V, 3600 RPM

Item: AJ2RBVModel: 119435.00Cross Ref: 820GZ6 / 6T34XC53A
Check Availability
In Stock

Get it by Tuesday, Dec 23

€1,567.95 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Explosion Proof Motor
Ambient Temp. 40°C
Amps 7.6-8.2/3.8A
Code M
Conduit Box Position F1
De Bearing Size 6205
De Bearing Type Ball
Design A
Design Code A
Duty Cycle Continuous
Efficiency 87.5%
Electrical Type Squirrel Cage, Induction Run
Enclosure Type EPFC
Frame 56C
Frame Length 8.81"
Frame Material Rolled Steel
Frame Type 56C
Frequency 60 Hz
Full Load Amps 8.2-7.6/3.8A
Grease Type Polyrex EM
Hazardous Location Div 1 Exp Proof Cl I Gr Cd Cl Ii Gr Fg T3C
Hazardous Location Class 1C, D/2F, G
Height 9 3/4"
Hp 3 hp
Insulation Class Class B
Ip Code IP54
Kva Code M
Kw 2.2 kW
Length 19"
Lubrication Polyrex EM
Max. Rpm 3450 RPM
Motor Orientation Horizontal
Motor Shaft Rotation Reversible
Motor Type Squirrel Cage Induction Run
Mounting Type Round
Nameplate Rpm 3600/3000 RPM
No. Of Poles 2
No. Of Speeds 1
Opp. Drive End Bearing Size 6203
Opp. Drive End Bearing Type Ball
Output Rating 2.24 kW
Packaging F
Phase 3
Power 2.24 kW
Power Factor 84
Resistance Main 4.04 ohms
Rpm 3400-3600 RPM
Service Factor 1
Shaft Extension 1.88
Shaft Type NEMA 56
Starting Method Across The Line
Temp. Code T3C
Thermal Protection Automatic
Type TX
Voltage 208-230V
Width 10 22/25"

Shipping Info:

Ship weight (kg) 25.65
Ship height (cm)24.77
Ship length (cm)48.26
Ship width (cm)27.64
Country of OriginMX

Product Details:

    • Supersedes Leeson - 114419.00 / A6T34XC28C
    • Eff 100%: 87.5
    • Bearing OPE: 6203
    • CC Number: EXEMPT
    • Bearing PE: 6205
    • Nameplate: A-71625G
    • Winding: ZT2175
    • GROUP: 1
    • Paint: BLUE - LEESON (ENAMEL)

Product Variants

ProductModelVoltageHpFrameNameplate RpmService FactorDesignThermal ProtectionFull Load AmpsPrice
LEESON 111933.00 A6T34EC22H Explosion Proof Motor 50-60 Hertz | AJ2QGB A6T34EC22H 111933.00208-230/460V1/2 hp56C3600/3000 RPM1BAutomatic1.6/0.8A€1,024.61
LEESON 111936.00 A6T34XC21H Explosion Proof Motor 50-60 Hertz | AJ2QGE A6T34XC21H 111936.00208-230/460V3/4 hp56C3600/3000 RPM1BAutomatic3-3.2/1.6A€1,494.55
LEESON 111944.00 A6T34EC23H Explosion Proof Motor 50-60 Hertz | AJ2QGL A6T34EC23H 111944.00208-230/460V33/100 hp56C-1BAutomatic1.1/0.65A€1,502.69
LEESON 116187.00 A6T34EC28C Explosion Proof Motor 50-60 Hertz | AJ2QRD A6T34EC28C 116187.00208-230/460V AC1/2 hp, 1/3 hp56J3600/3000 RPM1BAutomatic1.6/0.8A-
RFQ
LEESON 117852.00 C6T17EC31A Explosion Proof Motor 50-60 Hertz | AJ2QYW C6T17EC31A 117852.00208-230/460V1/2 hp56C1800/1500 RPM1BThermostat1.8-1.6/0.8A€1,103.92
LEESON 117853.00 C6T17XC30A General Purpose Motor 50-60 Hertz | AJ2QYX C6T17XC30A 117853.00208-230/460V3/4 hp56C1800/1500 RPM1BThermostat2.9-3/1.5A€1,122.27
LEESON 119422.00 A6T34XC47A General Purpose Motor 50-60 Hertz | AJ2RBG A6T34XC47A 119422.00230/460V1 hp56C3600/3000 RPM1BAutomatic3/1.5A€1,958.86
