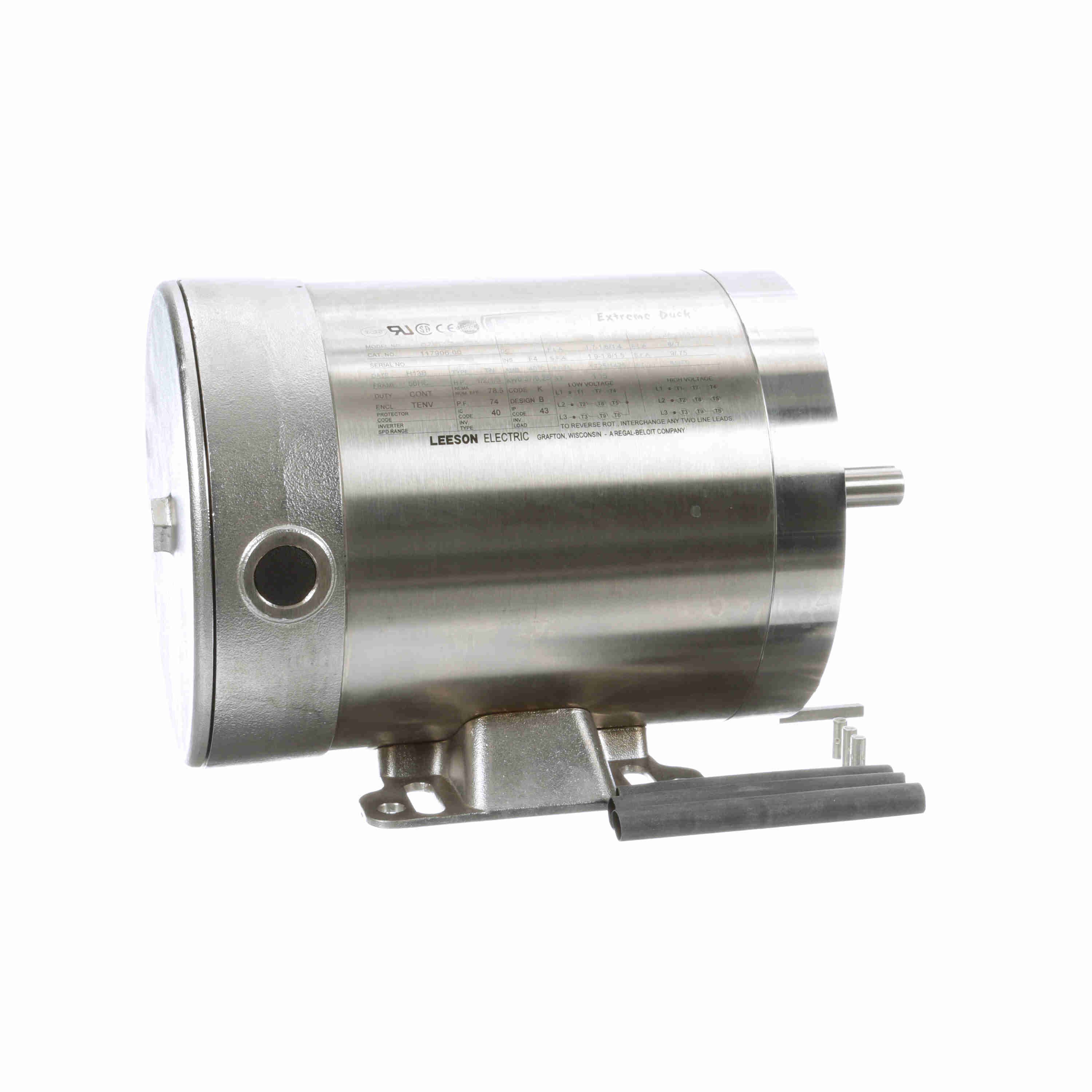

LEESON 117906.00 CZ6T17TK3D General Purpose Motor, 0.50/0.33 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 RPM
Get it by Tuesday, May 19
€1,749.23 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Amps | 1.6/0.8A |
| Code | K |
| De Bearing Size | 6205 |
| De Bearing Type | Ball |
| Design | B |
| Design Code | B |
| Duty Cycle | Continuous |
| Efficiency | 78.5% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | Tenv |
| Finish | Paint Free |
| Frame | 56C |
| Frame Length | 5 3/4" |
| Frame Material | Rolled Steel |
| Frame Type | 56HC |
| Frequency | 60 Hz |
| Frequency | 50/60 Hz |
| Full Load Amps | 1.6-1.7/0.8A |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 1/2 hp |
| Insulation Class | Class F |
| Ip Code | IP69 |
| Kva Code | K |
| Kw | 0.37 kW |
| Length | 19 1/2" |
| Lubrication | Polyrex EM |
| Max. Rpm | 1725 RPM |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1800/1500 RPM |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6205 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 0.37/0.246 kW |
| Packaging | B |
| Phase | 3 |
| Power | 0.37/0.246 kW |
| Power Factor | 74 |
| Product Datasheet | leeson-117906-00.pdf |
| Resistance Main | 8.17 ohms |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Extension | 1.88 |
| Shaft Grade | Grade 300 Series |
| Shaft Type | NEMA 56 |
| Starting Method | Across The Line |
| Thermal Protection | No Protection |
| Type | TN |
| Voltage | 208-230V |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 18.9 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- Bearing OPE: 6205
- CC Number: EXEMPT
- Bearing PE: 6205
- Nameplate: 213-0016
- Winding: T634250
- GROUP: 3
- Paint: VERIFY
- S. F Amps: 1.9-1.8 / .9
- Eff 100%: 78.5 / 80
Documentation:
Product Variants
| Product | Model | Voltage | Nameplate Rpm | Hp | Full Load Amps | Mounting Type | Motor Type | Frame | Ambient Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
117119.00 | 208-230/460V | 1725 RPM | 1/2 hp | 1.6A | Face/Base | Three Phase | 56C | 104°F | €2,829.77 | |
 |
117121.00 | 208-230/460V | 1725 RPM | 3/4 hp | 1.1A | Face/Base | Three Phase | 56C | 104°F | €2,924.91 | |
 |
117122.00 | 230/460V | 3450 RPM | 1 hp | 1.3A | Face/Base | Three Phase | 56C | 104°F | €2,881.68 | |
 |
117127.00 | 208-230/460V | 1725 RPM | 1/2 hp | 1.6A | Face | Three Phase | 56C | 104°F | €1,492.37 | |
 |
117129.00 | 208-230/460V | 1725 RPM | 3/4 hp | 1.1A | Face | Three Phase | 56C | 104°F | €2,667.02 | |
 |
103413.00 | 208-230/460V | 1800/1500 RPM | 1/2 hp | 1.9-1.8/0.9A | Round | Squirrel Cage Induction Run | S56C | 40°C | €2,975.15 | |
 |
119975.00 | 230/460V | 1750 RPM | 1 hp | 2.8/1.4A | Face/Base | Three Phase | 56C | 104°F | €3,109.39 |
