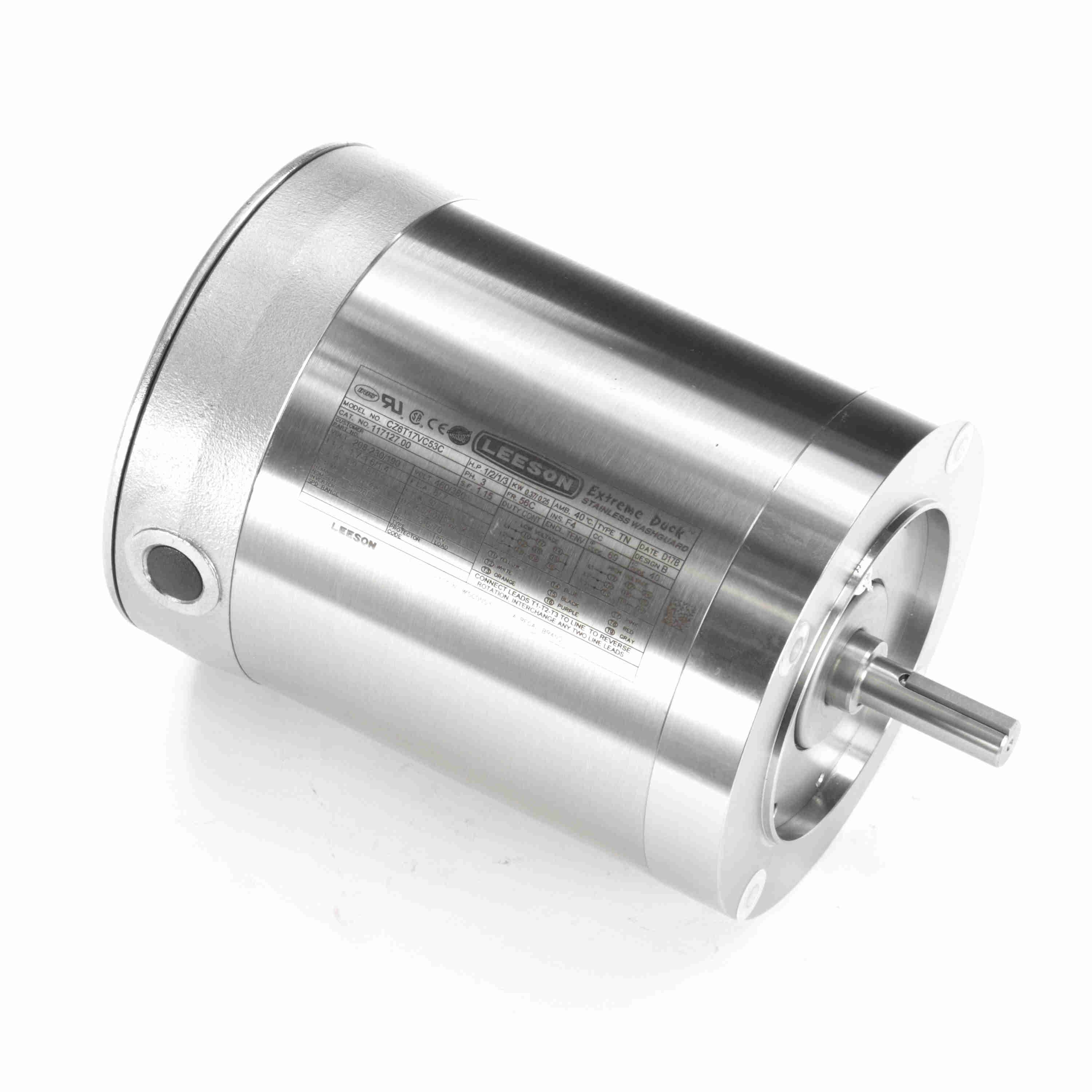

LEESON 117127.00 CZ6T17TC1D General Purpose Motor, 0.50/0.33 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 RPM

Item: AE2MBTModel: 117127.00Cross Ref: 4YEF1 / CZ6T17TC1D

Check Availability

In Stock

Get it by Monday, Dec 22

€1,492.37 /unit

Add To Cart

Request a Quote

Payment

Delivery

Product Specifications:

Item	Washdown Motor
Ambient Temp.	104°F
Amps	1.6/0.8A
Application	Washdown
Bearing Type	Ball
Body Dia.	6 14/25"
Bolt Circle Dia.	5 7/8"
Conduit Box	Oversized Stainless Steel Bicb And Threaded Cover With O Ring
Conduit Box Location	Exterior
Conduit Box Position	F1
Design Code	B
Drain Plug	None
Drain Plugs	None
Drive End Bearing Size	6205
Drive End Bearing Type	Ball
Duty Cycle	Continuous
Efficiency	78.5%
Electrical Type	Squirrel Cage, Induction Run
Enclosure Type	Tenv
Endshield Material	Stainless Steel
Endshields	Stainless Steel
Finish	Paint Free
Frame	56C
Frame Length	5 3/4"
Frame Material	Rolled Steel
Frame Type	56C
Frequency	60 Hz
Frequency	50/60 Hz
Full Load Amps	1.6A
Height	10 22/25"
Hp	1/2 hp
Hz	50/60 Hz
Includes	Frame, Base, Conduit Box Cover Endshields, Bearing Carrier Cover
Ins. Class	Class F
Insulation Class	Class F
Ip Code	IP69
Kva Code	K
Kw	0.37 kW
Length	19 1/2"
Length Less Shaft	9"
Manufacturers Warranty Length	1 yr.
Max. Ambient Temp.	40°C
Max. Rpm	1725 RPM
Motor Application	Washdown
Motor Bearings	Ball
Motor Design	3-Phase
Motor Enclosure Design	Totally Enclosed Non Ventilated
Motor Frame Material	Steel
Motor Mounting Position	Horizontal
Motor Mounting Type	Face
Motor Orientation	Horizontal
Motor Service Factor	1.15
Motor Shaft Design	Keyed
Motor Shaft Rotation	Clockwise/Counter Clockwise
Motor Shaft Rotation	Clockwise, Counter Clockwise
Motor Type	Three Phase
Mounting Type	Face
Nameplate Rpm	1725 RPM
Nema Design	B
No. Of Poles	4
No. Of Speeds	1
Nominal Efficiency	78.5%
Opp. Drive End Bearing Size	6205
Opp. Drive End Bearing Type	Ball
Overall Length	11"
Phase	3
Power Factor	73.6
Product Type	Washdown Motor
Resistance Main	8.17 ohms
Rpm	1700-1800 RPM
Service Factor	1.15
Shaft Dia.	5/8"
Shaft Length	1 22/25"
Shaft Material	Stainless Steel
Shaft Type	NEMA 56
Standards	Bissc Approved, Csa Certified, Ul Recognized
Starting Method	Across The Line
Thermal Protection	No Protection
Usable @ 200v	No
Usable @ 208v	Yes
Voltage	208-230/460V
Weight	43 lbs.
Width	10 11/25"

Shipping Info:

Ship weight (kg)	19.35
Ship height (cm)	27.64
Ship length (cm)	49.53
Ship width (cm)	26.52
HS code	8501514040
Country of Origin	US

Product Variants

Model	Voltage	Hp	Finish	Frame	Nameplate Rpm	Full Load Amps	Ambient Temp.	Motor Type	Price
117129.00	208-230/460V	3/4 hp	Paint Free	56C	1725 RPM	1.1A	104°F	Three Phase	€2,667.02
103413.00	208-230/460V	1/2 hp	Paint Free	S56C	1800/1500 RPM	1.9-1.8/0.9A	40°C	Squirrel Cage Induction Run	€2,975.15
103414.00	208-230/460V	3/4 hp	Paint Free	S56C	1800/1500 RPM	2.5-2.4/1.2A	40°C	Squirrel Cage Induction Run	€1,663.89
119512.00	208-230/460V	1 hp	Unfinished	56C	1760 RPM	3.2/1.6A	104°F	Three Phase	€2,937.94
119520.00	208-230/460V	1 1/2 hp	Unfinished	56C	1750 RPM	4.6-4.8/2.4A	104°F	Three Phase	€1,815.13
121909.00	230/460V	1 1/2 hp	Paint Free	143TC	-	2.4A	104°F	Three Phase	€3,339.41
121910.00	230/460V	2 hp	Paint Free	143TC	3490 RPM	2.4A	104°F	Three Phase	€3,852.17
