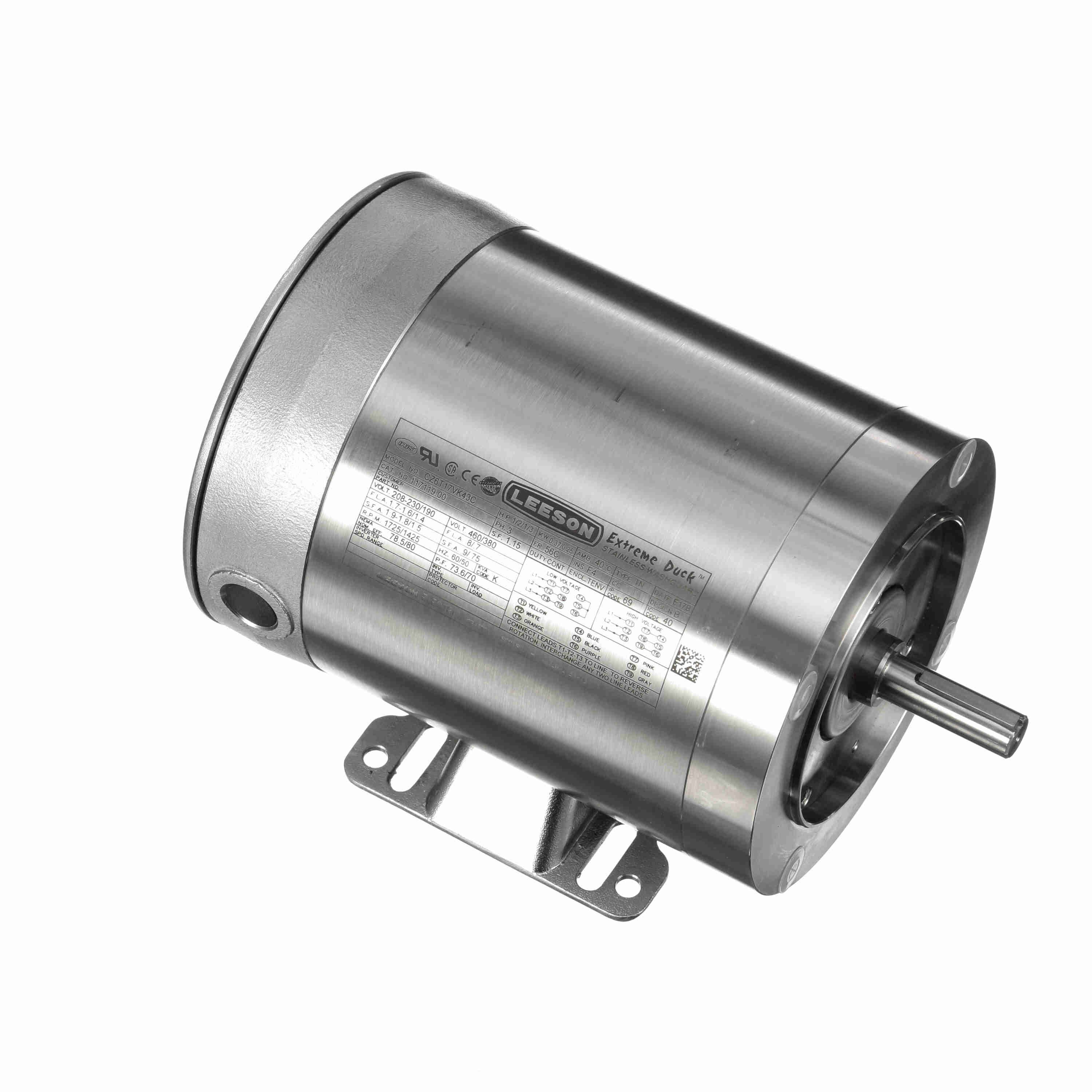

LEESON 117119.00 CZ6T17TK1D General Purpose Motor, 0.50/0.33 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 RPM
Get it by Tuesday, Dec 23
10.00% off
€2,546.79 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ambient Temp. | 104°F |
| Amps | 1.6/0.8A |
| Application | Washdown |
| Bearing Type | Ball |
| Body Dia. | 6 14/25" |
| Bolt Circle Dia. | 5 7/8" |
| Conduit Box | Oversized Stainless Steel Bicb And Threaded Cover With O Ring |
| Conduit Box Location | Exterior |
| Design Code | B |
| Drain Plug | None |
| Drain Plugs | None |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 78.5% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | Tenv |
| Endshield Material | Stainless Steel |
| Endshields | Stainless Steel |
| Finish | Paint Free |
| Frame | 56C |
| Frame Length | 5 3/4" |
| Frame Material | Rolled Steel |
| Frame Type | 56C |
| Frequency | 50/60 Hz |
| Frequency | 60 Hz |
| Full Load Amps | 1.6A |
| Height | 10 22/25" |
| Hp | 1/2 hp |
| Hz | 50/60 Hz |
| Includes | Frame, Base, Conduit Box Cover Endshields, Bearing Carrier Cover |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Ip Code | IP69 |
| Kva Code | K |
| Kw | 0.37 kW |
| Length | 19 1/2" |
| Length Less Shaft | 9" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Max. Rpm | 1725 RPM |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face/Base |
| Motor Mounting Type | Face, Base |
| Motor Orientation | Horizontal |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Face/Base |
| Nameplate Rpm | 1725 RPM |
| Nema Design | B |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 78.5% |
| Opp. Drive End Bearing Size | 6205 |
| Opp. Drive End Bearing Type | Ball |
| Overall Length | 11" |
| Phase | 3 |
| Power Factor | 73.6 |
| Product Type | Washdown Motor |
| Resistance Main | 8.17 ohms |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 22/25" |
| Shaft Material | Stainless Steel |
| Shaft Type | NEMA 56 |
| Standards | Bissc Approved, Csa Certified, Ul Recognized |
| Starting Method | Across The Line |
| Thermal Protection | No Protection |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V |
| Weight | 44 lbs. |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 19.62 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| HS code | 8501514040 |
| Country of Origin | US |
Product Variants
| Product | Model | Voltage | Hp | Nameplate Rpm | Finish | Frame | Full Load Amps | Motor Mounting Type | Ambient Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
117121.00 | 208-230/460V | 3/4 hp | 1725 RPM | Paint Free | 56C | 1.1A | Face, Base | 104°F | €2,924.91 | |
 |
117122.00 | 230/460V | 1 hp | 3450 RPM | Paint Free | 56C | 1.3A | Face, Base | 104°F | €2,881.68 | |
 |
121880.00 | 230/460V | 1 1/2 hp | 1750 RPM | Paint Free | 143TC | 2.4A | Rigid Base | 104°F | €2,889.32 | |
 |
121881.00 | 230V | 2 hp | 3490 RPM | Paint Free | 145TC | 2A | Rigid Base | 104°F | €2,046.12 | |
 |
121882.00 | 230/460V | 2 hp | 1745 RPM | Paint Free | 145TC | 2A | Rigid Base | 104°F | €2,065.47 | |
 |
103412.00 | 208-230/460V | 3/4 hp | 1725/1425 RPM | Paint Free | S56C | 2.5-2.4/1.2A | - | 40°C | €3,897.08 | |
 |
119522.00 | 230/460V | 1 1/2 hp | 1750 RPM | Unfinished | 56C | 4.8/2.4A | Face, Base | 104°F | €3,520.99 |
