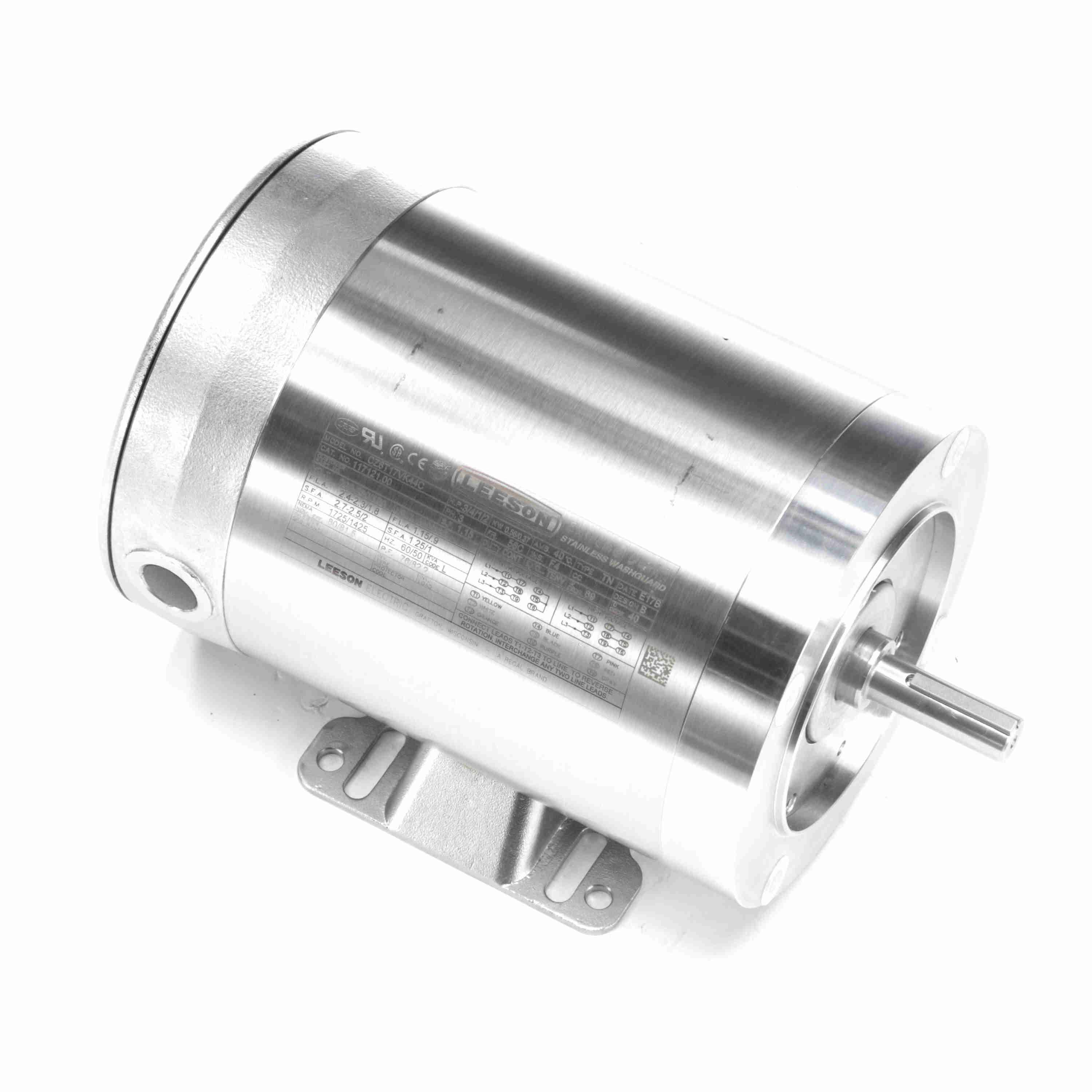

LEESON 117121.00 CZ6T17TK2E General Purpose Motor, 0.75/0.50 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 RPM
Get it by Tuesday, May 19
5.00% off
€2,778.66 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ambient Temp. | 104°F |
| Amps | 2.3/1.2A |
| Application | Washdown |
| Bearing Type | Ball |
| Body Dia. | 6 14/25" |
| Bolt Circle Dia. | 5 7/8" |
| Conduit Box | Oversized Stainless Steel Bicb And Threaded Cover With O Ring |
| Conduit Box Location | Exterior |
| Design Code | B |
| Drain Plug | None |
| Drain Plugs | None |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 80% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | Tenv |
| Endshield Material | Stainless Steel |
| Endshields | Stainless Steel |
| Finish | Paint Free |
| Frame | 56C |
| Frame Length | 6 1/4" |
| Frame Material | Stainless Steel |
| Frame Type | 56C |
| Frequency | 60 Hz |
| Frequency | 50/60 Hz |
| Full Load Amps | 1.1A |
| Height | 10 22/25" |
| Hp | 3/4 hp |
| Hz | 50/60 Hz |
| Includes | Frame, Base, Conduit Box Cover Endshields, Bearing Carrier Cover |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Ip Code | IP69 |
| Kva Code | L |
| Kw | 0.56 kW |
| Length | 19 1/2" |
| Length Less Shaft | 9 1/2" |
| Max. Ambient Temp. | 40°C |
| Max. Rpm | 1725 RPM |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face, Base |
| Motor Mounting Type | Face/Base |
| Motor Orientation | Horizontal |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Face/Base |
| Nameplate Rpm | 1725 RPM |
| Nema Design | B |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 80% |
| Opp. Drive End Bearing Size | 6205 |
| Opp. Drive End Bearing Type | Ball |
| Overall Length | 11 1/2" |
| Phase | 3 |
| Power Factor | 76 |
| Product Datasheet | leeson-117121-00.pdf |
| Product Type | Washdown Motor |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 22/25" |
| Shaft Material | Stainless Steel |
| Shaft Type | NEMA 56 |
| Standards | Bissc Approved, Csa Certified, Ul Recognized |
| Starting Method | Across The Line |
| Thermal Protection | No Protection |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 21.15 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| HS code | 8501514040 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Voltage | Nameplate Rpm | Hp | Full Load Amps | Mounting Type | Motor Type | Frame | Ambient Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
117119.00 | 208-230/460V | 1725 RPM | 1/2 hp | 1.6A | Face/Base | Three Phase | 56C | 104°F | €2,829.77 | |
 |
117122.00 | 230/460V | 3450 RPM | 1 hp | 1.3A | Face/Base | Three Phase | 56C | 104°F | €2,881.68 | |
 |
117127.00 | 208-230/460V | 1725 RPM | 1/2 hp | 1.6A | Face | Three Phase | 56C | 104°F | €1,492.37 | |
 |
117129.00 | 208-230/460V | 1725 RPM | 3/4 hp | 1.1A | Face | Three Phase | 56C | 104°F | €2,667.02 | |
 |
103413.00 | 208-230/460V | 1800/1500 RPM | 1/2 hp | 1.9-1.8/0.9A | Round | Squirrel Cage Induction Run | S56C | 40°C | €2,975.15 | |
 |
117906.00 | 208-230V | 1800/1500 RPM | 1/2 hp | 1.6-1.7/0.8A | Rigid Base | Squirrel Cage Induction Run | 56C | 40°C | €1,749.23 | |
 |
119975.00 | 230/460V | 1750 RPM | 1 hp | 2.8/1.4A | Face/Base | Three Phase | 56C | 104°F | €3,109.39 |
