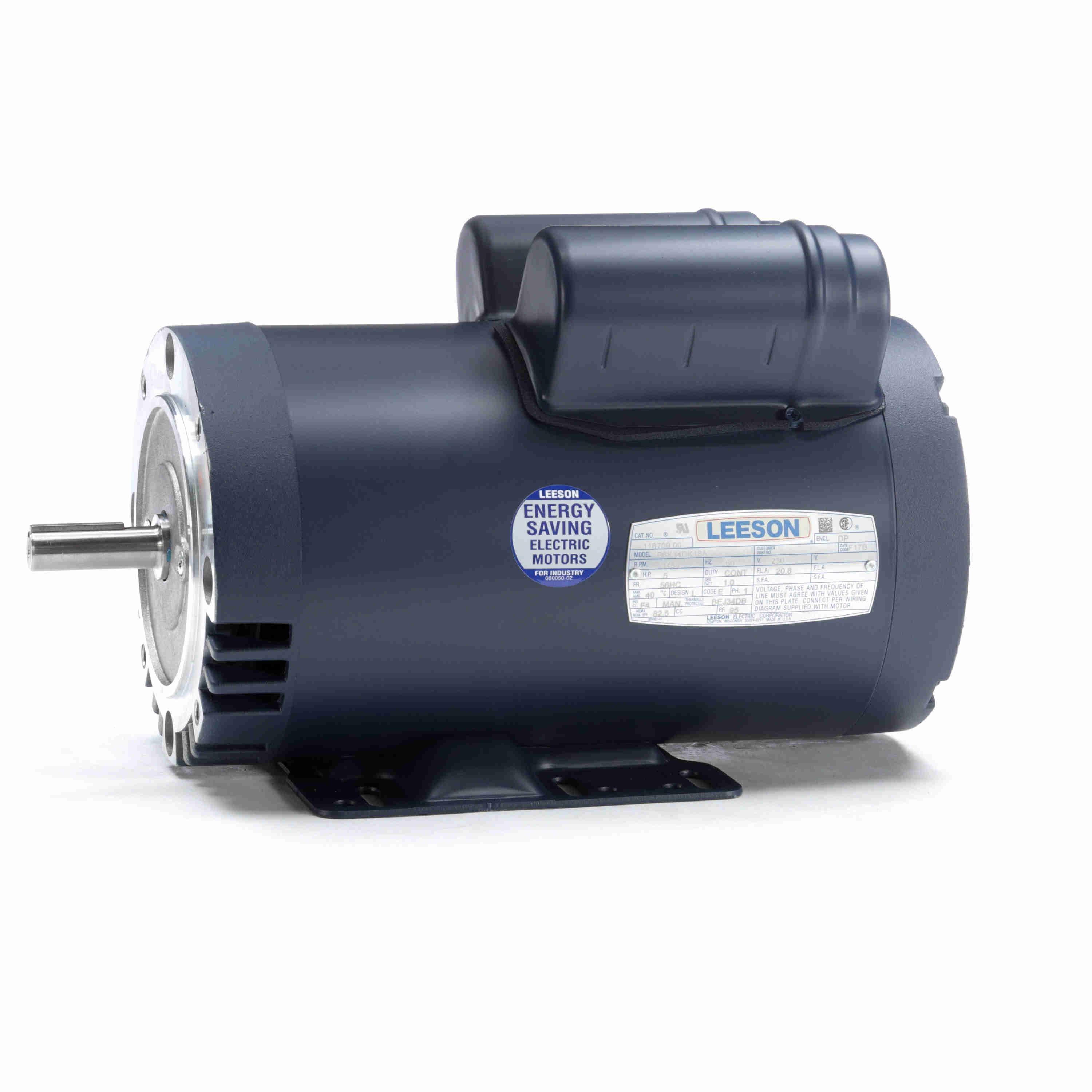

LEESON 116709.00 P6K34DK18A Pressure Washer Motor, 5 HP, 1 Phase, 60 Hz, 230V, 3600 RPM
Get it by Wednesday, Jul 1
€970.23 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Single Phase Motor |
| Ambient Temp. | 40°C |
| Amps | 20.8A |
| Code | E |
| Design Code | L |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 82.5% |
| Electrical Type | Capacitor Start, Capacitor Run |
| Enclosure Type | ODP |
| Frame | 56HC |
| Frame Length | 9" |
| Frame Material | Rolled Steel |
| Frame Type | 56HC |
| Frequency | 60 Hz |
| Full Load Amps | 20.8A |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 5 hp |
| Insulation Class | Class F |
| Ip Code | IP22 |
| Kva Code | E |
| Kw | 3.7 kW |
| Length | 19 1/2" |
| Lubrication | Polyrex EM |
| Max. Speed | 3450 RPM |
| Motor Enclosure Design | Dripproof |
| Motor Mounting Type | Rigid Base |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Type | Capacitor Start |
| Mounting Type | Rigid Base |
| Nameplate Speed | 3600 RPM |
| Nema Design | E, L |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Opp Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 3.7 kW |
| Packaging | B |
| Phase | 1 |
| Power | 3.7 kW |
| Power Factor | 95 |
| Product Datasheet | leeson-116709-00.pdf |
| Resistance Main | 0.52 ohms |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 22/25" |
| Shaft Type | NEMA 56 |
| Speed | 3400-3600 RPM |
| Starting Method | Across The Line |
| Thermal Protection | Manual |
| Type | KD |
| Voltage | 230V |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 22.95 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- Eff 100%: 82.5
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6205
- Nameplate: 004001
- Winding: K632130
- GROUP: 2
- Paint: VERIFY
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Motor Enclosure Design | Frame | Mounting Type | Motor Shaft Rotation | Service Factor | Motor Application | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
056C17F5311 | 115/208-230V AC | 1 hp | Totally Enclosed Fan Cooled | 56 | Rigid Base | CW, CCW | 1.15 | Pressure Washer | €854.26 | |
 |
056B34F5312 | 115/230V AC | 2 hp | Totally Enclosed Fan Cooled | 56HC | C Face, Rigid Base | CW, CCW | 1.15 | Pressure Washer | €1,087.01 | |
 |
056B17F5310 | 115/208-230V AC | 1 1/2 hp | Totally Enclosed Fan Cooled | 56HC | C Face, Rigid Base | CW, CCW | 1.15 | Pressure Washer | €1,023.20 | |
 |
056B17F5302 | 115/208-230V | 1 1/2 hp | Totally Enclosed Fan Cooled | 56H | Rigid Base | CW, CCW | 1.15 | Pressure Washer | €916.41 | |
 |
056B34D2029 | 115/208-230V | 1 hp | Dripproof | 56 | Rigid Base | CW, CCW | 1.15 | Air Compressor | €516.77 | |
 |
5KC49PN0161U | 115/230V AC | 1 hp | Dripproof | 56 | Rigid Base | CW, CCW | 1.15 | Air Compressor | €703.19 | |
 |
056B34F5303 | 115/208-230V AC | 1 1/2 hp | Totally Enclosed Fan Cooled | 56 | Rigid Base | CW, CCW | 1.15 | Pressure Washer | €848.64 |
