LEESON 056B34F5312 K615 / 56B34F5312K Pressure Washer Motor, 2 HP, 1 Phase, 60 Hz, 115/230V, 3600 RPM
Get it by Monday, Dec 22
10.00% off
€923.86 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Definite Purpose Motor |
| Ambient (c) | 40 |
| Ambient Temp. | 40°C |
| Assembly | F3 |
| Bearing Type | Ball |
| Body Dia. | 7 2/5" |
| Bolt Circle Dia. | 5 7/8" |
| Conduit Box Location | Exterior |
| Conduit Box Position | F3 |
| Duty Cycle | Continuous |
| Efficiency | 80.5 % |
| Frame | 56HC |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 17.5/8.7A |
| Height | 8 15/16" |
| Hp | 2 hp |
| Insulation Class | Class B |
| Length Less Shaft | 11 7/16" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Pressure Washer |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start/Run |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face, Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | Manual |
| Mounting Type | C Face, Rigid Base |
| Nameplate Rpm | 3450 RPM |
| Nema Design | General Duty |
| Nominal Efficiency | 80.5% |
| Number Of Speeds | 1 |
| Orientation | Horizontal |
| Overall Height | 8.938" |
| Overall Length | 13 5/16" |
| Phase | 1 |
| Power | 1.5 kW |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Standards | Ce, Ul Recognized |
| Thermal Protection | Manual |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115/230V AC |
| Weight | 42 lbs. |
Shipping Info:
| Ship weight (kg) | 18.9 |
| Ship height (cm) | 23.83 |
| Ship length (cm) | 40.18 |
| Ship width (cm) | 31.9 |
| HS code | 8501406040 |
| Country of Origin | MX |
Product Details:
- Starting Type: CAP START CAP RUN
- KVA Code: J
- Drive End Bearing: BALL
- IP Code: 43
- Opposite End Bearing: BALL
- Drive End Bearing Size: 6203
- Opposite End Bearing Size: 6203
Product Variants
| Product | Model | Hp | Power | Nameplate Rpm | Frame | Conduit Box Position | Nema Design | Overall Length | Nominal Efficiency | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

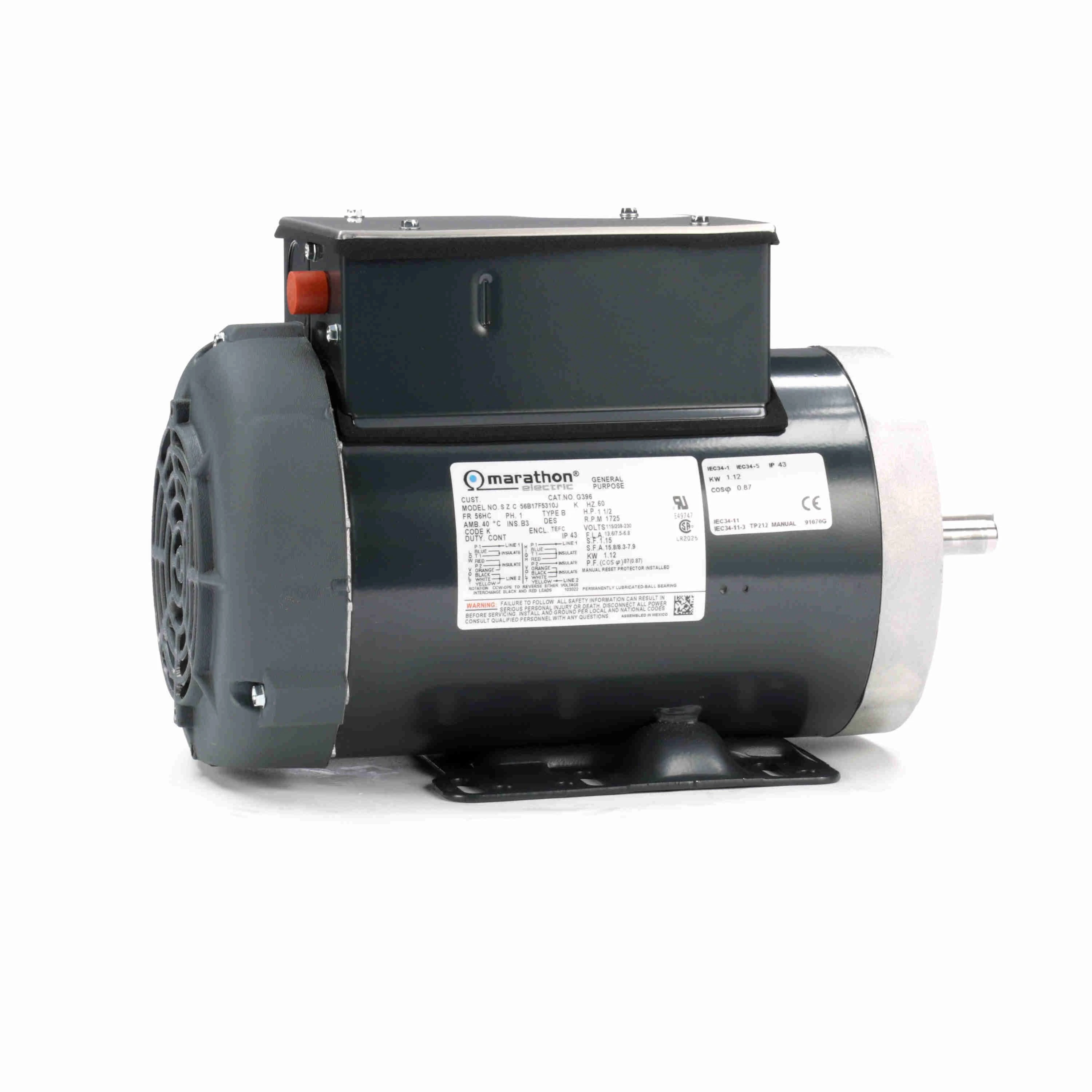

056B17F5310 | 1 1/2 hp | 1.12 kW | 1725 RPM | 56HC | F3 | None | 13 13/16" | 81.5% | €966.25 | |
 |

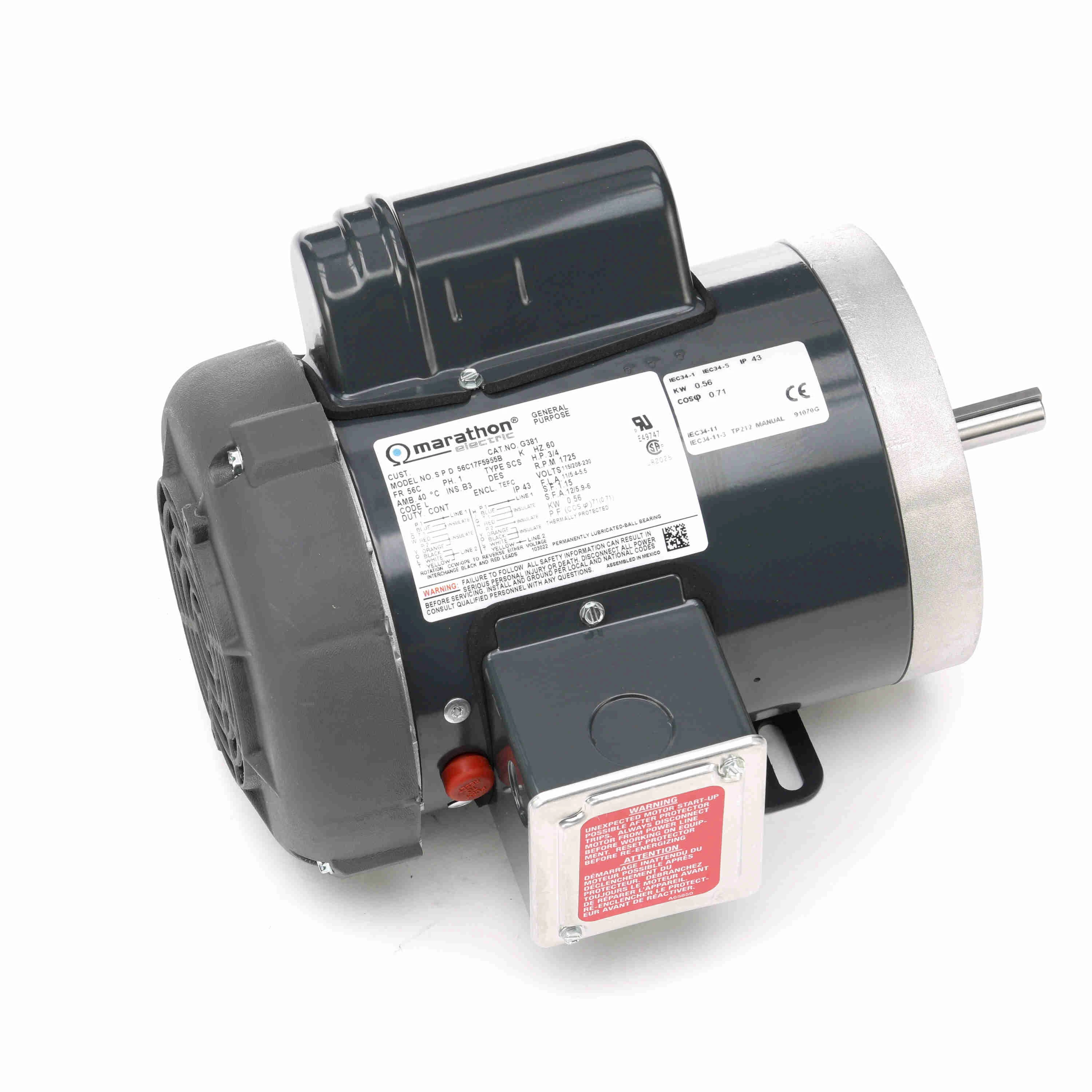

056C17F5955 | 3/4 hp | 0.56 kW | 1725 RPM | 56C | F1 | None | 12 5/16" | 70.5% | €738.97 |
