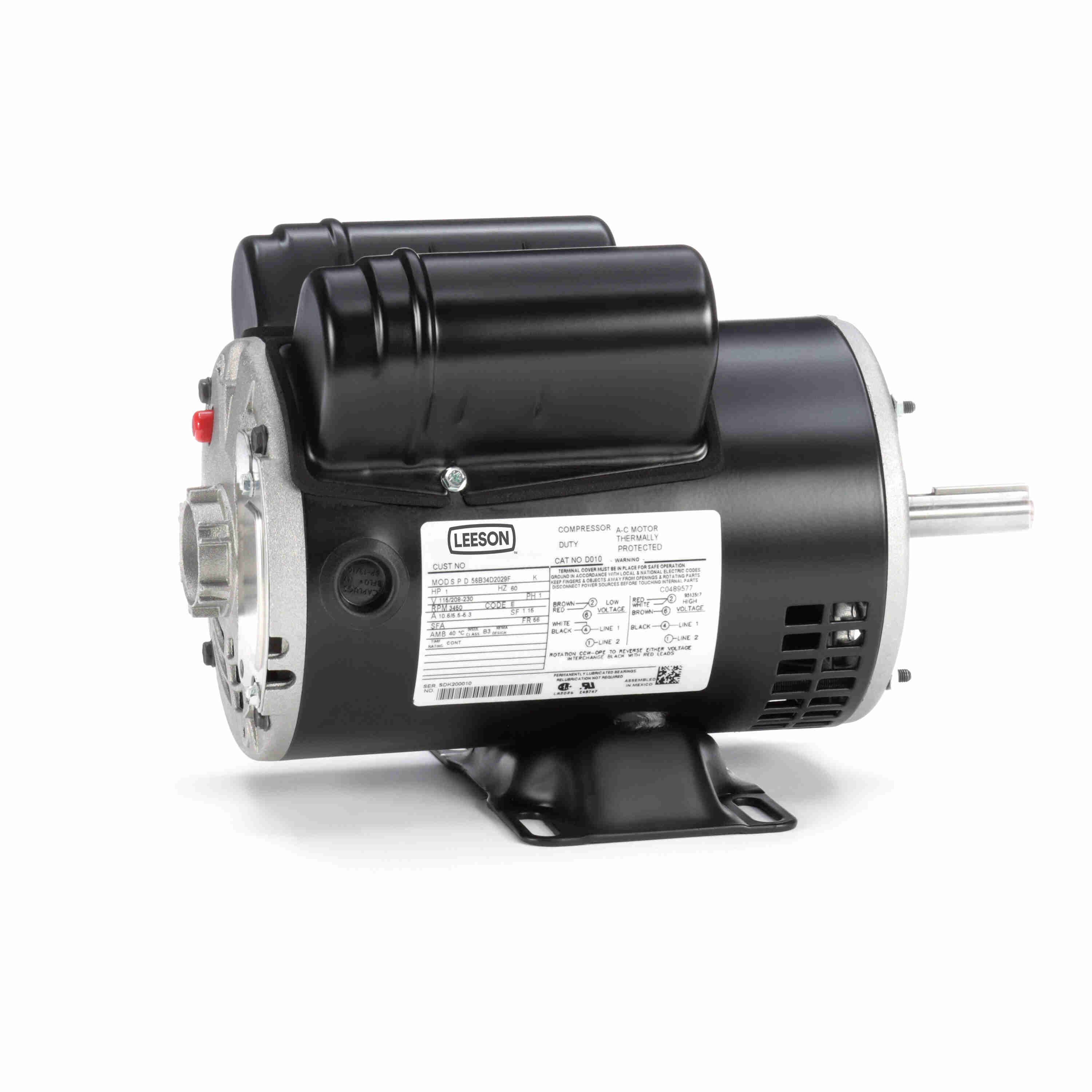

LEESON 056B34D2029 56B34D2029F / D010 Pressure Washer Motor, 1 HP, 1 Phase, 60 Hz, 115/208-230V, 3600 RPM
Get it by Tuesday, May 19
5.00% off
€502.99 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient (c) | 40°C |
| Ambient Temp. | 40°C |
| Assembly | F1 Only |
| Bearing Type | Ball |
| Conduit Box Position | F1 Only |
| Duty Cycle | Continuous |
| Efficiency | Not Applicable |
| Frame | 56 |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 10.6/5.5-5.3A |
| Hp | 1 hp |
| Includes | Capacitor |
| Insulation Class | Class B |
| Length Less Shaft | 9 13/16" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Air Compressor |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start/Run |
| Motor Enclosure Design | Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | Manual |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3450 RPM |
| Nema Design | No Design Code |
| Nominal Efficiency | 58% |
| Number Of Speeds | 1 |
| Orientation | Horizontal |
| Output Kw | 0.75 kW |
| Overall Length | 11 3/4" |
| Phase | 1 |
| Power | 0.75 kW |
| Product Datasheet | leeson-056b34d2029.pdf |
| Rpm Range | 3001-3600 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Standards | Csa, Ul Listed |
| Thermal Protection | Manual |
| Voltage | 115/208-230V |
Shipping Info:
| Ship weight (kg) | 10.35 |
| Ship height (cm) | 22.23 |
| Ship length (cm) | 34.93 |
| Ship width (cm) | 20.02 |
| HS code | 8501406040 |
| Country of Origin | MX |
Product Details:
- Starting Type: CAP START CAP RUN
- KVA Code: E
- Drive End Bearing: BALL
- IP Code: 22
- Opposite End Bearing: BALL
- Drive End Bearing Size: 6203
- Opposite End Bearing Size: 6203
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Nameplate Rpm | Motor Enclosure Design | Frame | Mounting Type | Motor Shaft Rotation | Service Factor | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
056C17F5311 | 115/208-230V AC | 1 hp | 1725 RPM | Totally Enclosed Fan Cooled | 56 | Rigid Base | CW/CCW | 1.15 | €878.52 | |
 |
056B34F5312 | 115/230V AC | 2 hp | 3450 RPM | Totally Enclosed Fan Cooled | 56HC | C Face, Rigid Base | CW/CCW | 1.15 | €1,026.51 | |
 |
056B17F5310 | 115/208-230V AC | 1 1/2 hp | 1725 RPM | Totally Enclosed Fan Cooled | 56HC | C Face, Rigid Base | CW/CCW | 1.15 | €966.25 | |
 |
056B17F5302 | 115/208-230V | 1 1/2 hp | 1725 RPM | Totally Enclosed Fan Cooled | 56H | Rigid Base | CW/CCW | 1.15 | €932.66 | |
 |
5KC49PN0161U | 115/230V AC | 1 hp | 1725 RPM | Dripproof | 56 | Rigid Base | CW/CCW | 1.15 | €653.97 | |
 |
056B34F5303 | 115/208-230V AC | 1 1/2 hp | 3450 RPM | Totally Enclosed Fan Cooled | 56 | Rigid Base | CW/CCW | 1.15 | €770.90 | |
 |
056C17F5955 | 115/208-230V AC | 3/4 hp | 1725 RPM | Totally Enclosed Fan Cooled | 56C | C Face, Rigid Base | CW/CCW | 1.15 | €738.97 |
