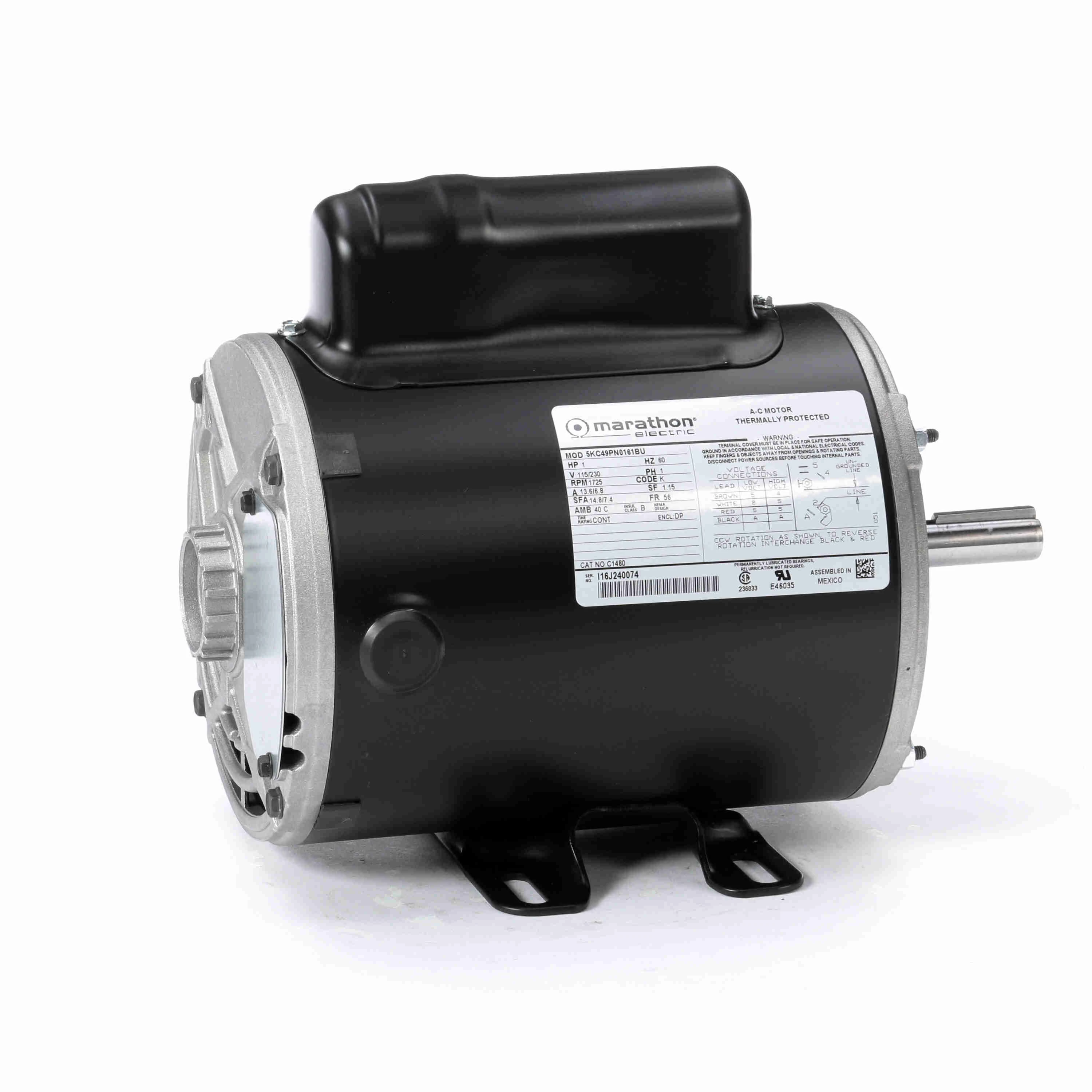

LEESON 5KC49PN0161U 5KC49PN0161BU / C1480 Pressure Washer Motor, 1 HP, 1 Phase, 60 Hz, 115/230V, 1800 RPM
Get it by Thursday, Jul 16
5.00% off
€668.03 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Definite Purpose Motor |
| Ambient (c) | 40 |
| Bearing Type | Ball |
| Duty Cycle | Continuous |
| Frame | 56 |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 13.6/6.8A |
| Hp | 1 hp |
| Included | Capacitor |
| Insulation Class | Class B |
| Length Less Shaft | 9 1/2" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Air Compressor |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW, CCW |
| Motor Thermal Protection | Manual |
| Motor Type | Capacitor Start |
| Mounting | WB |
| Mounting Type | Rigid Base |
| Nameplate Speed | 1725 RPM |
| No. Of Speed | 1 |
| Overall Length | 11 3/8" |
| Phase | 1 |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Speed | 1701-1800 RPM |
| Thermal Protection | Manual |
| Voltage | 115/230V AC |
Shipping Info:
| Ship weight (kg) | 13.95 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 34.77 |
| Ship width (cm) | 18.11 |
| HS code | 8501406040 |
| Country of Origin | MX |
Product Details:
- Starting Type: Switch and Mech
- KVA Code: K
- Drive End Bearing: BALL
- Opposite End Bearing: BALL
- Drive End Bearing Size: 6203
- Opposite End Bearing Size: 6203
Product Variants
| Product | Model | Voltage | Hp | Motor Enclosure Design | Frame | Mounting Type | Motor Shaft Rotation | Service Factor | Motor Application | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
056C17F5311 | 115/208-230V AC | 1 hp | Totally Enclosed Fan Cooled | 56 | Rigid Base | CW, CCW | 1.15 | Pressure Washer | €854.26 | |
 |
056B34F5312 | 115/230V AC | 2 hp | Totally Enclosed Fan Cooled | 56HC | C Face, Rigid Base | CW, CCW | 1.15 | Pressure Washer | €1,087.01 | |
 |
056B17F5310 | 115/208-230V AC | 1 1/2 hp | Totally Enclosed Fan Cooled | 56HC | C Face, Rigid Base | CW, CCW | 1.15 | Pressure Washer | €1,023.20 | |
 |
056B17F5302 | 115/208-230V | 1 1/2 hp | Totally Enclosed Fan Cooled | 56H | Rigid Base | CW, CCW | 1.15 | Pressure Washer | €916.41 | |
 |
056B34D2029 | 115/208-230V | 1 hp | Dripproof | 56 | Rigid Base | CW, CCW | 1.15 | Air Compressor | €516.77 | |
 |
056B34F5303 | 115/208-230V AC | 1 1/2 hp | Totally Enclosed Fan Cooled | 56 | Rigid Base | CW, CCW | 1.15 | Pressure Washer | €848.64 | |
 |
056C17F5955 | 115/208-230V AC | 3/4 hp | Totally Enclosed Fan Cooled | 56C | C Face, Rigid Base | CW, CCW | 1.15 | Pressure Washer | €738.97 |
