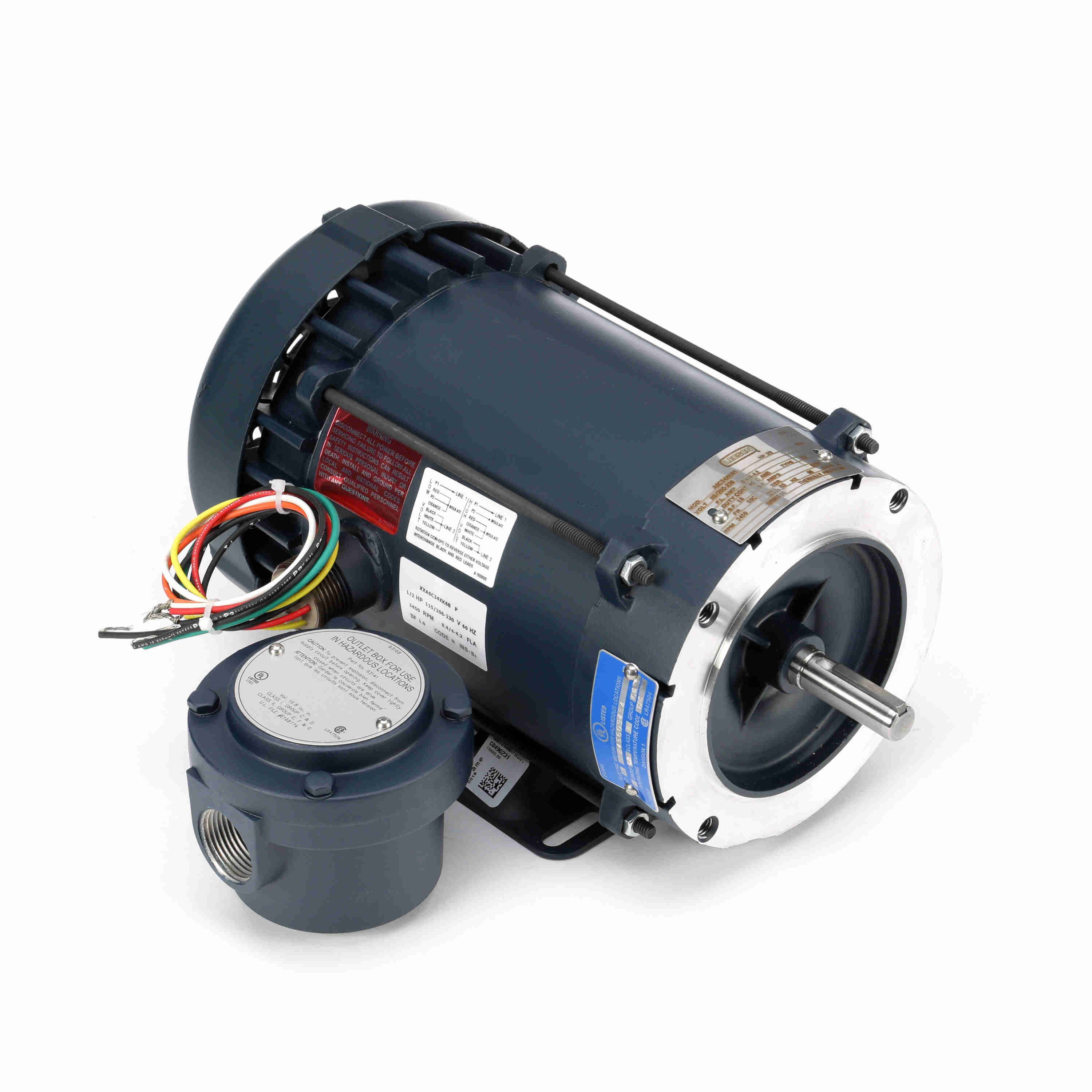

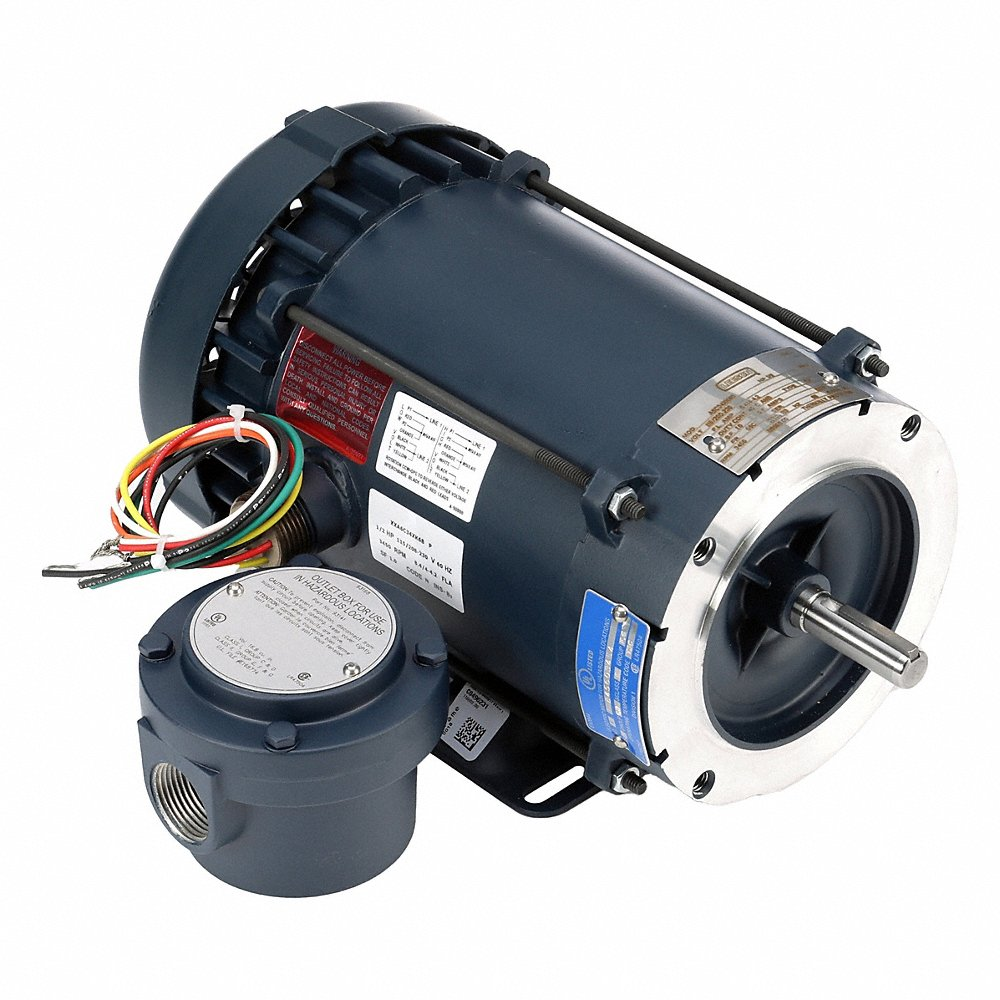

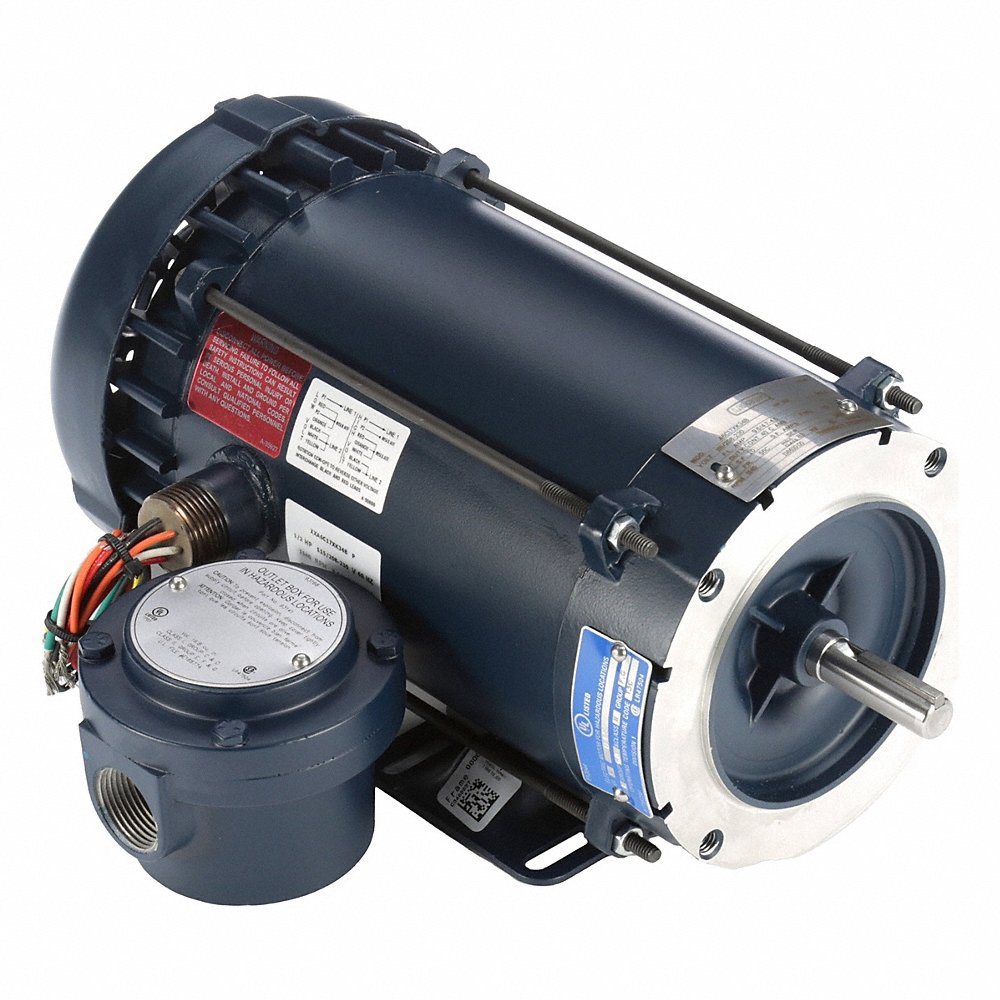

LEESON 116608.00 6C34XK6B Explosion Proof Motor, 0.50 HP, 1 Phase, 60 Hz, 115/208-230V, 3600 RPM
Get it by Wednesday, Apr 1
€885.95 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Explosion Proof Motor |
| Ambient Temp. | 40°C |
| Amps | 8.4/4-4.2A |
| Assembly | A-S90887 |
| Code | N |
| Design | N |
| Design Code | No |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 59.5% |
| Electrical Type | Capacitor Start, Induction Run |
| Enclosure Type | EPFC |
| Frame | 56C |
| Frame Length | 6.31" |
| Frame Material | Rolled Steel |
| Frame Type | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 8.4/4-4.2A |
| Grease Type | Polyrex EM |
| Hazardous Location | Div 1 Exp Proof Cl I Gr Cd Cl Ii Gr Fg T3C |
| Hazardous Location Class | 1C, D/2F, G |
| Height | 10 22/25" |
| Hp | 1/2 hp |
| Insulation Class | Class B |
| Ip Code | IP54 |
| Kva Code | No |
| Kw | 0.37 kW |
| Length | 19 1/2" |
| Lubrication | Polyrex EM |
| Max. Rpm | 3450 RPM |
| Motor Mounting Type | Rigid Base |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Type | Capacitor Start/Induction Run |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3600 RPM |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Rating | 0.37 kW |
| Packaging | B |
| Phase | 1 |
| Power | 0.37 kW |
| Power Factor | 70 |
| Product Datasheet | leeson-116608-00.pdf |
| Rpm | 3400-3600 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 22/25" |
| Shaft Type | NEMA 56 |
| Starting Method | Across The Line |
| Temp. Code | T3C |
| Thermal Protection | Automatic |
| Type | CX |
| Voltage | 115/208-230V |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 12.53 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | MX |
Product Details:
- Eff 100%: 59.5
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6203
- Winding: ZC280
- GROUP: 3
- Paint: BLUE - LEESON (ENAMEL)
