LEESON 116607.00 A6C17XK31B General Purpose Motor | AJ2QTR A6C17XK31B

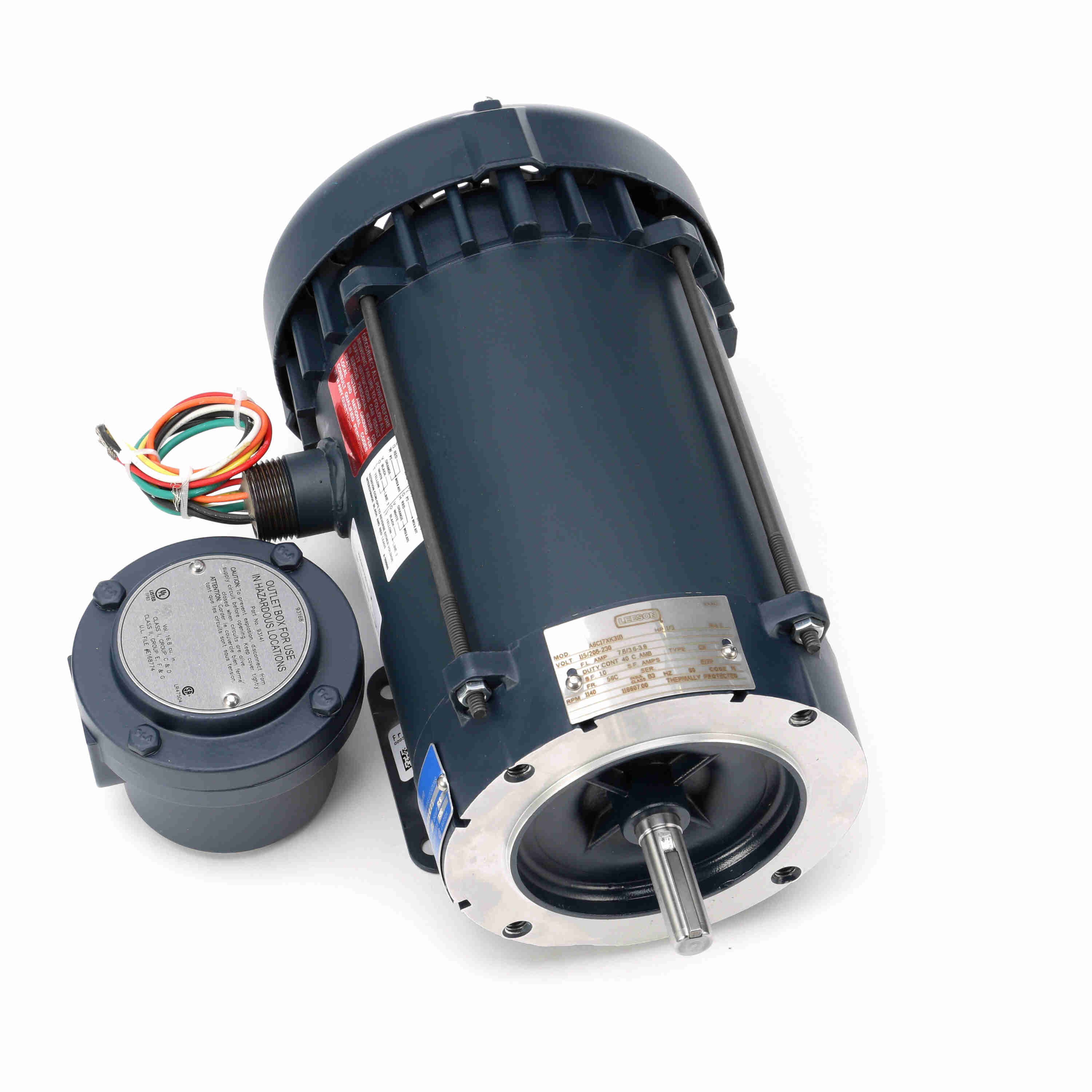

LEESON 116607.00 6C17XK31B Explosion Proof Motor, 0.33 HP, 1 Phase, 60 Hz, 115/208-230V, 1200 RPM

Item: AJ2QTRModel: 116607.00Cross Ref: 820J61 / 6C17XK31B
Check Availability
In Stock
HP
Frame

Get it by Monday, May 18

€1,052.13 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Explosion Proof Motor
Ambient Temp. 40°C
Amps 7.8/3.6-3.9A
Assembly A-S90894
Code N
Design N
Design Code No
Drive End Bearing Size 6203
Drive End Bearing Type Ball
Duty Cycle Continuous
Efficiency 52.5%
Electrical Type Capacitor Start, Induction Run
Enclosure Type EPFC
Frame 56C
Frame Length 6.81"
Frame Material Rolled Steel
Frame Type 56C
Frequency 60 Hz
Full Load Amps 7.8/3.6-3.9A
Grease Type Polyrex EM
Hazardous Location Div 1 Exp Proof Cl I Gr Cd Cl Ii Gr Fg T3C
Hazardous Location Class 1C, D/2F, G
Height 10 22/25"
Hp 33/100 hp
Insulation Class Class B
Ip Code IP54
Kva Code No
Kw 0.25 kW
Length 19 1/2"
Lubrication Polyrex EM
Max. Rpm 1140 RPM
Motor Mounting Type Rigid Base
Motor Orientation Horizontal
Motor Shaft Rotation Selective Counter Clockwise
Motor Type Capacitor Start/Induction Run
Mounting Type Rigid Base
Nameplate Rpm 1200 RPM
No. Of Poles 6
No. Of Speeds 1
Opp. Drive End Bearing Size 6203
Opp. Drive End Bearing Type Ball
Output Rating 0.246 kW
Packaging B
Phase 1
Power 0.246 kW
Power Factor 53.8
Product Datasheet leeson-116607-00.pdf
Rpm 1100-1200 RPM
Service Factor 1
Shaft Dia. 5/8"
Shaft Length 1 22/25"
Shaft Type NEMA 56
Starting Method Across The Line
Temp. Code T3C
Thermal Protection Automatic
Type CX
Voltage 115/208-230V
Width 10 11/25"

Shipping Info:

Ship weight (kg) 14.85
Ship height (cm)27.64
Ship length (cm)49.53
Ship width (cm)26.52
Country of OriginMX

Product Details:

    • Eff 100%: 52.5
    • Bearing OPE: 6203
    • CC Number: EXEMPT
    • Bearing PE: 6203
    • Nameplate: 080020
    • Winding: ZC605
    • GROUP: 3
    • Paint: BLUE - LEESON (ENAMEL)

Documentation:
