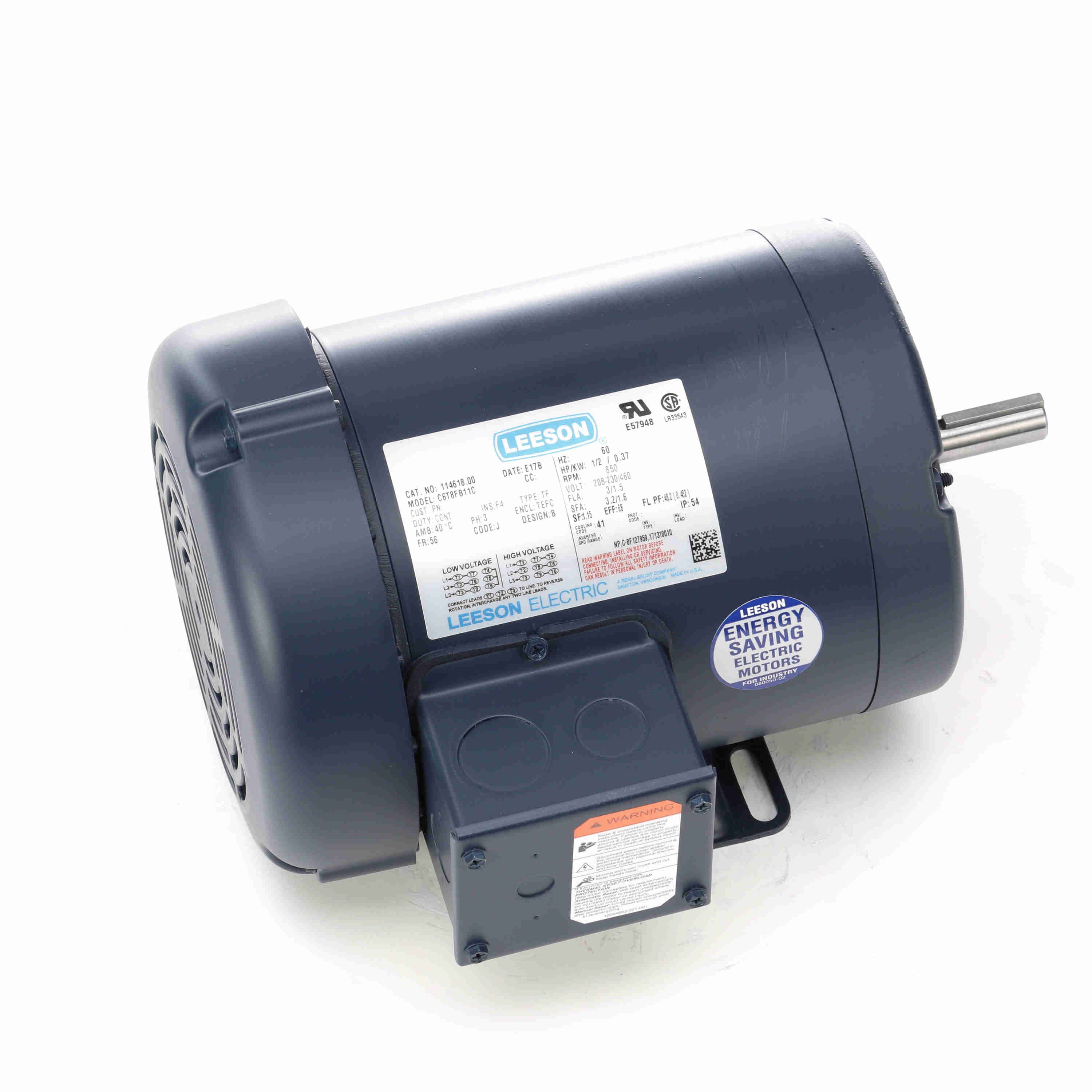

LEESON 114618.00 C6T8FB11C General Purpose Motor | AJ2QPK C6T8FB11C

LEESON 114618.00 C6T8FB11C General Purpose Motor, 0.50 HP, 3 Phase, 60 Hz, 230/460V, 900 RPM

Item: AJ2QPKModel: 114618.00Cross Ref: 820HR8 / C6T8FB11C
Check Availability
In Stock
Hp
Nameplate Rpm

Get it by Monday, Dec 22

€1,507.33
10.00% off
€1,356.60 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Ambient Temp. 40°C
Amps 3/1.5A
Code J
Design Code B
Drive End Bearing Size 6203
Drive End Bearing Type Ball
Duty Cycle Continuous
Efficiency 68%
Electrical Type Squirrel Cage, Induction Run
Enclosure Type Tefc
Frame 56
Frame Length 6"
Frame Material Rolled Steel
Frame Type 56
Frequency 60 Hz
Full Load Amps 3/1.5A
Grease Type Polyrex EM
Height 10 22/25"
Hp 1/2 hp
Insulation Class Class F
Ip Code IP54
Kva Code J
Kw 0.37 kW
Length 14 11/25"
Lubrication Polyrex EM
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Orientation Horizontal
Motor Shaft Rotation Reversible
Motor Shaft Rotation Clockwise, Counter Clockwise
Motor Type Squirrel Cage Induction Run
Mounting Type Rigid Base
Nameplate Rpm 900 RPM
Nema Design B, J
No. Of Poles 8
No. Of Speeds 1
Opp. Drive End Bearing Size 6203
Opp. Drive End Bearing Type Ball
Output Kw 0.37 kW
Packaging B
Phase 3
Power Factor 48.2
Resistance Main 38 ohms
Rpm 850 RPM
Service Factor 1.15
Shaft Dia. 5/8"
Shaft Length 1 22/25"
Shaft Type NEMA 56
Starting Method Across The Line
Thermal Protection No Protection
Type TF
Voltage 208-230/460V
Width 10 11/25"

Shipping Info:

Ship weight (kg) 13.5
Ship height (cm)27.64
Ship length (cm)36.68
Ship width (cm)26.52
Country of OriginUS

Product Details:

    • Eff 100%: 68
    • Bearing OPE: 6203
    • CC Number: EXEMPT
    • Bearing PE: 6203
    • Nameplate: 993500
    • Winding: T63826
    • GROUP: 3
    • Paint: BLUE - LEESON (ENAMEL)
    • S. F Amps: 3.2 / 1.6

Product Variants

ProductModelVoltageNameplate RpmHpFrequencyFull Load AmpsMotor TypeService FactorMotor Enclosure DesignPrice
LEESON 100905.00 C4T34FB2D General Purpose Motor | AJ2PJV C4T34FB2D 100905.00208-230/460V3600 RPM1/2 hp60 Hz1.8/0.9ASquirrel Cage Induction Run1Totally Enclosed Fan Cooled€394.42
LEESON 100961.00 C4T17FB4C General Purpose Motor | AJ2PKA C4T17FB4C 100961.00208-230/460V1800 RPM1/2 hp60 Hz1.9-2/1ASquirrel Cage Induction Run1.15Totally Enclosed Fan Cooled€495.85
LEESON 101647.00 C4T17FB10C General Purpose Motor | AJ2PLY C4T17FB10C 101647.00208-230/460V1800 RPM33/100 hp60 Hz1.5-1.6/0.8ASquirrel Cage Induction Run1.15Totally Enclosed Fan Cooled€658.17
LEESON 103020.00 C4T17FH13A General Purpose Motor 50-60 Hertz | AJ2PQT C4T17FH13A 103020.00208-230/460V1800/1500 RPM1/2 hp60 Hz1.8/0.9ASquirrel Cage Induction Run1.25Totally Enclosed Fan Cooled€606.73
LEESON 116739.00 C6T17FB152B General Purpose Motor 50-60 Hertz | AJ2QUU C6T17FB152B 116739.00208-230/460V1800/1500 RPM3/4 hp60 Hz2.4/1.2ASquirrel Cage Induction Run1.25Totally Enclosed Fan Cooled€595.13
LEESON 116758.00 C6T34FB50B General Purpose Motor 50-60 Hertz | AJ2QVN C6T34FB50B 116758.00230/460V3600/3000 RPM1 1/2 hp60 Hz4/2ASquirrel Cage Induction Run1.25Totally Enclosed Fan Cooled€772.10
LEESON 116761.00 C6T17FB154B General Purpose Motor 50-60 Hertz | AJ2QVQ C6T17FB154B 116761.00230/460V1800/1500 RPM2 hp60 Hz5.8/2.9ASquirrel Cage Induction Run1.25Totally Enclosed Fan Cooled€806.64
