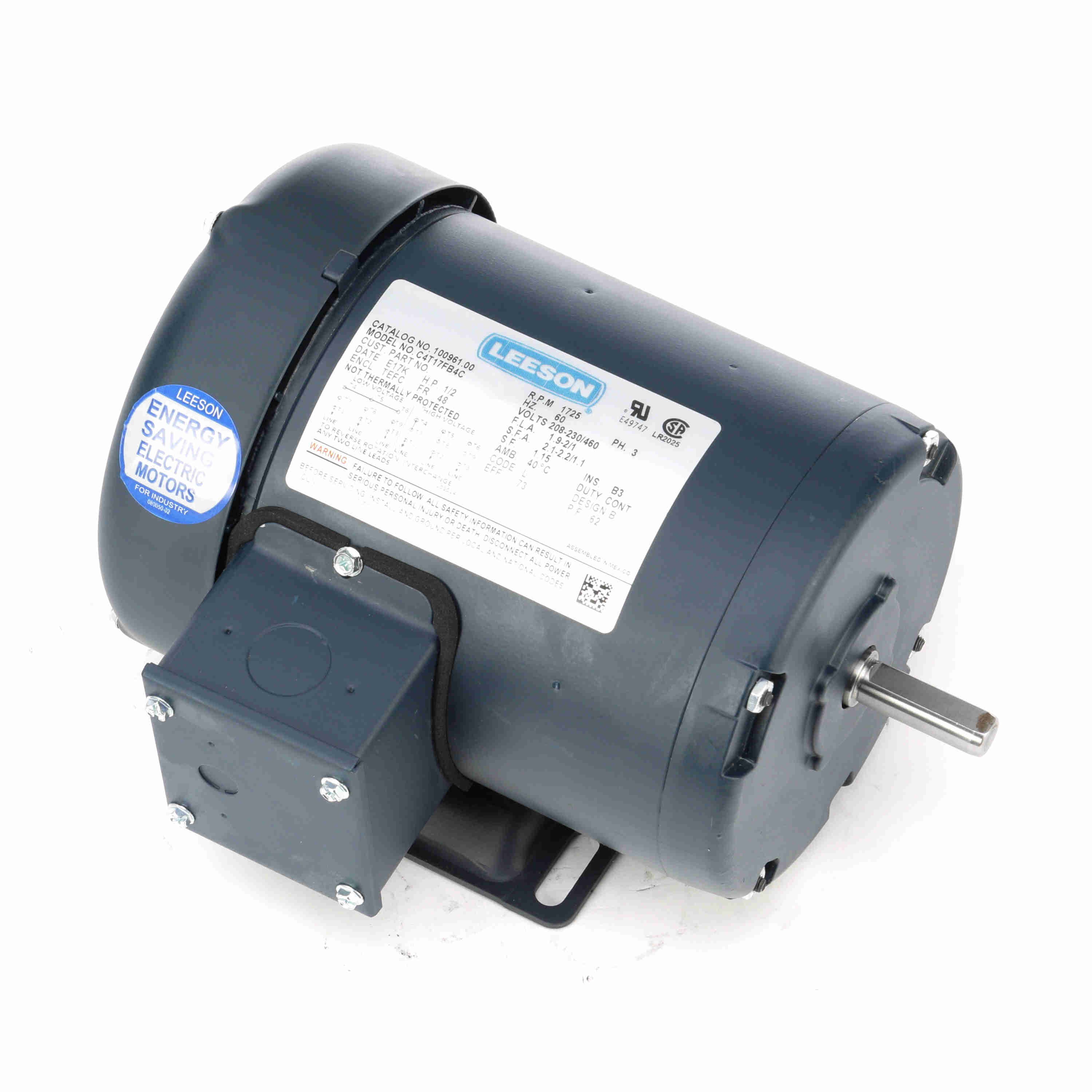

LEESON 100961.00 C4T17FB4C General Purpose Motor | AJ2PKA C4T17FB4C

LEESON 100961.00 C4T17FB4C General Purpose Motor, 0.50 HP, 3 Phase, 60 Hz, 230/460V, 1800 RPM

Item: AJ2PKAModel: 100961.00Cross Ref: 820HM8 / C4T17FB4C
Check Availability
In Stock
Hp
Nameplate Rpm

Get it by Monday, May 25

€495.85 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Ambient Temp. 40°C
Amps 2/1A
Code L
Drive End Bearing Size 6203
Drive End Bearing Type Ball
Duty Cycle Continuous
Efficiency 73%
Electrical Type Squirrel Cage, Induction Run
Enclosure Type Tefc
Frame 48
Frame Length 5 1/4"
Frame Material Rolled Steel
Frame Type 48
Frequency 60 Hz
Full Load Amps 1.9-2/1A
Grease Type Multemp SRL
Height 8 3/4"
Hp 1/2 hp
Insulation Class Class B
Ip Code IP43
Kva Code L
Kw 0.37 kW
Length 13 3/4"
Lubrication Multemp SRL
Max. Rpm 1725 RPM
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Orientation Horizontal
Motor Shaft Rotation Clockwise, Counter Clockwise
Motor Shaft Rotation Reversible
Motor Type Squirrel Cage Induction Run
Mounting Type Rigid Base
Nameplate Rpm 1800 RPM
Nema Design B, L
No. Of Poles 4
No. Of Speeds 1
Opp. Drive End Bearing Size 6203
Opp. Drive End Bearing Type Ball
Output Kw 0.37 kW
Packaging B
Phase 3
Power Factor 62
Product Datasheet leeson-100961-00.pdf
Resistance Main 8.91 ohms
Rpm 1700-1800 RPM
Service Factor 1.15
Shaft Dia. 1/2"
Shaft Length 1 1/2"
Shaft Type NEMA 48
Starting Method Across The Line
Thermal Protection No Protection
Type TF
Voltage 208-230/460V
Width 7 22/25"

Shipping Info:

Ship weight (kg) 8.1
Ship height (cm)22.23
Ship length (cm)34.93
Ship width (cm)20.02
Country of OriginMX

Product Details:

    • Eff 100%: 73
    • Bearing OPE: 6203
    • CC Number: EXEMPT
    • Bearing PE: 6203
    • Nameplate: A-92005-4
    • Winding: TE48415
    • GROUP: 3
    • Paint: BLUE - LEESON (EPOXY)
    • S. F Amps: 2.1-2.2 / 1.1

Documentation:

Datasheet

Product Variants

ProductModelVoltageFull Load AmpsHpPhaseService FactorMounting TypeFrequencyNameplate RpmPrice
MARATHON MOTORS 5KCR46JN0087Y General Purpose Motor Carbon Steel Tefc 1/3 Hp 1725/1425 Rpm 56c | AA9ZKL 1K124 / E255 5KCR46JN0087Y115/230V AC3.8-4/1.9-2A1/3 hp11.35Face/Base60 Hz1725 RPM€933.52
MARATHON MOTORS 5KCR46MN0055Y General Purpose Motor Carbon Steel Tefc 1/2 Hp 1725/1425 Rpm 56c | AA9ZKP 1K127 / E264 5KCR46MN0055Y115/230V AC5.6-5.8/2.8-2.9A1/2 hp11.25Face/Base50/60 Hz1725 RPM€841.44
MARATHON MOTORS 5KCR46MN0093 General Purpose Motor Carbon Steel Tefc 1/2 Hp 1725/1425 Rpm 56c | AA9ZKQ 1K128 / E265 5KCR46MN0093115/230V AC5.6-5.8/2.8-2.9A1/2 hp11.25Face60 Hz1725 RPM€814.28
MARATHON MOTORS 5KCR46MN0055X General Purpose Motor Carbon Steel Tefc 1/2 Hp 1725/1425 Rpm 56c | AA9ZKR 1K129 / E266 5KCR46MN0055X115/230V AC5.6-5.8/2.8-2.9A1/2 hp11.25Face/Base60 Hz1725 RPM€956.68
MARATHON MOTORS 5KCR49PN0099X General Purpose Motor Carbon Steel Tefc 3/4 Hp 1725/1425 Rpm 56c | AA9ZKV 1K132 / E275 5KCR49PN0099X115/230V AC8.8-9/4.4-4.5A3/4 hp11.25Face/Base50/60 Hz1725 RPM€1,116.48
MARATHON MOTORS 5KCR49UN0107 General Purpose Motor Carbon Steel Tefc 1 Hp 1725/1425 Rpm 56c | AA9ZKX 1K134 / EG283 5KCR49UN0107115/230V AC11.4-11.8/5.7-5.9A1 hp11.15Face60 Hz1725 RPM€1,031.58
MARATHON MOTORS 5KCR49UN0106X General Purpose Motor Carbon Steel Tefc 1 Hp 1725/1425 Rpm 56c | AA9ZKY 1K135 / EG284 5KCR49UN0106X115/230V AC11.4-11.8/5.7-5.9A1 hp11.15Face/Base60 Hz1725 RPM€1,060.60
