LEESON 113256.00 M6C17FB66J Agricultural Motor, 0.33 HP, 1 Phase, 60 Hz, 115/230V, 1800 RPM
Get it by Tuesday, Dec 23
10.00% off
€712.02 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Farm Duty Motor |
| Amps | 6.4/3.2A |
| Application | Farm Duty |
| Assembly | 042545 |
| Bearing Type | Ball |
| Code | M |
| Design Code | L |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 62% |
| Electrical Type | Capacitor Start, Induction Run |
| Enclosure Type | Tefc |
| Finish | Enamel |
| Frame | 56 |
| Frame Length | 5 1/2" |
| Frame Material | Rolled Steel |
| Frame Type | 56 |
| Frequency | 60 Hz |
| Full Load Amps | 6.4/3.2-3.4A |
| Height | 10 22/25" |
| Hp | 33/100 hp |
| Hz | 60 Hz |
| Includes | Gasketed Conduit Box, Shaft Slinger |
| Ins. Class | Class B |
| Insulation Class | Class B |
| Ip Code | IP54 |
| Kva Code | M |
| Kw | 0.25 kW |
| Length | 14 11/25" |
| Length Less Shaft | 8 5/8" |
| Lubrication | Polyrex EM |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Max. Rpm | 1725 RPM |
| Motor Application | Farm Duty |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Orientation | Horizontal |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | High Torque |
| Motor Thermal Protection | Manual |
| Motor Type | Capacitor Start |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1725 RPM |
| Nema Design | L |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 62% |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Power | 0.246 kW |
| Overall Length | 10 1/2" |
| Packaging | B |
| Phase | 1 |
| Power | 0.246 kW |
| Power Factor | 55 |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 22/25" |
| Shaft Type | NEMA 56 |
| Starting Method | Across The Line |
| Thermal Protection | Manual |
| Type | CF |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 115/208-230V |
| Weight | 23 lbs. |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 10.35 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 36.68 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- Eff 100%: 62
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6203
- Nameplate: 993500
- Winding: C634260
- GROUP: 3
- Paint: RED (ENAMEL)
- S. F Amps: 6.6 / 3.5-3.3
Product Variants
| Product | Model | Voltage | Hp | Nameplate Rpm | Frame | Motor Application | Motor Design | Insulation Class | Service Factor | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
110086.00 | 115/208-230V | 1/2 hp | 1725 RPM | 56 | Farm Duty | Capacitor Start | Class B | 1.15 | €378.51 | |
 |
110087.00 | 115V | 3/4 hp | 1725 RPM | 56 | Farm Duty | Capacitor Start | Class B | 1.15 | €649.32 | |
 |
110088.00 | 115V | 1 hp | 1725 RPM | 56 | Farm Duty | Capacitor Start | Class F | 1 | €1,061.00 | |
 |
110089.00 | 115/208-230V | 1 1/2 hp | 1725 RPM | 56H | Farm Duty | Capacitor Start/Run | Class F | 1.15 | €1,110.98 | |
 |
110090.00 | 230V | 2 hp | 1725 RPM | 56HZ | Farm Duty | Capacitor Start/Run | Class F | 1.15 | €1,320.38 | |
 |
113938.00 | 115/208-230V | 1 1/2 hp | 1725 RPM | 56HZ | Farm Duty | Capacitor Start/Run | Class F | 1.15 | €626.04 | |
 |

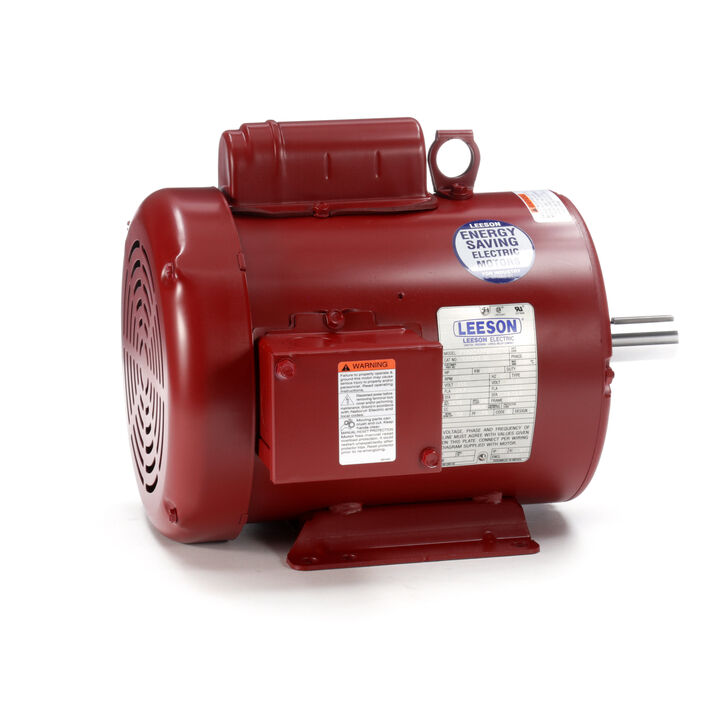

131541.00 | 115/208-230V | 2 hp | 1740 RPM | 182T | Farm Duty | Capacitor Start | Class F | 1.15 | €1,368.19 |
