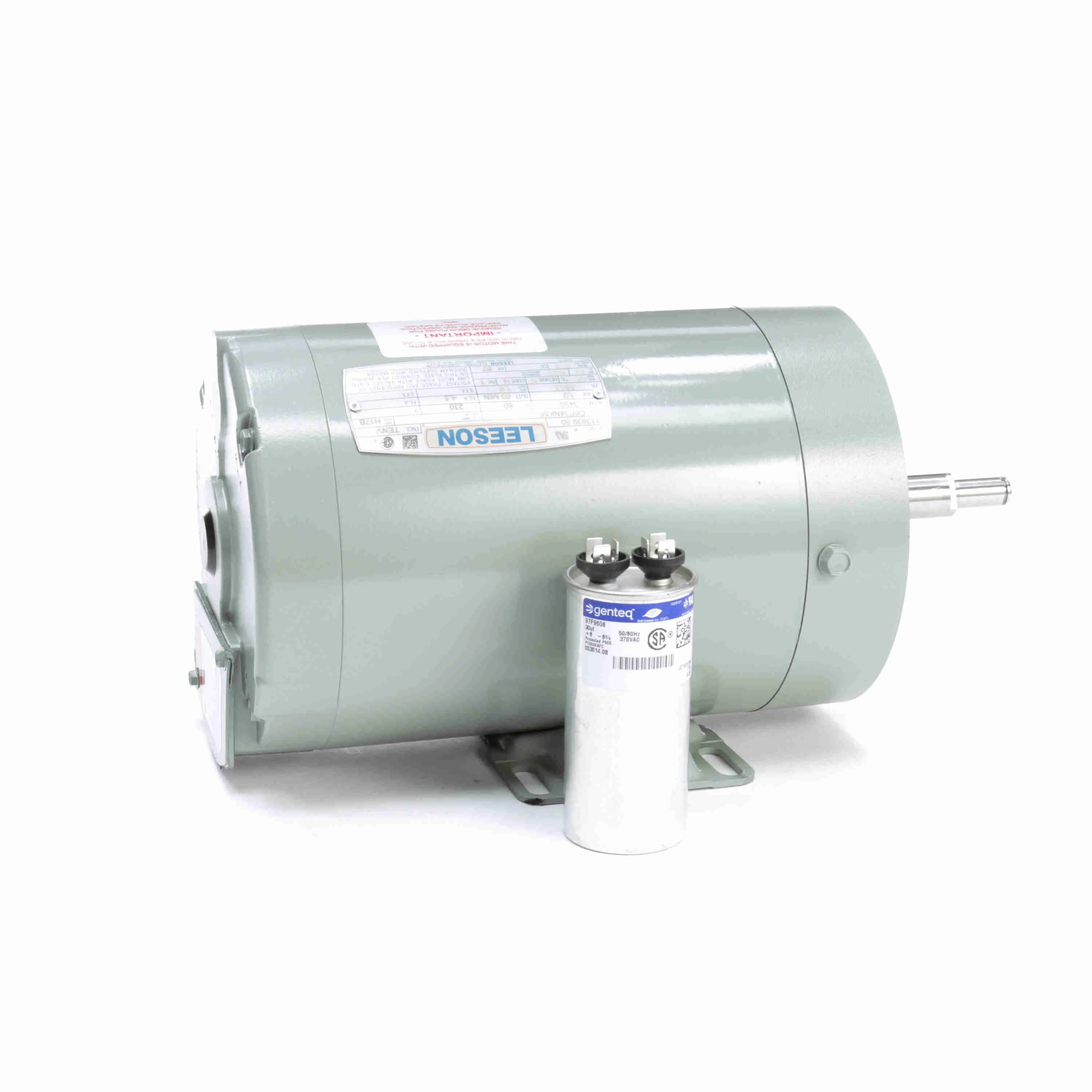

LEESON 113939.00 C6P34NK5F General Purpose Farm Duty Motor, 0.50 HP, 1 Phase, 60 Hz, 230V, 3600 RPM
Get it by Tuesday, Aug 25
€568.52 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Amps | 4.5A |
| Code | H |
| Design | H, N |
| Design Code | No |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | 60 min. |
| Efficiency | 57.5% |
| Electrical Type | Permanent Split Capacitor |
| Enclosure Type | Tenv |
| Frame | 56CZ |
| Frame Length | 7" |
| Frame Material | Rolled Steel |
| Frame Type | 56CZ |
| Frequency | 60 Hz |
| Full Load Amps | 4.5A |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 1/2 hp |
| Insulation Class | Class F |
| Ip Code | IP43 |
| Kva Code | H |
| Kw | 0.37 kW |
| Length | 14 11/25" |
| Lubrication | Polyrex EM |
| Max. Speed | 3450 RPM |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Mounting Type | Rigid Base |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Type | Permanent Split Capacitor |
| Mounting Type | Rigid Base |
| Nameplate Speed | 3450 RPM |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Opp Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 0.37 kW |
| Packaging | B |
| Phase | 1 |
| Power | 0.37 kW |
| Power Factor | 67 |
| Product Datasheet | leeson-113939-00.pdf |
| Resistance Main | 2.455 ohms |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 3.11" |
| Shaft Type | Single Special Extension |
| Speed | 3400-3600 RPM |
| Starting Method | Across The Line |
| Thermal Protection | No Protection |
| Type | PN |
| Voltage | 230V |
| Width | 7.94" |
Shipping Info:
| Ship weight (kg) | 17.55 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 36.68 |
| Ship width (cm) | 20.17 |
| Country of Origin | US |
Product Details:
- Eff 100%: 57.5
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6205
- Nameplate: 004001
- Winding: P63253
- GROUP: 4
- Paint: GRAY - LIGHT (EPOXY)
