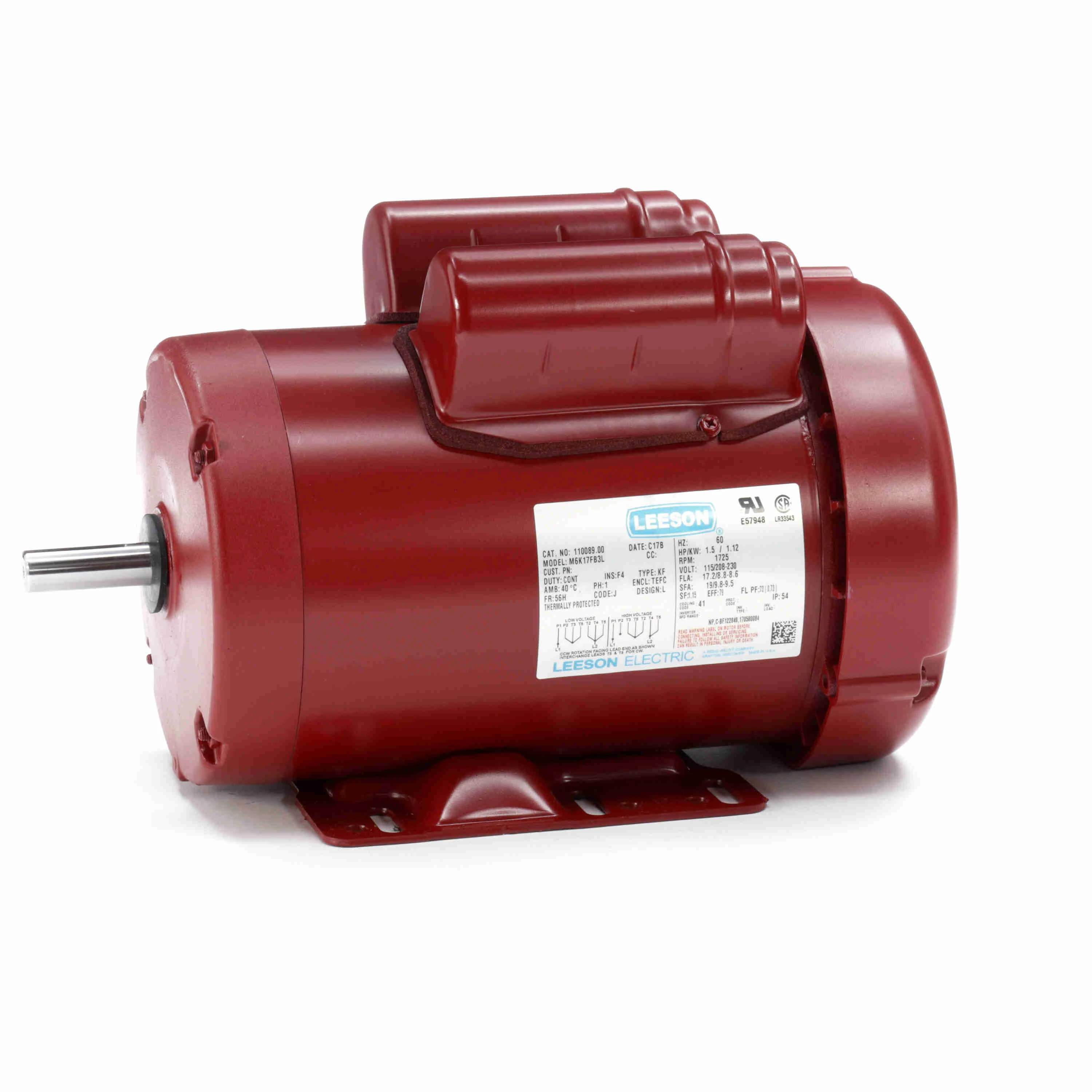

LEESON 110089.00 M6K17FB3L Agricultural Motor, 1.50 HP, 1 Phase, 60 Hz, 115/230V, 1800 RPM

Item: AJ2QAFModel: 110089.00Cross Ref: 48ZJ42 / M6K17FB3L

Check Availability

In Stock

Get it by Wednesday, Dec 24

~~€1,110.98~~

10.00% off

€999.88 /unit

Add To Cart

Request a Quote

Payment

Delivery

Product Specifications:

Item	Farm Duty Motor
Amps	17.2/8.6A
Application	Farm Duty
Assembly	042540
Bearing Type	Ball
Capacitor Required	Yes
Code	J
Design Code	L
Drive End Bearing Size	6203
Drive End Bearing Type	Ball
Duty Cycle	Continuous
Efficiency	79%
Electrical Type	Capacitor Start, Capacitor Run
Enclosure Type	Tefc
Finish	Enamel
Frame	56H
Frame Length	7 1/2"
Frame Material	Rolled Steel
Frame Type	56H
Frequency	60 Hz
Full Load Amps	17.2/8.6-8.8A
Height	10 22/25"
Hp	1 1/2 hp
Hz	60 Hz
Ins. Class	Class B
Insulation Class	Class F
Ip Code	IP54
Kva Code	J
Kw	1.1 kW
Length	14 11/25"
Length Less Shaft	11 1/8"
Lubrication	Polyrex EM
Manufacturers Warranty Length	1 yr.
Max. Ambient Temp.	40°C
Max. Rpm	1725 RPM
Motor Application	Farm Duty
Motor Bearings	Ball
Motor Design	Capacitor Start/Run
Motor Enclosure Design	Totally Enclosed Fan Cooled
Motor Frame Material	Steel
Motor Mounting Position	Horizontal
Motor Mounting Type	Rigid Base
Motor Orientation	Horizontal
Motor Service Factor	1.15
Motor Shaft Design	Keyed
Motor Shaft Rotation	CW/CCW
Motor Sub Application	High Torque
Motor Thermal Protection	Manual
Mounting Type	Rigid Base
Nameplate Rpm	1725 RPM
Nema Design	L
No. Of Poles	4
No. Of Speeds	1
Nominal Efficiency	79%
Opp. Drive End Bearing Size	6203
Opp. Drive End Bearing Type	Ball
Output Power	1.12 kW
Overall Length	13"
Packaging	B
Phase	1
Power	1.12 kW
Power Factor	73
Resistance Main	1.4 ohms
Rpm	1700-1800 RPM
Service Factor	1.15
Shaft Dia.	5/8"
Shaft Length	1 22/25"
Shaft Type	NEMA 56
Starting Method	Across The Line
Thermal Protection	Manual
Type	KF
Usable @ 200v	No
Usable @ 208v	Yes
Voltage	115/208-230V
Weight	29 lbs.
Width	10 11/25"

Shipping Info:

Ship weight (kg)	18
Ship height (cm)	27.64
Ship length (cm)	36.68
Ship width (cm)	26.52
Country of Origin	US

Product Details:

Eff 100%: 79
Bearing OPE: 6203
CC Number: EXEMPT
Bearing PE: 6203
Nameplate: 004024
Winding: K634278
GROUP: 3
Paint: RED - LEESON FARM DUTY
S. F Amps: 19 / 9.8-9.5

Product Variants

Model	Voltage	Hp	Nameplate Rpm	Frame	Motor Application	Motor Design	Insulation Class	Service Factor	Price

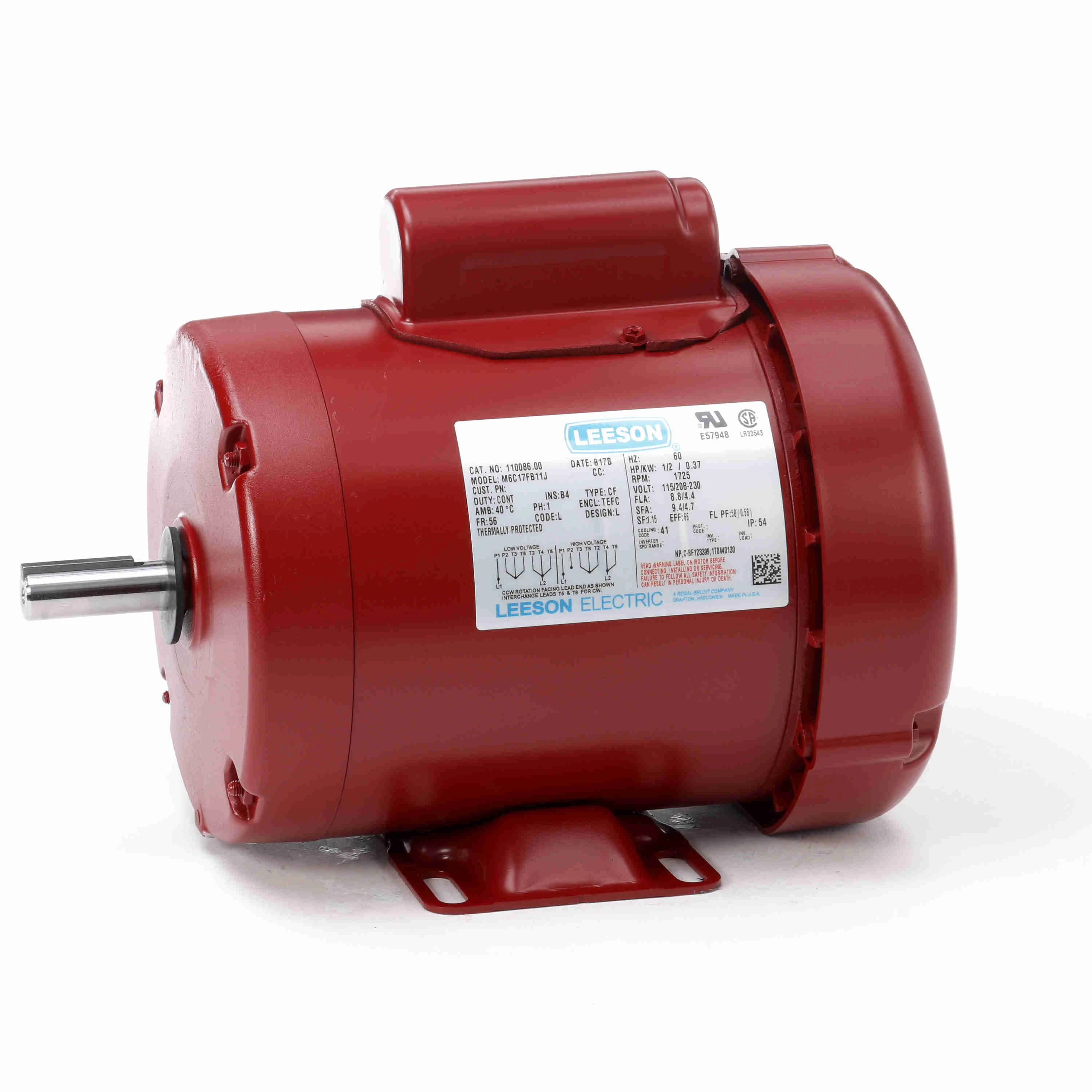

110086.00	115/208-230V	1/2 hp	1725 RPM	56	Farm Duty	Capacitor Start	Class B	1.15	€378.51
110087.00	115V	3/4 hp	1725 RPM	56	Farm Duty	Capacitor Start	Class B	1.15	€649.32

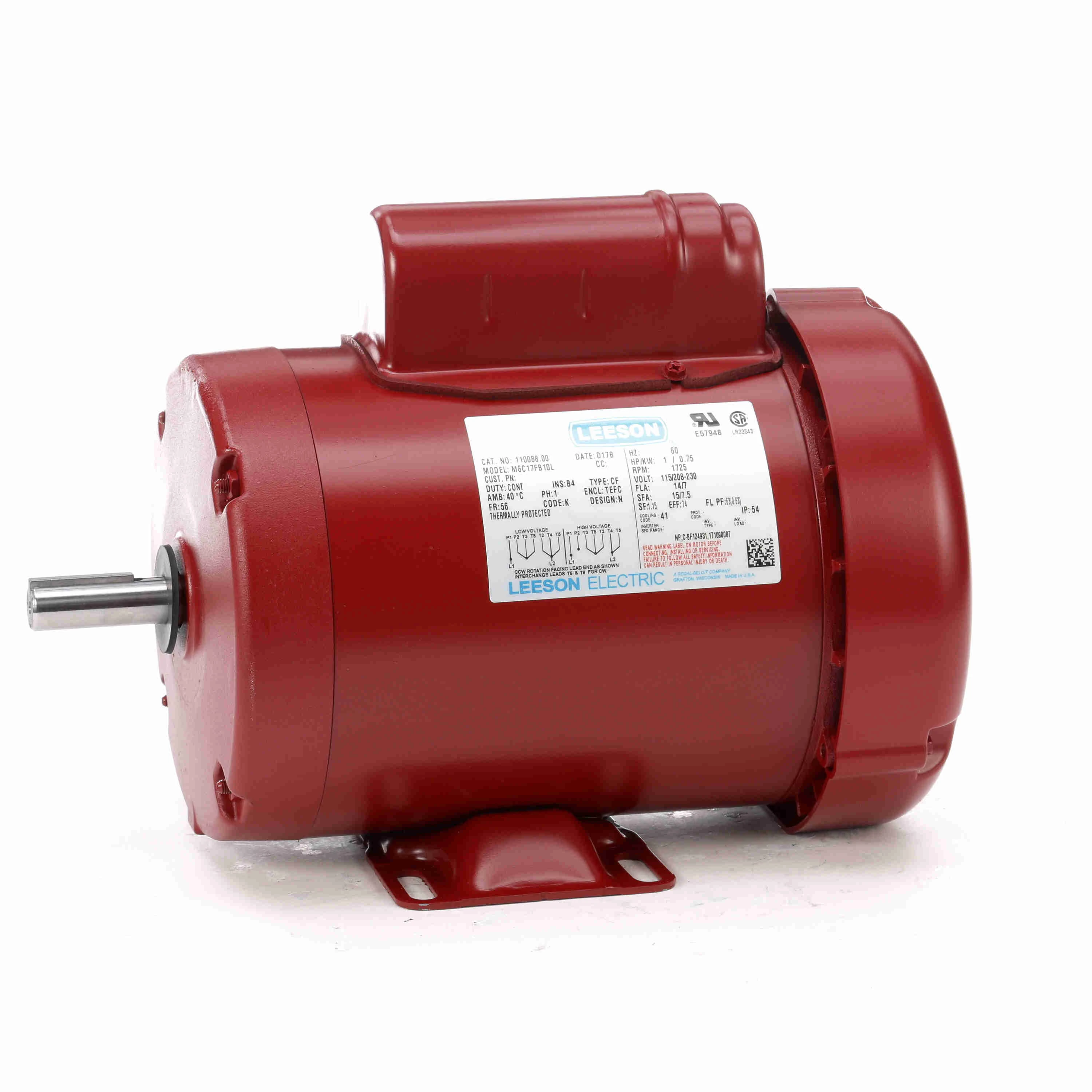

110088.00	115V	1 hp	1725 RPM	56	Farm Duty	Capacitor Start	Class F	1	€1,061.00

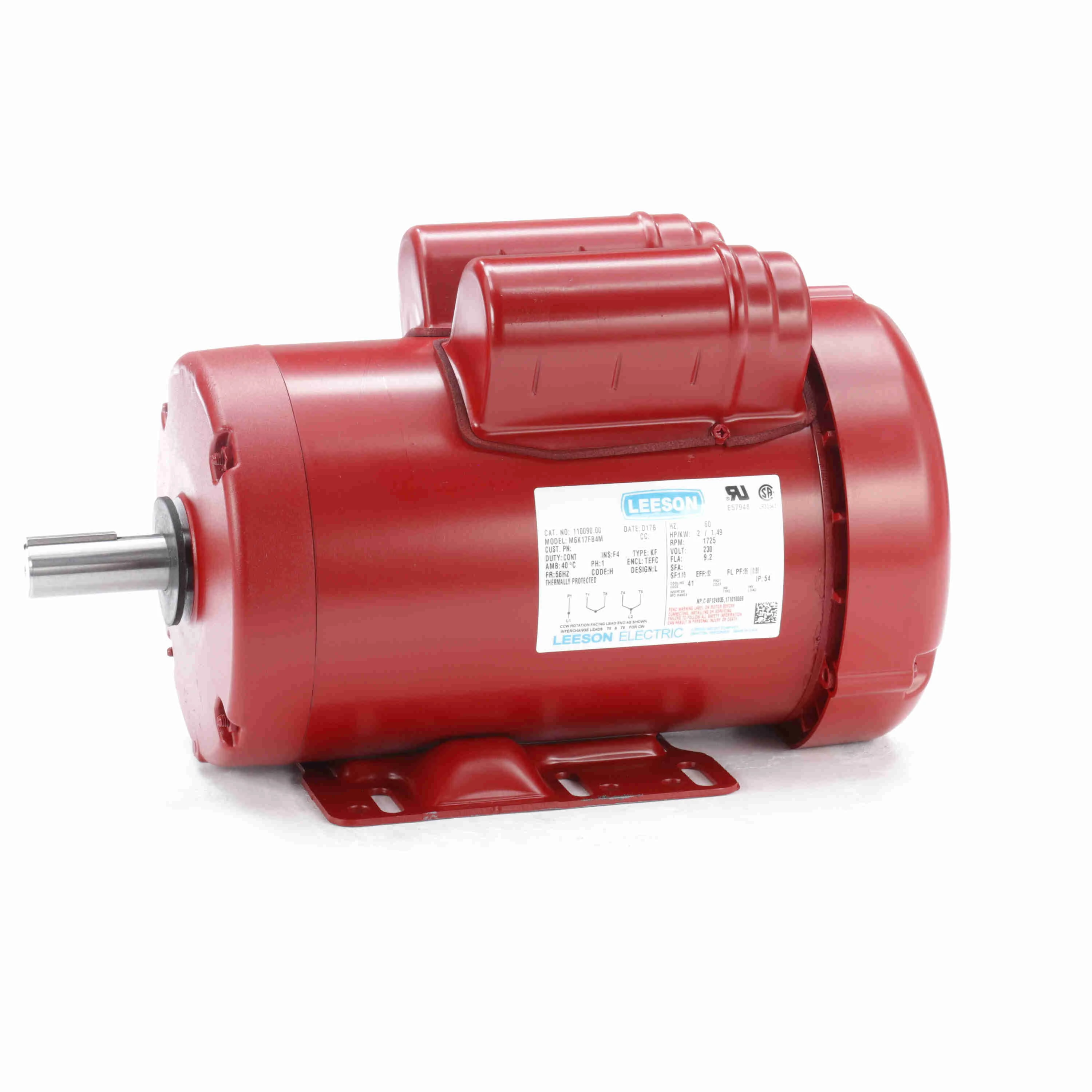

110090.00	230V	2 hp	1725 RPM	56HZ	Farm Duty	Capacitor Start/Run	Class F	1.15	€1,320.38
113256.00	115/208-230V	33/100 hp	1725 RPM	56	Farm Duty	Capacitor Start	Class B	1.15	€791.13
113938.00	115/208-230V	1 1/2 hp	1725 RPM	56HZ	Farm Duty	Capacitor Start/Run	Class F	1.15	€626.04

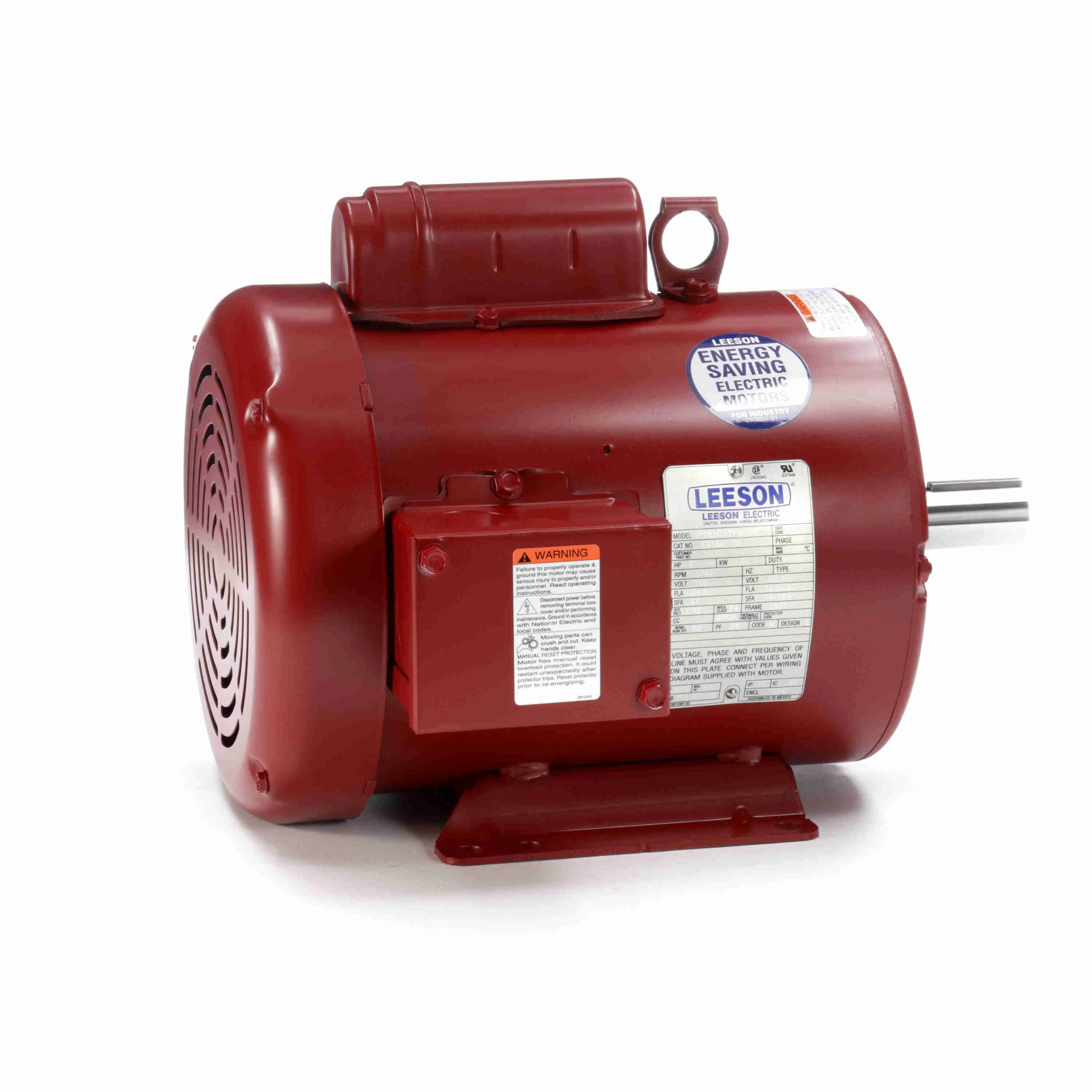

131541.00	115/208-230V	2 hp	1740 RPM	182T	Farm Duty	Capacitor Start	Class F	1.15	€1,368.19
