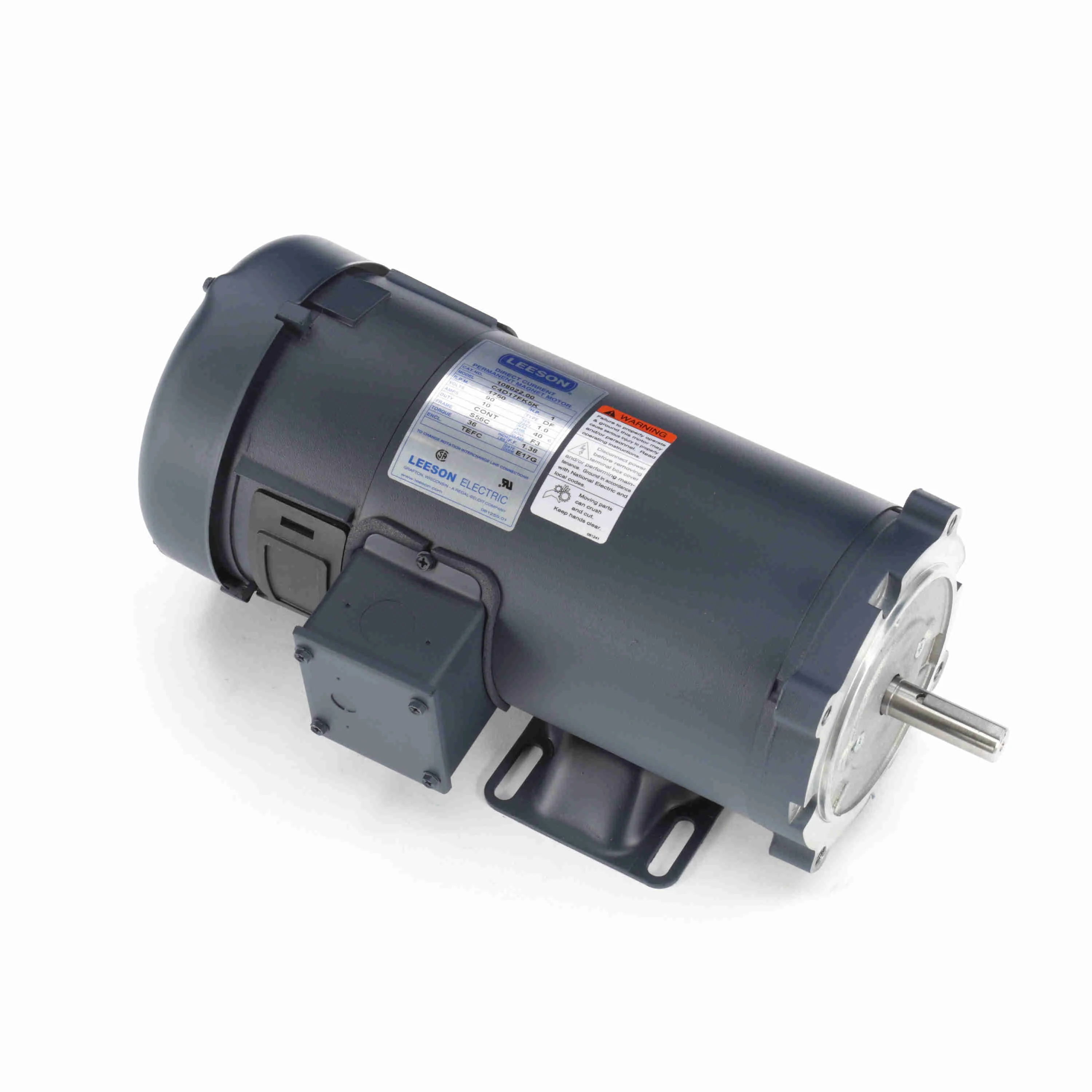

LEESON 108022.00 C4D17FK5L SCR Motor, 1 HP, 90V, 1750 RPM
Get it by Tuesday, Dec 23
10.00% off
€1,555.38 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | DC Motor |
| Amps | 10A |
| Bearing Type | Ball |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 83.7% |
| Enclosure Type | Tefc |
| Form Factor | 1.38 |
| Frame | 56C |
| Frame Length | 7.47" |
| Frame Type | S56C |
| Full Load Amps | 10A |
| Full Load Torque | 36 lbs.-in. |
| Full Load Torque | 36 in.-lbs. |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 1 hp |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Kw | 0.75 kW |
| Length | 19 1/2" |
| Length Less Shaft | 12 7/8" |
| Lubrication | Polyrex EM |
| Max. Ambient Temp. | 40°C |
| Max. Rpm | 1750 RPM |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Permanent Magnet DC |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Type | Face, Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Mounting Type | Face/Base |
| Nameplate Rpm | 1750 RPM |
| No. Of Studs | 4 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Overall Length | 14 13/16" |
| Packaging | PG659401.04Z |
| Power | 0.75 kW |
| Removable Base | Yes |
| Rpm | 1700-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2.06" |
| Stud Size | 3/8"-16 |
| Thermal Protection | No Protection |
| Type | DF |
| Voltage | 90V |
| Weight | 34 lbs. |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 18 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- Bearing OPE: 6203
- Bearing PE: 6203
- Eff 100%: 83.7%
- Nameplate: 081259
- Winding: D5621
- GROUP: 1 A
- Sub Group: A
- Paint: 305000.01
Product Variants
| Product | Model | Voltage | Hp | Nameplate Rpm | Frame | Mounting Type | Thermal Protection | Motor Application | Shaft Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
098000.00 | 90V | 1/2 hp | 1750 RPM | 56C | Face/Base | No Protection | General Application | 5/8" | €1,072.63 | |
 |
098002.00 | 90V | 1/4 hp | 1750 RPM | 56C | Face/Base | No Protection | General Application | 5/8" | €818.74 | |
 |
098003.00 | 180V | 1/4 hp | 1750 RPM | 56C | Rigid Base | No Protection | General Purpose | 5/8" | €878.49 | |
 |
098004.00 | 90V | 33/100 hp | 1750 RPM | 56C | Face/Base | No Protection | General Application | 5/8" | €932.08 | |
 |
098006.00 | 90V | 1/2 hp | 2500 RPM | 56C | Face/Base | No Protection | General Application | 5/8" | €995.73 | |
 |
098007.00 | 180V | 1/2 hp | 2500 RPM | 56C | Rigid Base | No Protection | - | 5/8" | €548.36 | |
 |
098008.00 | 180V | 1/2 hp | 1750 RPM | 56C | Face/Base | No Protection | General Application | 5/8" | €1,210.31 |
