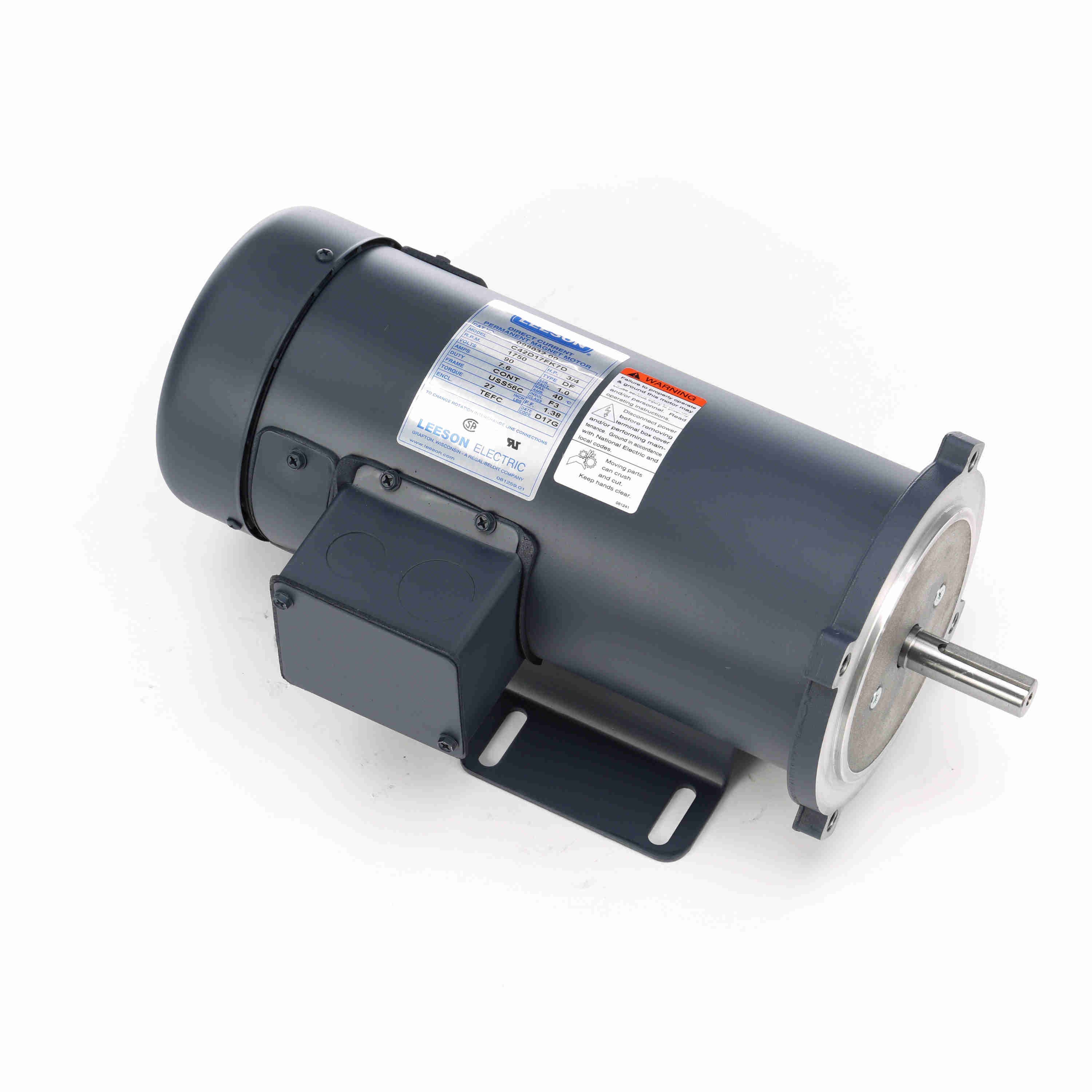

LEESON 098032.00 C42D17FK7D SCR Motor, 0.75 HP, 90V, 1750 RPM
Get it by Tuesday, Aug 18
Payment
Delivery
Product Specifications:
| Item | DC Motor |
| Amps | 7.6A |
| Bearing Type | Ball |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 84.2% |
| Enclosure Type | Tefc |
| Form Factor | 1.38 |
| Frame | 56C |
| Frame Length | 9 1/2" |
| Frame Type | SS56C |
| Full Load Amps | 7.6A |
| Full Load Torque | 27 lbs.-in. |
| Full Load Torque | 27 in.-lbs. |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 3/4 hp |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Kw | 0.56 kW |
| Length | 19 1/2" |
| Length Less Shaft | 11 7/8" |
| Lubrication | Polyrex EM |
| Max. Ambient Temp. | 40°C |
| Max. Speed | 1750 RPM |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Permanent Magnet DC |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Type | Face, Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW, CCW |
| Motor Thermal Protection | None |
| Mounting Type | Face, Base |
| Nameplate Speed | 1750 RPM |
| No. Of Studs | 4 |
| Opp Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Overall Length | 13 13/16" |
| Packaging | PG659401.04Z |
| Power | 0.56 kW |
| Product Datasheet | leeson-098032-00.pdf |
| Removable Base | Yes |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2.06" |
| Speed | 1700-1800 RPM |
| Stud Size | 3/8"-16 |
| Thermal Protection | No Protection |
| Type | DF |
| Voltage | 90V |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 15.3 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
Leeson 098032.00 DC motor provides a high starting torque that remains constant across the speed range. It is ideal for use when the load does not change with the speed. This Leeson DC motor is intended for mechanical loads or difficult-to-start applications in hoists, conveyor belts, positive displacement pumps and mixers.
Features:
- Leeson 098032.00 DC motor has a TEFC enclosure that keeps motor windings clean, cool and dry.
- It features a C-Face and removable base for easy installation.
- This Leeson DC motor is available in Class F insulation to withstand temperatures up to 40 degrees Celsius.
- Its ball bearings handle heavy axial and radial loads.
Frequently Asked Questions:
Q. What does continuous duty operation mean?
A. Continuous duty operation refers to the ability of an electric motor, to run without interruption for extended periods.
Q. What is the purpose of a shaft in a motor?
A. A shaft is a cylindrical component that extends from the housing and motor. It transforms energy from the motor into end-use applications.
Q. What is the difference between TEBC and TEFC motors?
A. Totally enclosed blower-cooled (TEBC) motors are nearly identical to TEFC motors, with the exception that the motor body is cooled by a separate blower mounted on the body rather than a shaft-mounted fan while the motor is operating at high speeds.
Q. How can I extend the life of my Leeson 098032.00 DC motor?
A. Avoid overloading the motor and keep it clean & free of debris. Also, ensure proper ventilation for cooling.
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Shaft Dia. | Amps | Mounting Type | Speed | Type | Nameplate Speed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
098000.00 | 90V | 1/2 hp | 5/8" | 5A | Face, Base | 1700-1800 RPM | DF | 1750 RPM | €1,074.14 | |
 |
098002.00 | 90V | 1/4 hp | 5/8" | 2.5A | Face, Base | 1700-1800 RPM | DF | 1750 RPM | €776.23 | |
 |
098003.00 | 180V | 1/4 hp | 5/8" | 1.4A | Rigid Base | 1700-1800 RPM | DF | 1750 RPM | €826.57 | |
 |
098004.00 | 90V | 33/100 hp | 5/8" | 3.5A | Face, Base | 1700-1800 RPM | DF | 1750 RPM | €909.70 | |
 |
098006.00 | 90V | 1/2 hp | 5/8" | 5A | Face, Base | 2500 RPM | SCR Motor | 2500 RPM | €1,041.94 | |
 |
098007.00 | 180V | 1/2 hp | 5/8" | 2.5A | Rigid Base | 2500 RPM | DF | 2500 RPM | €548.36 | |
 |
098008.00 | 180V | 1/2 hp | 5/8" | 2.5A | Face, Base | 1700-1800 RPM | DF | 1750 RPM | €1,058.89 |
