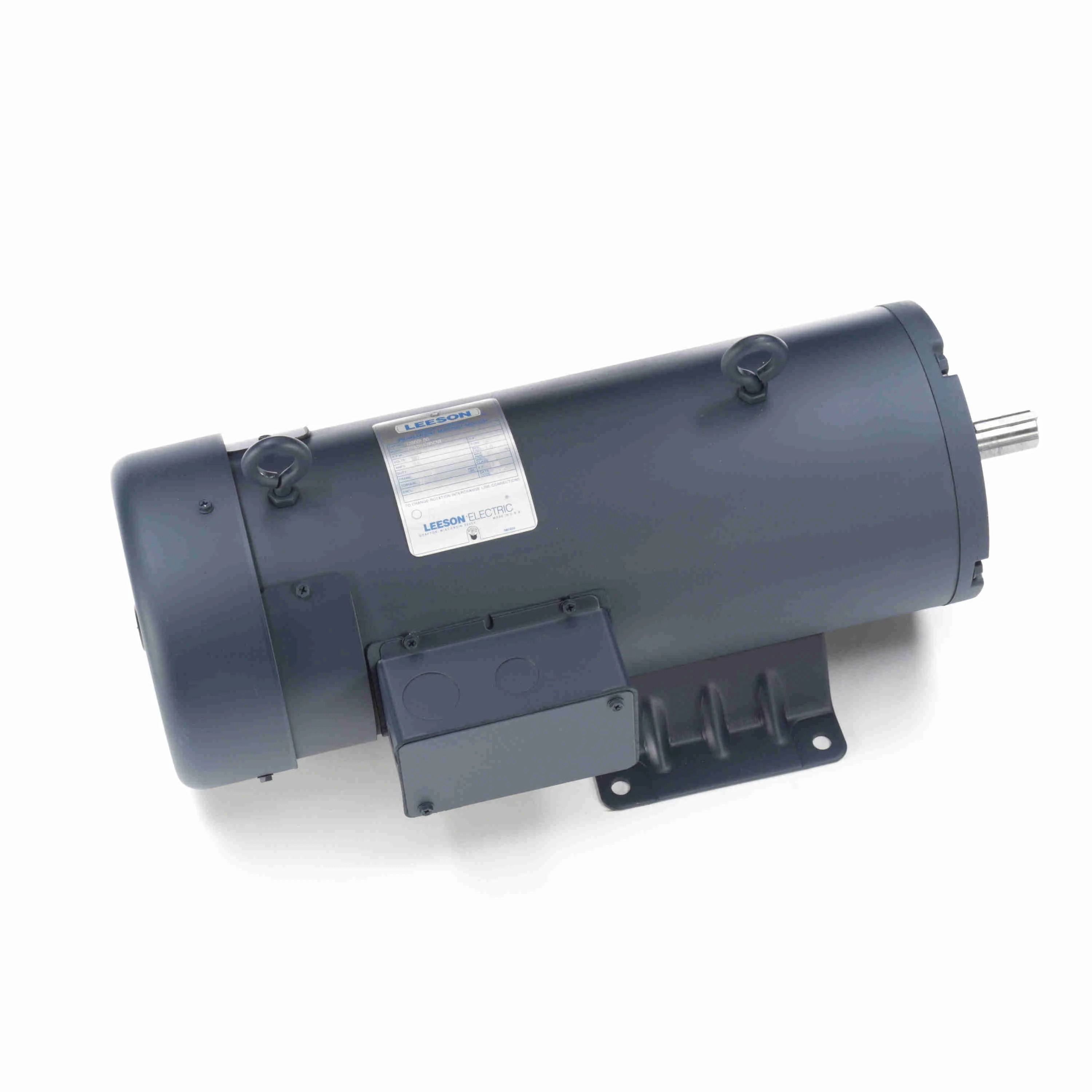

LEESON 128001.00 C182D17FK3B SCR Motor, 2 HP, 180V, 1750 RPM
Get it by Tuesday, Aug 18
€2,433.51 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | DC Motor |
| Amps | 9.5A |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 78.8% |
| Enclosure Type | Tefc |
| Form Factor | 1.38 |
| Frame | 182/145TC |
| Frame Length | 14.63" |
| Frame Type | KS182TC |
| Full Load Torque | 72 lbs.-in. |
| Full Load Torque | 72 in.-lbs. |
| Grease Type | Polyrex EM |
| Height | 10 3/4" |
| Hp | 2 hp |
| Insulation Class | Class H |
| Kw | 1.5 kW |
| Length | 23.38" |
| Lubrication | Polyrex EM |
| Max. Ambient Temp. | 40°C |
| Max. Speed | 1750 RPM |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Type | Rigid Base |
| Motor Shaft Rotation | CW, CCW |
| Mounting Type | Rigid Base |
| Nameplate Speed | 1750 RPM |
| Opp Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Power | 1.5 kW |
| Product Datasheet | leeson-128001-00.pdf |
| Service Factor | 1 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2.13" |
| Speed | 1700-1800 RPM |
| Thermal Protection | No Protection |
| Type | DF |
| Voltage | 180V |
| Width | 12.38" |
Shipping Info:
| Ship weight (kg) | 39.15 |
| Ship height (cm) | 27.31 |
| Ship length (cm) | 59.39 |
| Ship width (cm) | 31.45 |
| Country of Origin | US |
Product Details:
- Bearing OPE: 6203
- Bearing PE: 6205
- Eff 100%: 78.8%
- Nameplate: 080209
- Winding: D6322
- GROUP: 1 B
- Sub Group: B
- Paint: 305000.01
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Shaft Dia. | Amps | Mounting Type | Speed | Type | Nameplate Speed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
098000.00 | 90V | 1/2 hp | 5/8" | 5A | Face, Base | 1700-1800 RPM | DF | 1750 RPM | €1,074.14 | |
 |
098002.00 | 90V | 1/4 hp | 5/8" | 2.5A | Face, Base | 1700-1800 RPM | DF | 1750 RPM | €776.23 | |
 |
098003.00 | 180V | 1/4 hp | 5/8" | 1.4A | Rigid Base | 1700-1800 RPM | DF | 1750 RPM | €826.57 | |
 |
098004.00 | 90V | 33/100 hp | 5/8" | 3.5A | Face, Base | 1700-1800 RPM | DF | 1750 RPM | €909.70 | |
 |
098006.00 | 90V | 1/2 hp | 5/8" | 5A | Face, Base | 2500 RPM | SCR Motor | 2500 RPM | €1,041.94 | |
 |
098007.00 | 180V | 1/2 hp | 5/8" | 2.5A | Rigid Base | 2500 RPM | DF | 2500 RPM | €548.36 | |
 |
098008.00 | 180V | 1/2 hp | 5/8" | 2.5A | Face, Base | 1700-1800 RPM | DF | 1750 RPM | €1,058.89 |
