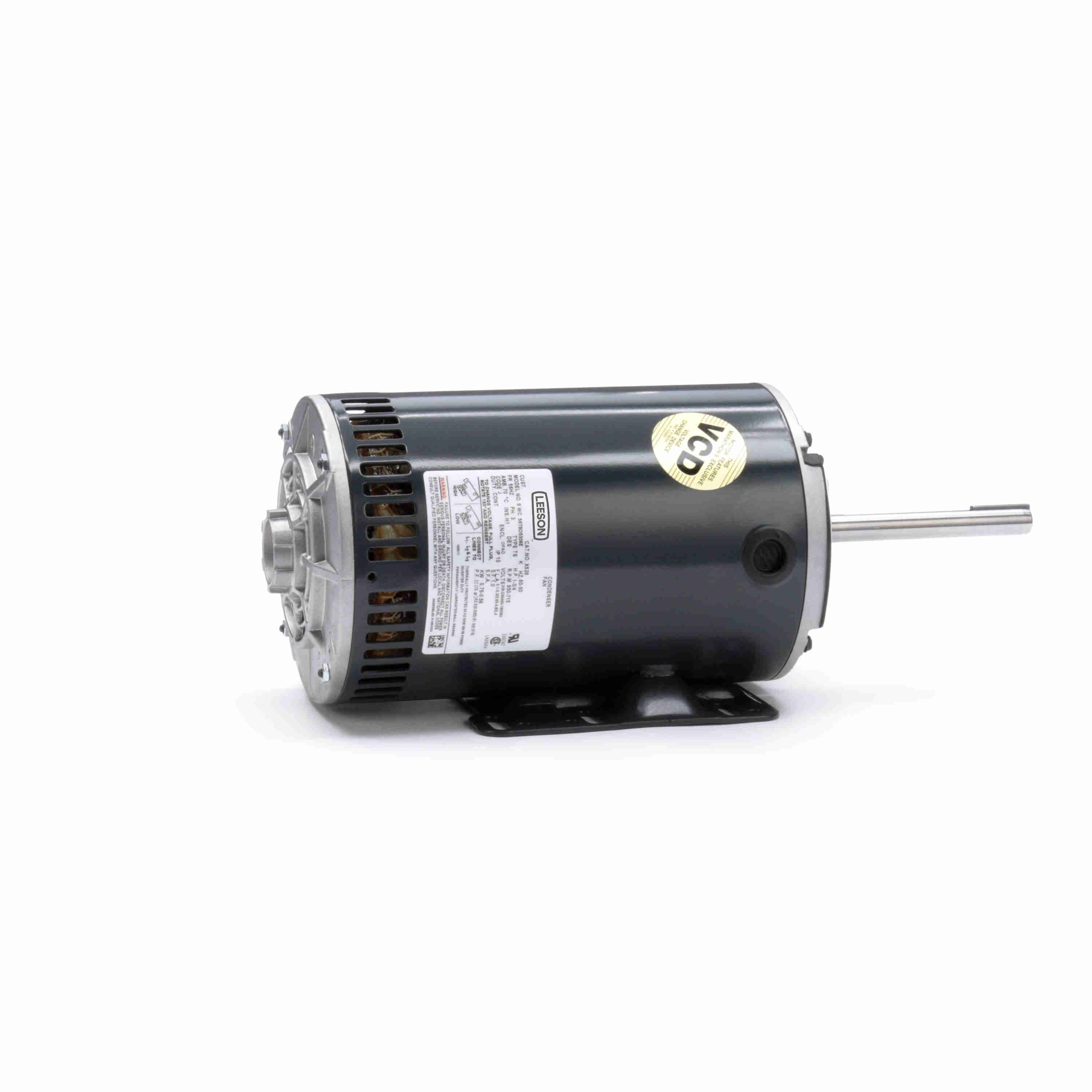

LEESON 056T8O5306 X528 / 56T8O5306E Refrigeration Motor, 1/0.75 HP, 3 Ph, 60/50 Hz, 208-230/460 and 190/380 V, 900 and 750 RPM
Get it by Friday, Dec 19
10.00% off
€1,166.76 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | HVAC Motor |
| Ambient (c) | 70°C |
| Ambient Temp. | 70°C |
| Assembly | W8 |
| Bearing Protection | Shaft Slinger |
| Bearing Type | Ball |
| Body Dia. | 6 1/2" |
| Duty Cycle | Continuous |
| Efficiency | 74.5% |
| Enclosure Type | Open Air Over |
| Features | Combination Base With 12 Mounting Holes; Shaft Slinger; Threaded Lead Exit |
| Frame | 56HZ |
| Frame Material | Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 5.1-5.3/2.6A |
| Full Load Efficiency | 74.5% |
| Hp | 1 hp |
| Insulation Class | Class H |
| Length | 17.062" |
| Length Less Shaft | 12 1/16" |
| Max. Ambient Temp. | 70°C |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Air Over |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal, Vertical Shaft Up |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed With Single Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Condenser Fan |
| Motor Thermal Protection | Automatic |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 850 RPM |
| Nema Design | No Design Code |
| Nominal Efficiency | 74.5% |
| Number Of Speeds | 1 |
| Output Wattage | 750 W |
| Overall Length | 17 1/16" |
| Phase | 3 |
| Power | 0.75 kW |
| Rpm | 900 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 5" |
| Shaft Orientation | Shaft Up |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V AC |
| Weight | 49 lbs. |
Shipping Info:
| Ship weight (kg) | 22.05 |
| Ship height (cm) | 20.62 |
| Ship length (cm) | 50.5 |
| Ship width (cm) | 26.04 |
| HS code | 8501516040 |
| Country of Origin | MX |
Product Details:
- Starting Type: ACROSS THE LINE
- KVA Code: J
- Drive End Bearing: BALL
- IP Code: 10
- Opposite End Bearing: BALL
- Drive End Bearing Size: 6203
- Opposite End Bearing Size: 6203
Product Variants
| Product | Model | Hp | Nameplate Rpm | Motor Enclosure Design | Motor Mounting Type | Max. Ambient Temp. | Frame | Motor Thermal Protection | Motor Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

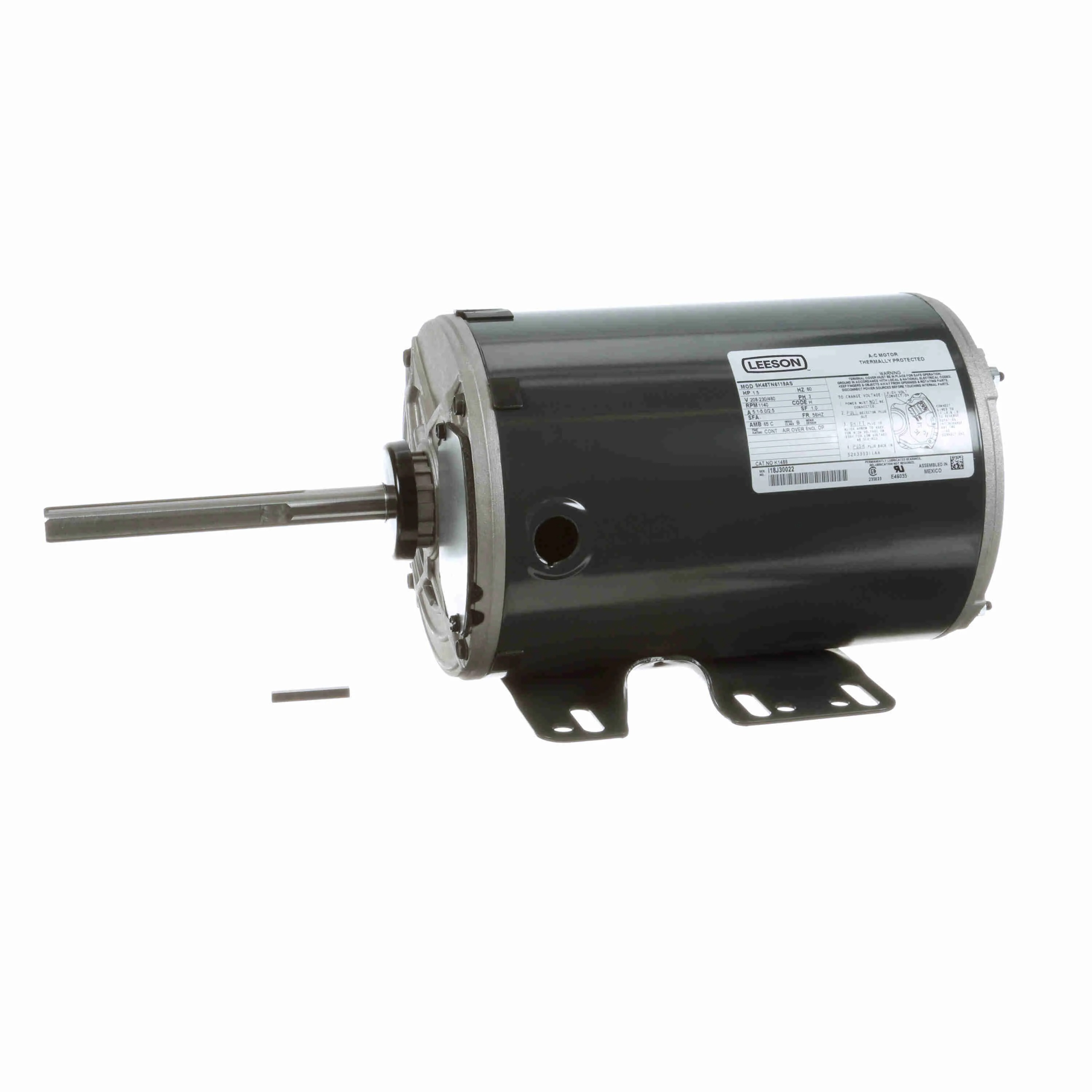

5K48TN6119S | 1 1/2 hp | 1140 RPM | Open Dripproof | Rigid Base | 65°C | 56HZ | Automatic | 3 Phase | €952.44 | |
 |

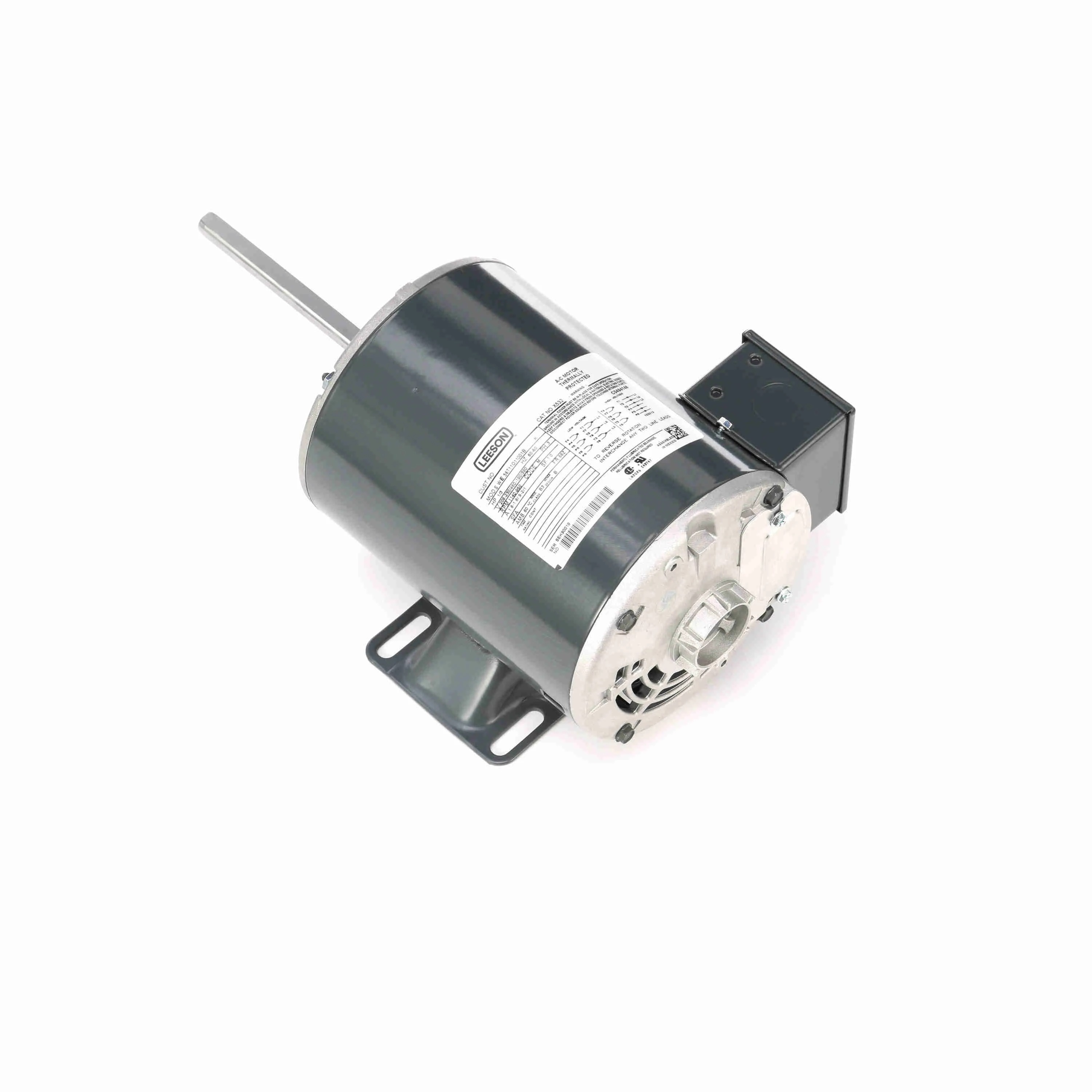

056T11O11001 | 1/3 hp | 1140 RPM | Open Air Over | Rigid Base | 60°C | 56Z | Auto | 3 Phase | €750.06 | |
 |

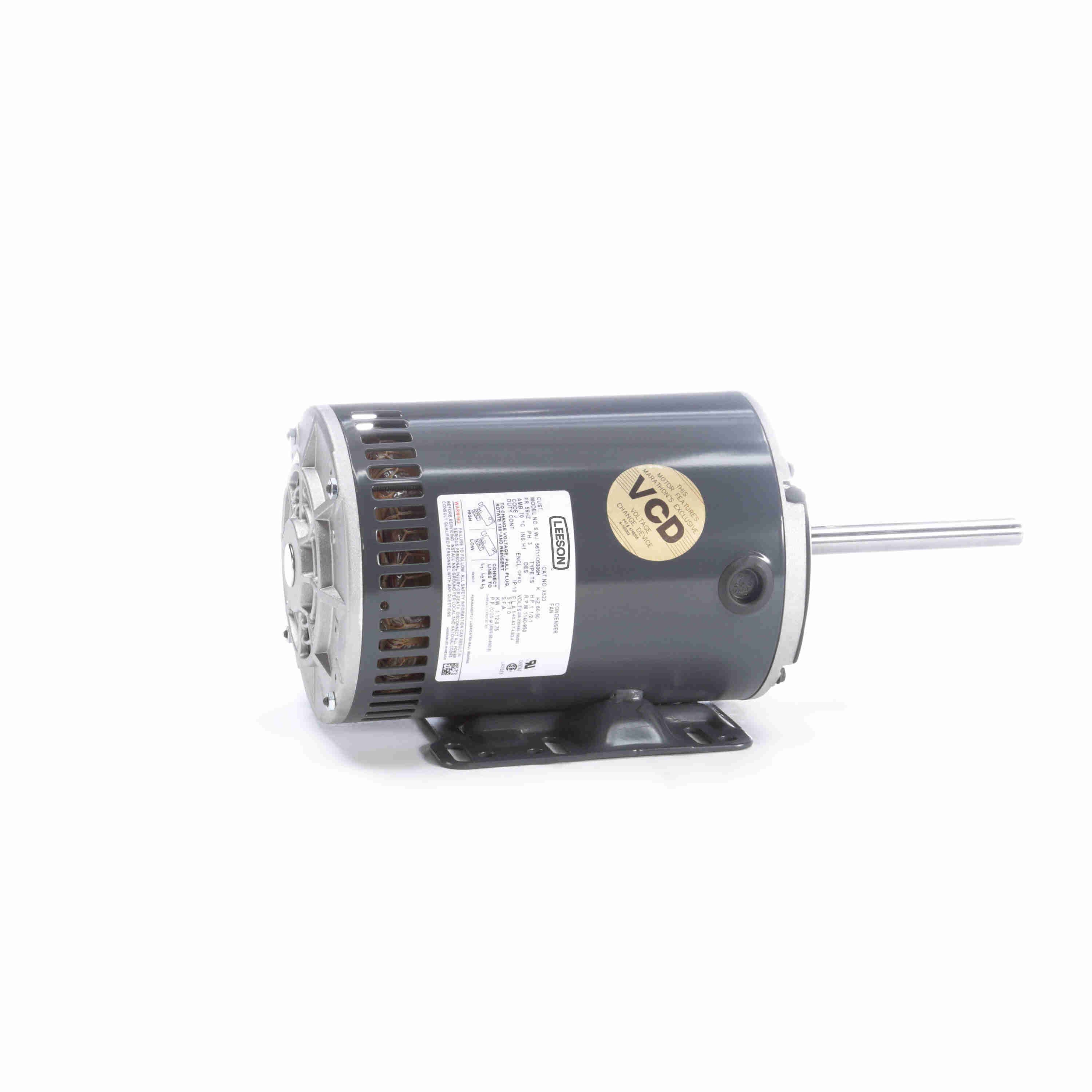

056T11O5306 | 1 1/2 hp | 1140 RPM | Open Air Over | Rigid Base | 70°C | 56HZ | Automatic | 3 Phase | €1,072.95 | |
 |
056T11O15511 | 3/4 hp | 1200 RPM | Open Air Over | Rigid Base | 70°C | 56HZ | Automatic | - | €1,335.29 | |
 |

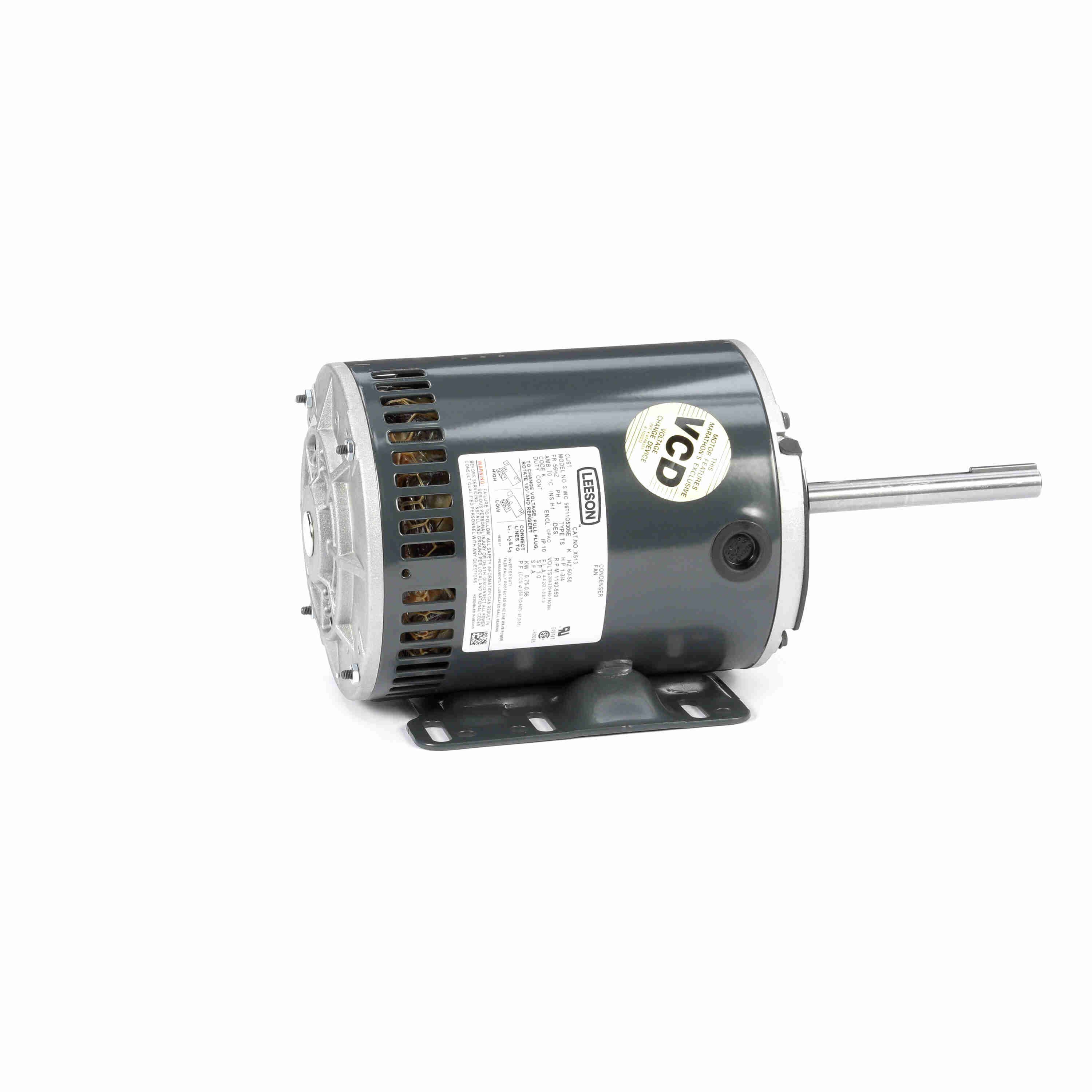

056T11O5305 | 1 hp | 1140 RPM | Open Air Over | Band, Stud | 70°C | 56HZ | Automatic | 3 Phase | €999.49 | |
 |
056T11O5310 | 2 hp | 1140 RPM | Open Air Over | Rigid Base | 70°C | 56HZ | Auto | 3-Phase | €1,028.79 | |
 |

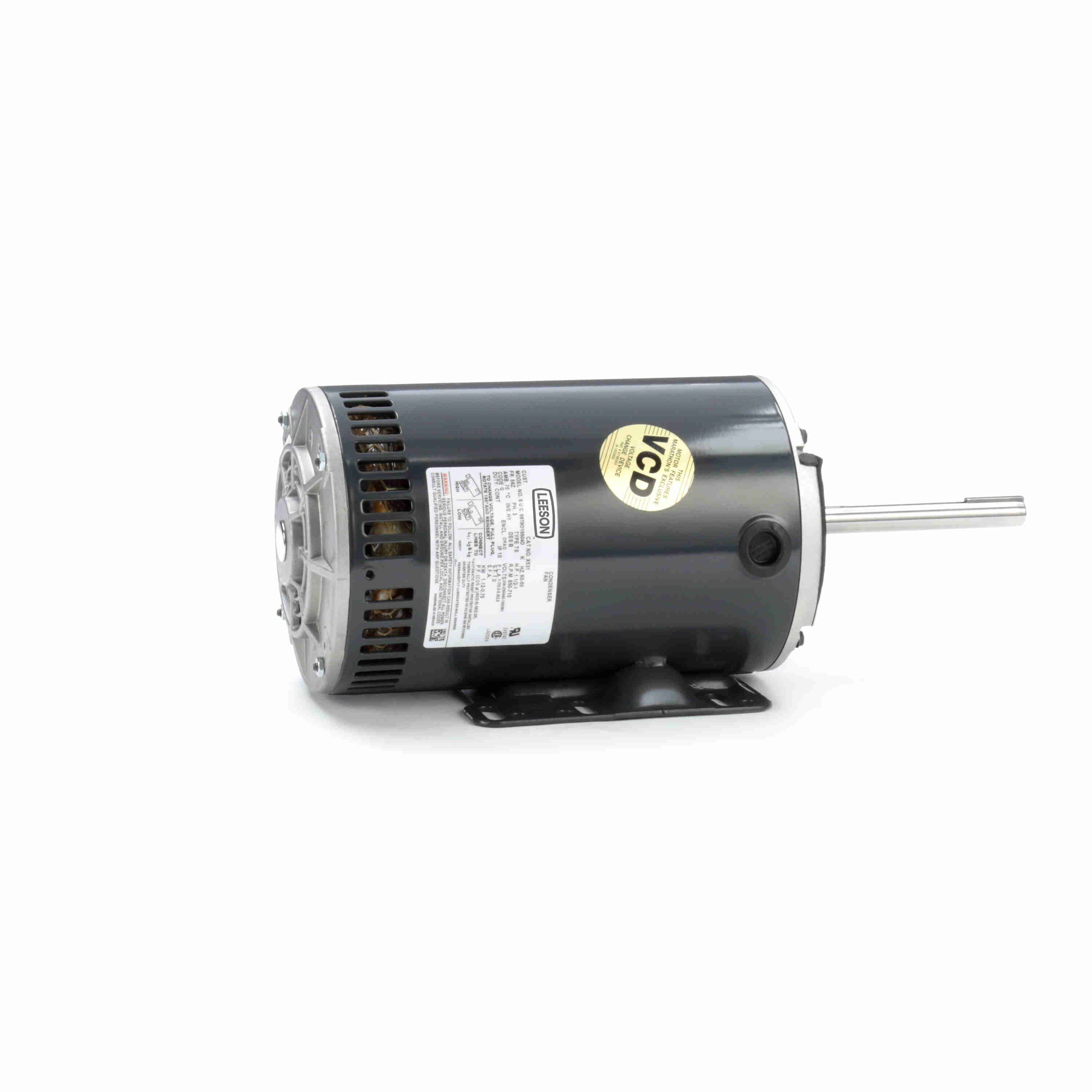

056T8O15504 | 1 1/2 hp | 850 RPM | Open Air Over | Rigid Base | 70°C | 56HZ | Automatic | 3-Phase | €1,163.08 |
