LEESON 056T11O5310 56T11O5310E / X525 Refrigeration Motor, 2/1.50 HP, 3 Ph, 60/50 Hz, 208-230/460 and 190/380 V, 1200 RPM
Get it by Monday, Aug 24
5.00% off
€892.22 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | HVAC Motor |
| Ambient (c) | 70°C |
| Ambient Temp. | 70°C |
| Bearing Protection | Shaft Slinger |
| Bearing Type | Ball |
| Body Dia. | 6 1/2" |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Duty Cycle | Continuous |
| Efficiency | 81.5% |
| Enclosure Type | Open Air Over |
| Features | Combination Base With 12 Mounting Holes; Shaft Slinger; Threaded Lead Exit |
| Frame | 56HZ |
| Frame Material | Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 6.8-7.2/3.4A |
| Hp | 2 hp |
| Insulation Class | Class H |
| Length | 16.688" |
| Length Less Shaft | 11 11/16" |
| Max. Ambient Temp. | 70°C |
| Motor Application | HVAC, R |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Air Over |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal Shaft Up, Vertical Shaft Up |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed With Single Flat |
| Motor Shaft Rotation | CW, CCW |
| Motor Sub Application | Condenser Fan |
| Motor Thermal Protection | Auto |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Rigid Base |
| Nameplate Speed | 1140 RPM |
| Nema Design | No Design Code |
| No. Of Speed | 1 |
| Nominal Efficiency | 81.5% |
| Output Watts | 1500 W |
| Overall Length | 16 11/16" |
| Phase | 3 |
| Power | 1.49 kW |
| Product Datasheet | leeson-056t11o5310.pdf |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 5" |
| Shaft Orientation | Horizontal |
| Speed | 1200 RPM |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V AC |
Shipping Info:
| Ship weight (kg) | 21.15 |
| Ship height (cm) | 20.62 |
| Ship length (cm) | 50.5 |
| Ship width (cm) | 26.04 |
| HS code | 8501524000 |
| Country of Origin | MX |
Product Details:
- Starting Type: ACROSS THE LINE
- KVA Code: J
- Drive End Bearing: BALL
- IP Code: 10
- Opposite End Bearing: BALL
- Drive End Bearing Size: 6203
- Opposite End Bearing Size: 6203
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Motor Enclosure Design | Motor Mounting Type | Motor Thermal Protection | Motor Design | Shaft Length | Max. Ambient Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

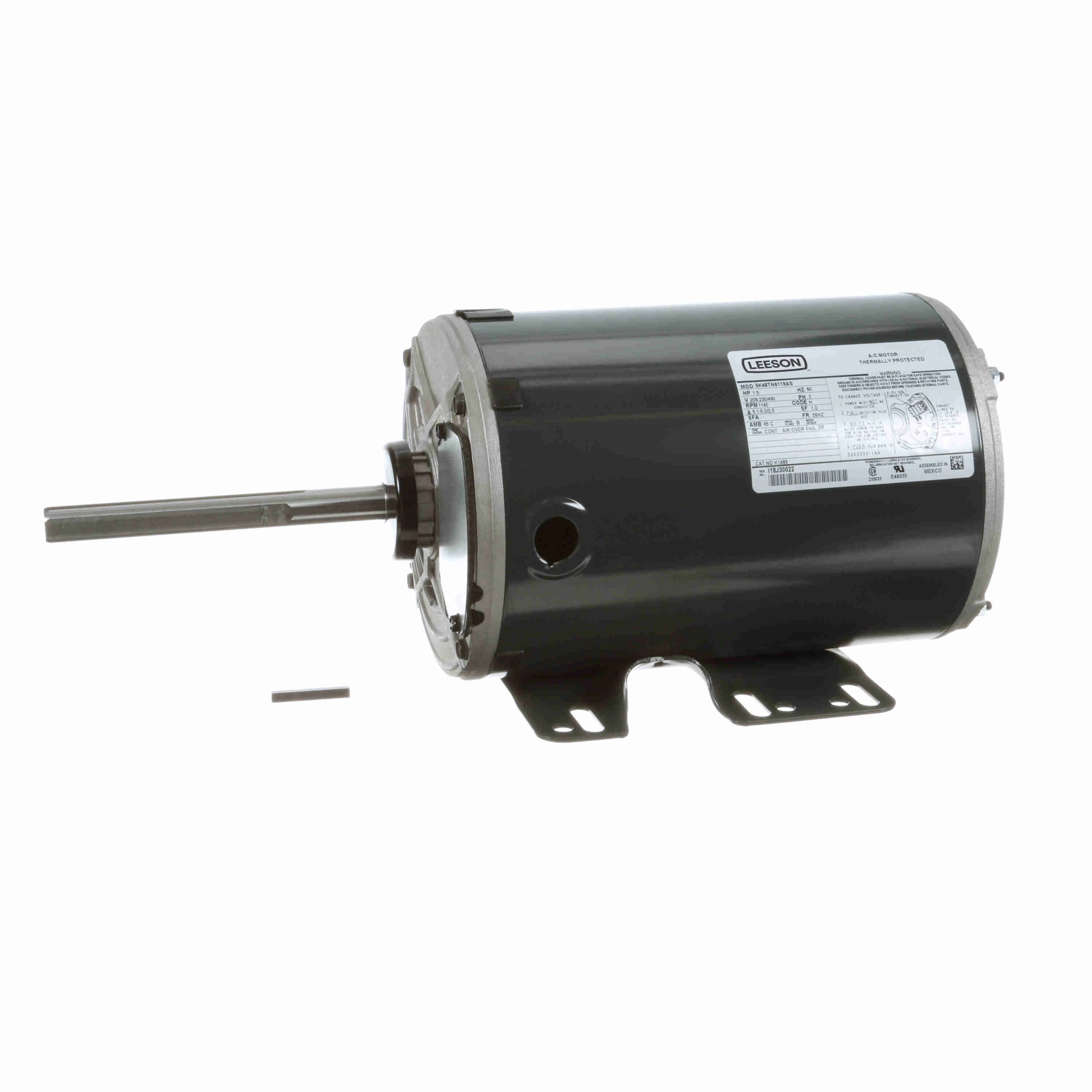

5K48TN6119S | 208-230/460V AC | 1 1/2 hp | Open Dripproof | Rigid Base | Automatic | 3 Phase | 6" | 65°C | €869.48 | |
 |

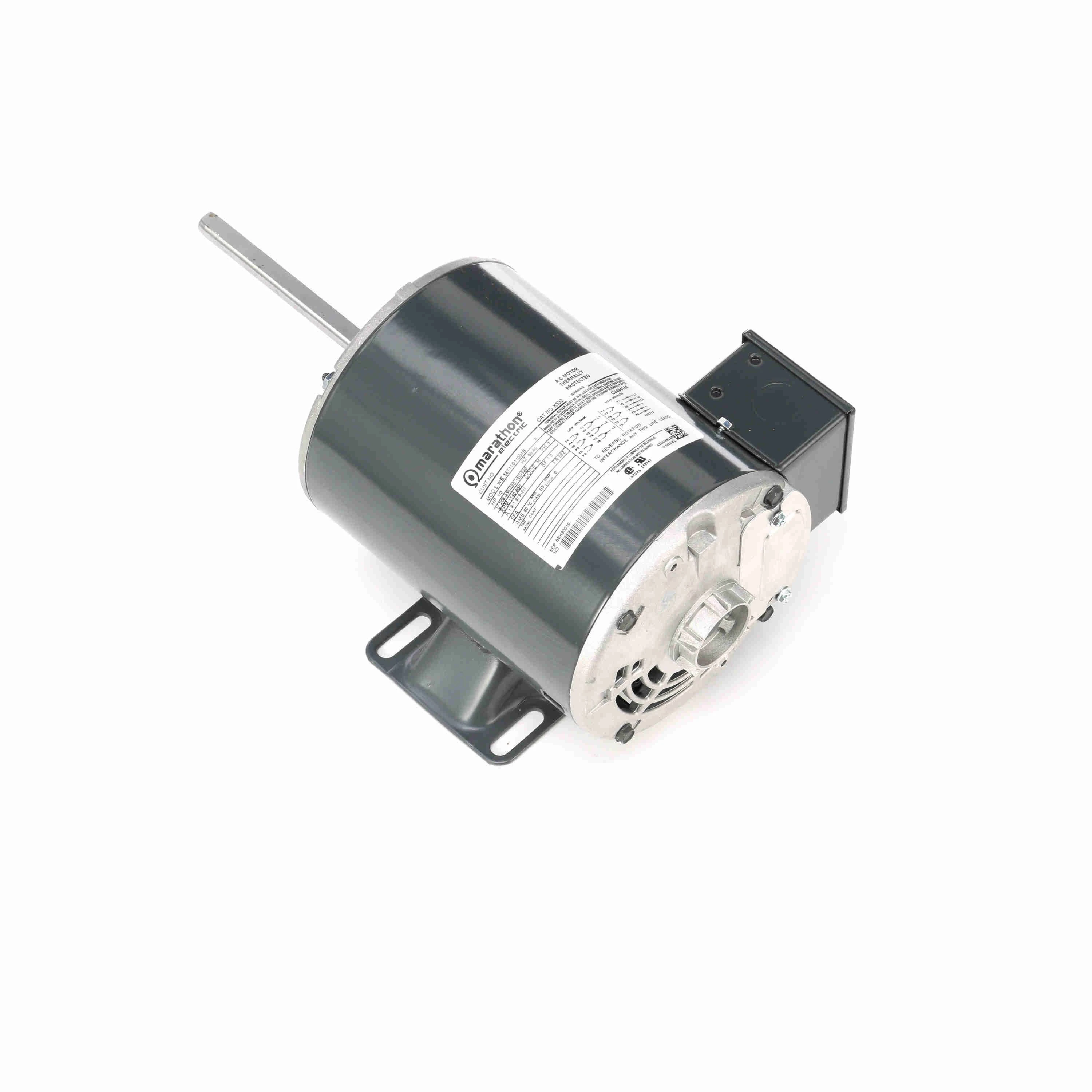

056T11O11001 | 208-230/460V AC | 1/3 hp | Open Air Over | Rigid Base | Auto | 3 Phase | 5" | 60°C | €695.45 | |
 |
056T11O5306 | 208-230/460V AC | 1 1/2 hp | Open Air Over | Rigid Base | Automatic | 3 Phase | 5" | 70°C | €1,072.95 | |
 |
056T11O15511 | 208-230/460V AC | 3/4 hp | Open Air Over | Rigid Base | Automatic | - | - | 70°C | €1,218.98 | |
 |
056T11O5305 | 208-230/460V AC | 1 hp | Open Air Over | Band, Stud | Automatic | 3 Phase | 5" | 70°C | €999.49 | |
 |

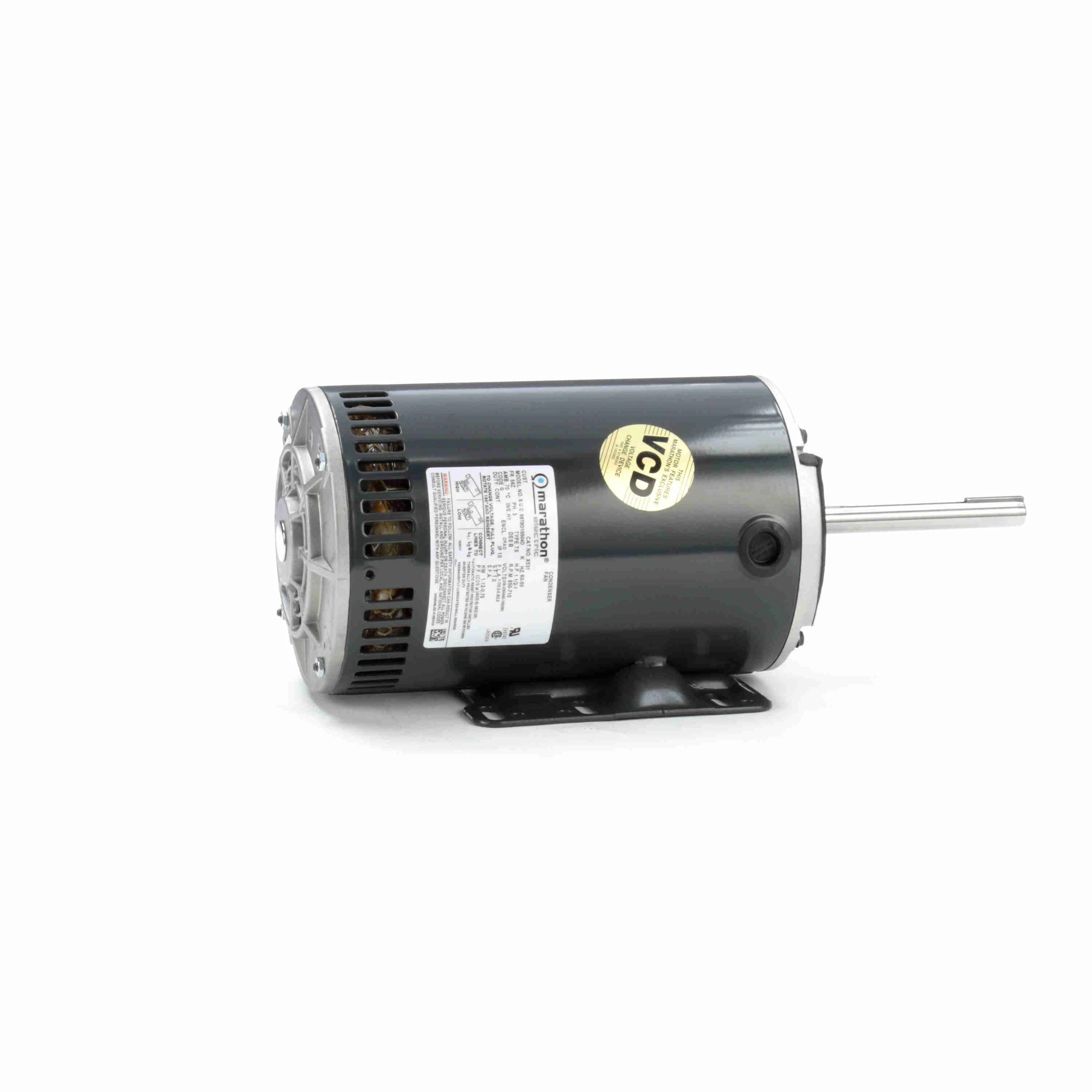

056T8O15504 | 208-230/460V AC | 1 1/2 hp | Open Air Over | Rigid Base | Automatic | 3-Phase | 5" | 70°C | €1,163.08 | |
 |

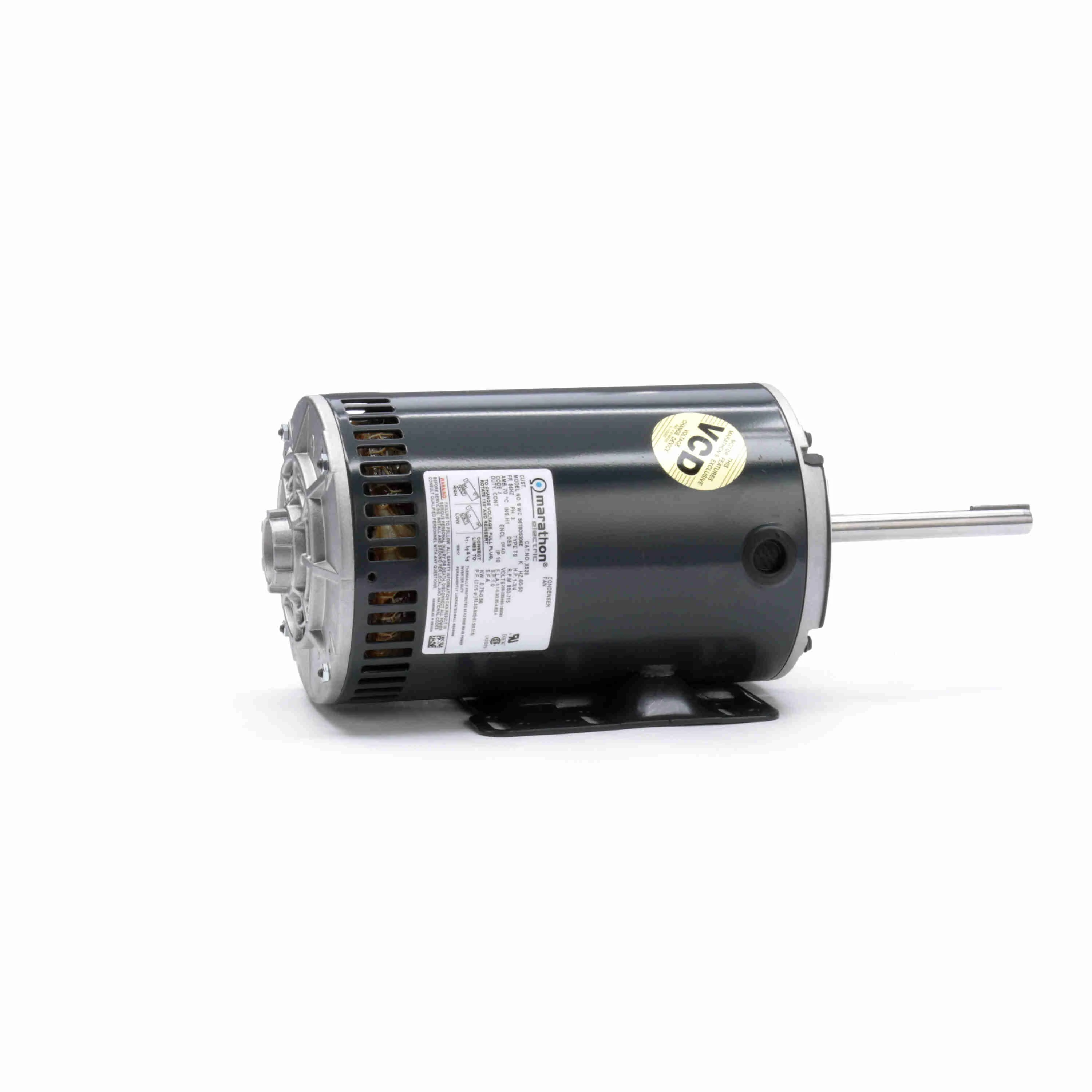

056T8O5306 | 208-230/460V AC | 1 hp | Open Air Over | Rigid Base | Automatic | 3-Phase | 5" | 70°C | €1,183.49 |
