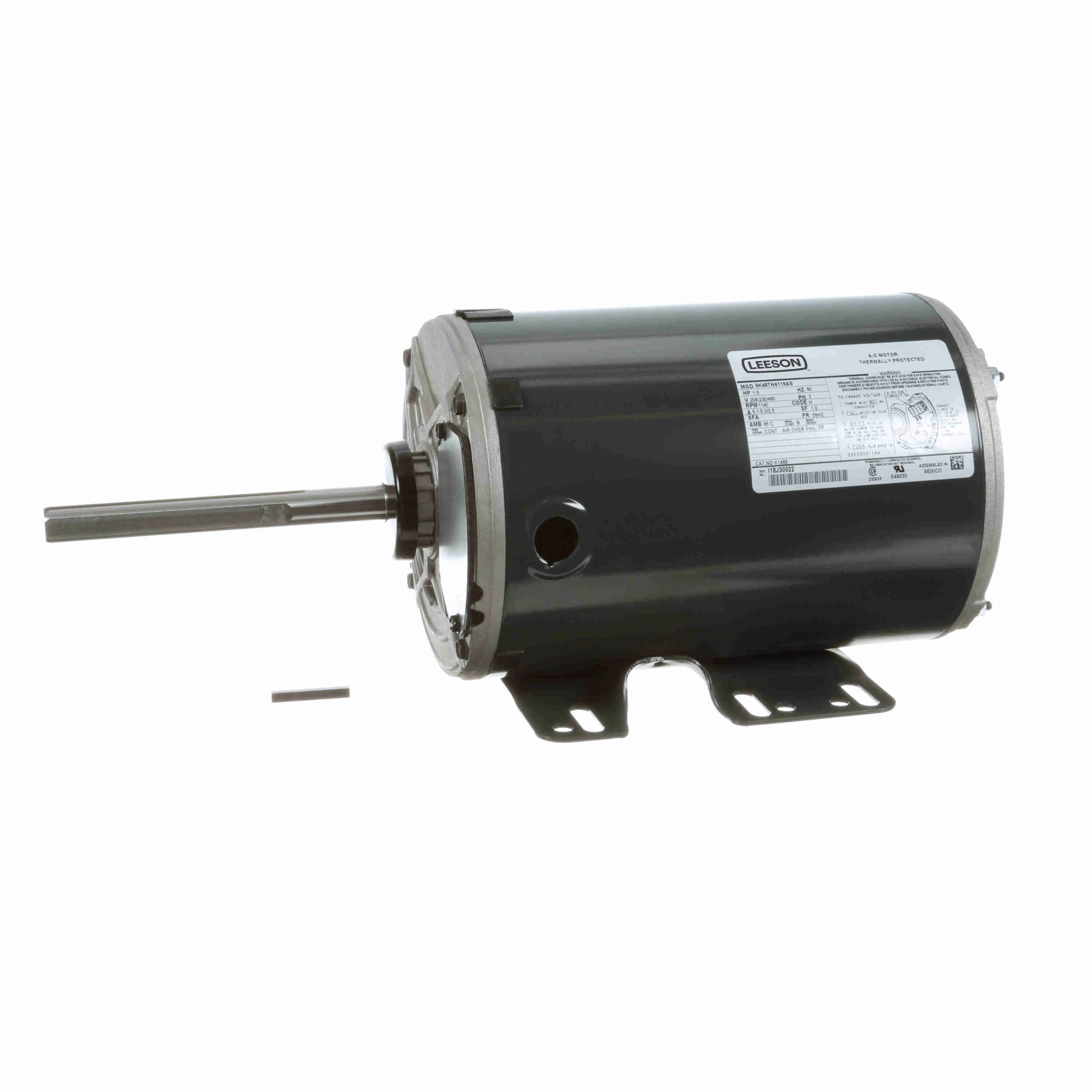

LEESON 5K48TN6119S K1486 / 5K48TN6119AS Condenser Fan Motor, 1.50 HP, 3 Ph, 60 Hz, 208-230/460V, 1200 RPM
Get it by Tuesday, Dec 23
10.00% off
€857.19 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Condenser Fan Motor |
| Ambient Temp. | 65°C |
| Bearing Type | Ball |
| Body Dia. | 6 7/16" |
| Dia. | 6.437" |
| Diameter | 6.437" |
| Duty Cycle | Continuous |
| Efficiency | 77% |
| Enclosure Type | Open Dripproof |
| Extended Thru-bolts | No |
| Features | Shaft Slinger, Threaded Lead Exit |
| Frame | 56HZ |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 5-5.1/2.5A |
| Hp | 1 1/2 hp |
| Insulation Class | Class B |
| Length | 16 3/4" |
| Length Less Shaft | 10 3/4" |
| Max. Ambient Temp. | 65°C |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | 3 Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Vertical Shaft Up |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed With Single Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Condenser Fan |
| Motor Thermal Protection | Automatic |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1140 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 77% |
| Number Of Speeds | 1 |
| Output Watts | 1100 W |
| Overall Length | 16 3/4" |
| Phase | 3 |
| Power | 1100 W |
| Rpm Range | 1101-1200 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 6" |
| Shaft Orientation | Horizontal |
| Shaft Type | Flat, Keyway |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V AC |
| Weight | 38 lbs. |
Shipping Info:
| Ship weight (kg) | 17.1 |
| Ship height (cm) | 24.13 |
| Ship length (cm) | 48.74 |
| Ship width (cm) | 27.79 |
| HS code | 8501524000 |
| Country of Origin | MX |
Product Variants
| Product | Model | Hp | Nameplate Rpm | Motor Enclosure Design | Motor Mounting Type | Max. Ambient Temp. | Frame | Motor Thermal Protection | Motor Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
056T11O11001 | 1/3 hp | 1140 RPM | Open Air Over | Rigid Base | 60°C | 56Z | Auto | 3 Phase | €750.06 | |
 |
056T11O5306 | 1 1/2 hp | 1140 RPM | Open Air Over | Rigid Base | 70°C | 56HZ | Automatic | 3 Phase | €1,072.95 | |
 |
056T11O15511 | 3/4 hp | 1200 RPM | Open Air Over | Rigid Base | 70°C | 56HZ | Automatic | - | €1,335.29 | |
 |
056T11O5305 | 1 hp | 1140 RPM | Open Air Over | Band, Stud | 70°C | 56HZ | Automatic | 3 Phase | €999.49 | |
 |
056T11O5310 | 2 hp | 1140 RPM | Open Air Over | Rigid Base | 70°C | 56HZ | Auto | 3-Phase | €1,028.79 | |
 |

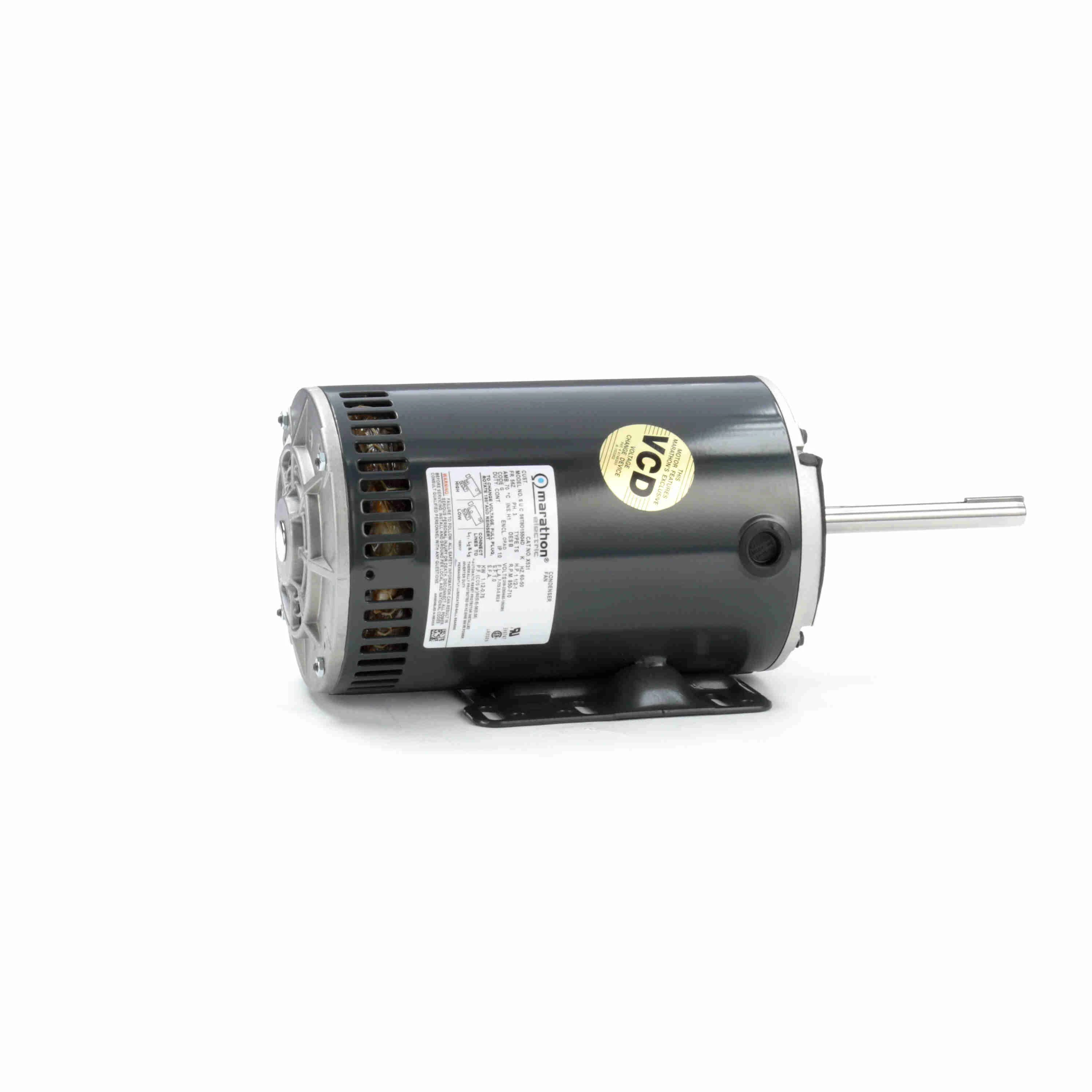

056T8O15504 | 1 1/2 hp | 850 RPM | Open Air Over | Rigid Base | 70°C | 56HZ | Automatic | 3-Phase | €1,163.08 | |
 |
056T8O5306 | 1 hp | 850 RPM | Open Air Over | Rigid Base | 70°C | 56HZ | Automatic | 3-Phase | €1,296.41 |
