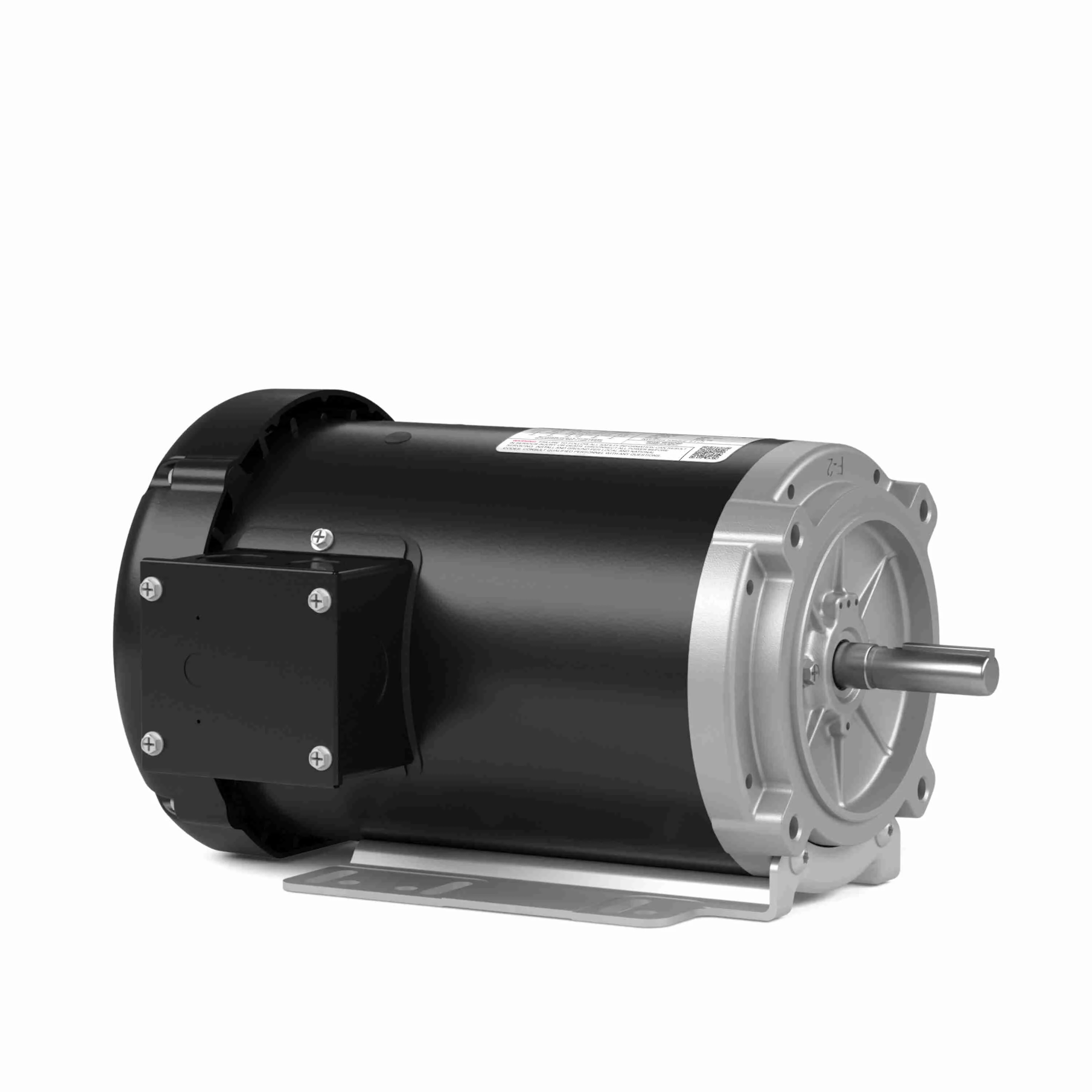

LEESON 056T34D15647 56T34D15647A / FX01FK001 General Purpose Motor, 1 HP, 3 Phase, 60 Hz, 575V, 3600 RPM
Get it by Tuesday, Sep 1
€538.80 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Amps | 1.1A |
| Combination Mounting Holes In Base | 56/143 Shorter Base Motor Option and 56/56H/143/145 Longer Base Motor Option |
| Design Code | B |
| Duty Cycle | Continuous |
| Efficiency | 78.5% |
| Electrical Type | Squirrel Cage Inverter Rated |
| Enclosure | Drip Proof |
| Frame | 56C |
| Frame Material | Rolled Steel |
| Insulation Class | Class F |
| Kva Code | K |
| Motor Orientation | Horizontal |
| Mounting | Bolt-On Base |
| Phase | 3 |
| Pole | 2 |
| Power Factor | 82 |
| Resistance Main | 18.32 ohms |
| Rotation | Reversible |
| Service Factor | 1.25 |
| Shaft Dia. | 5/8" |
| Shaft Type | NEMA 56 |
| Speed | 3450 RPM |
| Thermal Protection | NO Protection |
| Voltage | 575V |
Shipping Info:
| Ship weight (kg) | 10.35 |
| Ship height (cm) | 20.62 |
| Ship length (cm) | 40.94 |
| Ship width (cm) | 26.04 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Service Factor | Motor Enclosure Design | Hp | Frequency | Mounting Type | Full Load Amps | Frame | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
056T34D15648 | 208-230/460/190/380V | 1, 1.15 | Open Dripproof | 1 1/2 hp | 60 Hz | Bolt On Base | 4-4.2/2A | 56HC | €581.36 | |
 |
056T17D15850 | 230/460V | 1, 1.15 | Open Dripproof | 1 1/2 hp | 50/60 Hz | Bolt On Base | 4.4/2.2A | 56HC | €645.55 | |
 |
056T11D15535 | 208-230/460/190/380V | 1, 1.15 | Open Dripproof | 1 hp | 50/60 Hz | Bolt On Base | 3.4-3.5/6.8A | 56C | €1,065.20 | |
 |
056T17D99083 | 208-230/460V | 1.15 | Open Dripproof | 1 hp | 60 Hz | Universal | 3.1-3.2/1.6A | 56HC | €820.67 | |
 |
056T34D15646 | 208-230/460/190/380V | 1, 1.25 | Open Dripproof | 1 hp | 50/60 Hz | Bolt On Base | 2.8-3/1.4A | 56HC | €538.80 | |
 |
056T11D15533 | 208-230/460/190/380V | 1, 1.25 | Open Dripproof | 1/2 hp | 50/60 Hz | Bolt On Base | 2.1-2.2/1.1A | 56HC | €983.19 | |
 |
056T17D15844 | 208-230/460/190/380V | 1, 1.25 | Open Dripproof | 1/2 hp | 60 Hz | Bolt On Base | - | 56HC | €676.24 |
