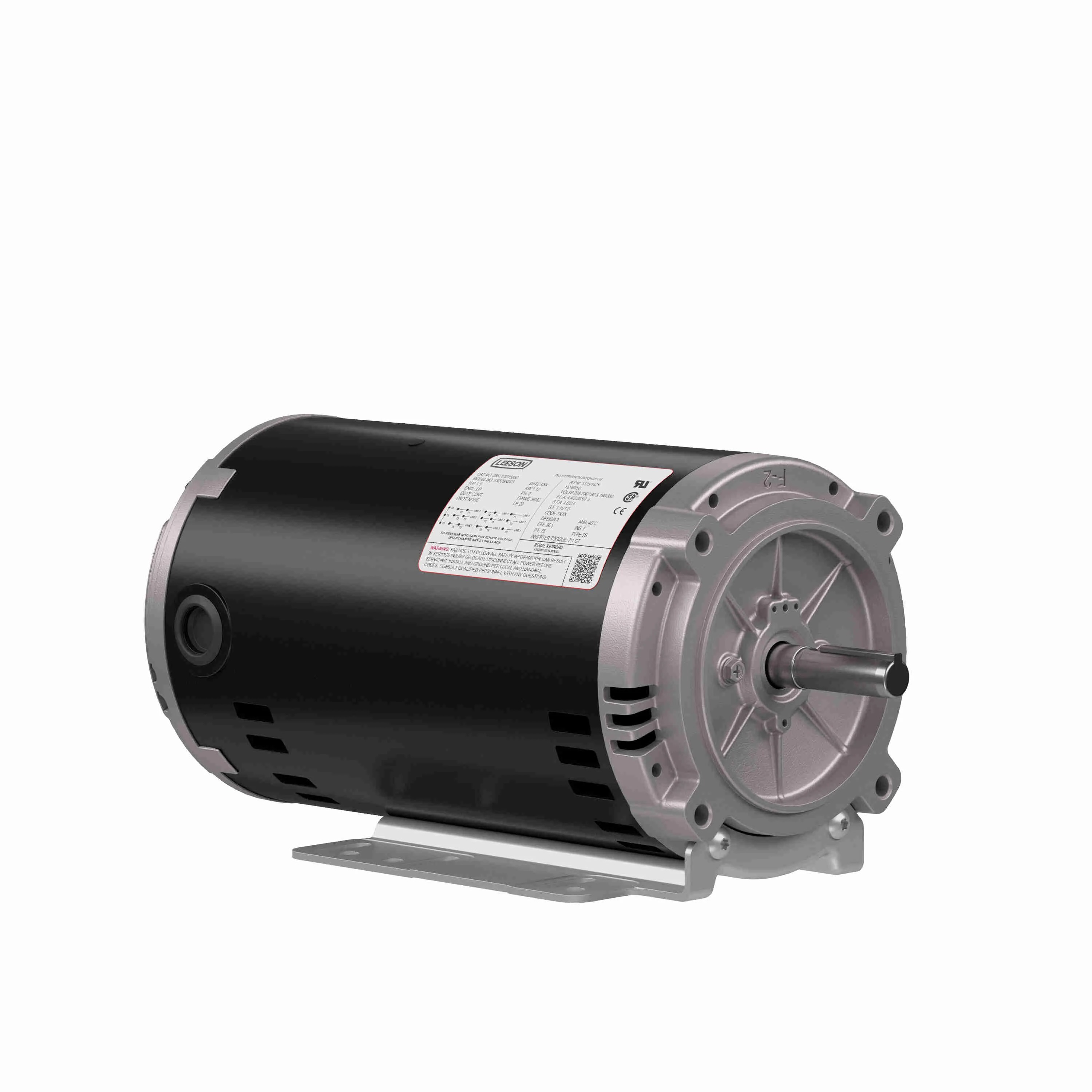

LEESON 056T17D15850 FX32BK003 / 56T17D15850A General Purpose Motor, 1.50 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 and 1500 RPM
Item: CT2FTPModel: 056T17D15850Cross Ref: 801V87 / FX32BK003 / 56T17D15850A
In Stock
Get it by Thursday, Dec 18
€645.55 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Motor |
| Ambient Temp. | 40°C |
| Amps | 2.2/4.4A |
| Assembly/box Mounting | F1, F2, F3 Capable |
| Bearing Type | Ball |
| Curvepoint | Full Load |
| De Bearing Type | Ball |
| Design Code | B |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Electrical Type | Squirrel Cage, Inverter Rated |
| Enclosure Type | Drip Proof |
| Frame | 56HC |
| Frame Material | Rolled Steel |
| Frame Size | 56HC |
| Frame Suffix | Hc |
| Frequency | 50/60 Hz |
| Full Load Amps | 4.4/2.2A |
| Height | 8 3/25" |
| Hp | 1 1/2 hp |
| Hz | 60 Hz |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Inverter Load Ratio | 2:1 |
| Inverter Load Type | Constant |
| Inverter Rated | Yes |
| Ip Code | IP22 |
| Kva Code | M |
| Kw | 1.1 kW |
| Length | 16 3/25" |
| Load | 1 |
| Max. Ambient Temp. | 40°C |
| Motor Bearings | Ball |
| Motor Design | 3 Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Universal |
| Motor Orientation | Horizontal |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CCW |
| Motor Thermal Protection | None |
| Mounting Type | Bolt On Base |
| Nameplate Rpm | 1725 RPM |
| Nema Design | F |
| Nema Rating | NEMA 56 |
| No. Of Poles | 4 |
| Nominal Efficiency | 86.5% |
| Number Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 1.1 kW |
| Overall Length | 13 3/4" |
| Phase | 3 |
| Power Factor | 75 |
| Resistance Main | 0 ohms |
| Rotation Type | Reversible |
| Rpm | 1725 RPM |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1, 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Starting Method | Line Or Inverter |
| Synchronous Rpm | 1800/1500 RPM |
| Thermal Protection | No Protection |
| Torque | 4.5 lbs.-ft. |
| Torquepct | 100 |
| Voltage | 230/460V |
| Weight | 44 lbs. |
Shipping Info:
| Ship weight (kg) | 19.8 |
| Ship height (cm) | 20.62 |
| Ship length (cm) | 40.94 |
| Ship width (cm) | 26.04 |
| Country of Origin | MX |
Product Variants
| Model | Voltage | Nameplate Rpm | Hp | Mounting Type | Service Factor | Full Load Amps | Frame | Motor Shaft Rotation | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 056T34D15648 | 208-230/460/190/380V | 3450 RPM | 1 1/2 hp | Bolt On Base | 1, 1.15 | 4-4.2/2A | 56HC | CCW | €581.36 | |
| 056T11D15535 | 208-230/460/190/380V | 1140 RPM | 1 hp | Bolt On Base | 1, 1.15 | 3.4-3.5/6.8A | 56C | CCW | €1,166.86 | |
| 056T17D99083 | 208-230/460V | 1725 RPM | 1 hp | Universal | 1.15 | 3.1-3.2/1.6A | 56HC | CCW | €857.31 | |
| 056T34D15646 | 208-230/460/190/380V | 3450 RPM | 1 hp | Bolt On Base | 1, 1.25 | 2.8-3/1.4A | 56HC | CCW/CW | €538.80 | |
| 056T11D15533 | 208-230/460/190/380V | 1140 RPM | 1/2 hp | Bolt On Base | 1, 1.25 | 2.1-2.2/1.1A | 56HC | CCW | €1,023.14 | |
| 056T17D15844 | 208-230/460/190/380V | 1725 RPM | 1/2 hp | Bolt On Base | 1, 1.25 | - | 56HC | CCW | €822.09 | |
| 056T34D15644 | 230/460/190/380V | 3450 RPM | 1/2 hp | Bolt On Base | 1, 1.25 | 2-2/1A | 56C | CCW | €681.77 |
