LEESON 056T11D15535 FX01BK005 / 56T11D15535A General Purpose Motor, 1 HP, 3 Phase, 60/50 Hz, 208-230/460 and 190/380V, 1200 RPM
Item: CT2FTQModel: 056T11D15535Cross Ref: 801VC8 / FX01BK005 / 56T11D15535A
In Stock
Get it by Wednesday, Dec 17
10.00% off
€1,050.18 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Motor |
| Ambient Temp. | 40°C |
| Amps | 3.4-3.5/1.7/4/2A |
| Assembly/box Mounting | F1, F2, F3 Capable |
| Bearing Type | Ball |
| Curvepoint | Pull Up |
| Design Code | B |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 82.5%, 85% |
| Electrical Type | Squirrel Cage, Inverter Rated |
| Enclosure Type | Drip Proof |
| Frame | 56C |
| Frame Material | Rolled Steel |
| Frame Size | 56HC |
| Frame Suffix | Hc |
| Frequency | 50/60 Hz |
| Full Load Amps | 3.4-3.5/6.8A |
| Hp | 1 hp |
| Hz | 60 Hz |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Inverter Load | 1 |
| Inverter Load Ratio | 2:1 |
| Inverter Load Type | Constant |
| Inverter Rated | Yes |
| Ip Code | IP22 |
| Kva Code | K |
| Kw | 5.25 kW |
| Load | 0.5 |
| Max. Ambient Temp. | 40°C |
| Motor Bearings | Ball |
| Motor Design | 3 Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Universal |
| Motor Orientation | Horizontal |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CCW |
| Motor Thermal Protection | None |
| Mounting Type | Bolt On Base |
| Nameplate Rpm | 1140 RPM |
| Nema Design | F |
| Nema Rating | NEMA 56 |
| No. Of Poles | 6 |
| Nominal Efficiency | 85% |
| Number Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 0.75 kW |
| Overall Length | 14 1/4" |
| Phase | 3 |
| Power Factor | 65.7 |
| Resistance Main | 3.77 ohms |
| Rotation Type | Reversible |
| Rpm | 950/1140 RPM |
| Rpm Range | 1101-1200 RPM |
| Service Factor | 1, 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Starting Method | Line Or Inverter |
| Synchronous Rpm | 1200/1000 RPM |
| Thermal Protection | No Protection |
| Torque | 191.2 lbs.-ft. |
| Torquepct | 261 |
| Usable @ 208v | Yes |
| Voltage | 208-230/460/190/380V |
| Weight | 48 lbs. |
Shipping Info:
| Ship weight (kg) | 21.6 |
| Ship height (cm) | 20.62 |
| Ship length (cm) | 40.94 |
| Ship width (cm) | 26.04 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Nameplate Rpm | Hp | Mounting Type | Service Factor | Full Load Amps | Frame | Motor Shaft Rotation | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
056T34D15648 | 208-230/460/190/380V | 3450 RPM | 1 1/2 hp | Bolt On Base | 1, 1.15 | 4-4.2/2A | 56HC | CCW | €581.36 | |
 |

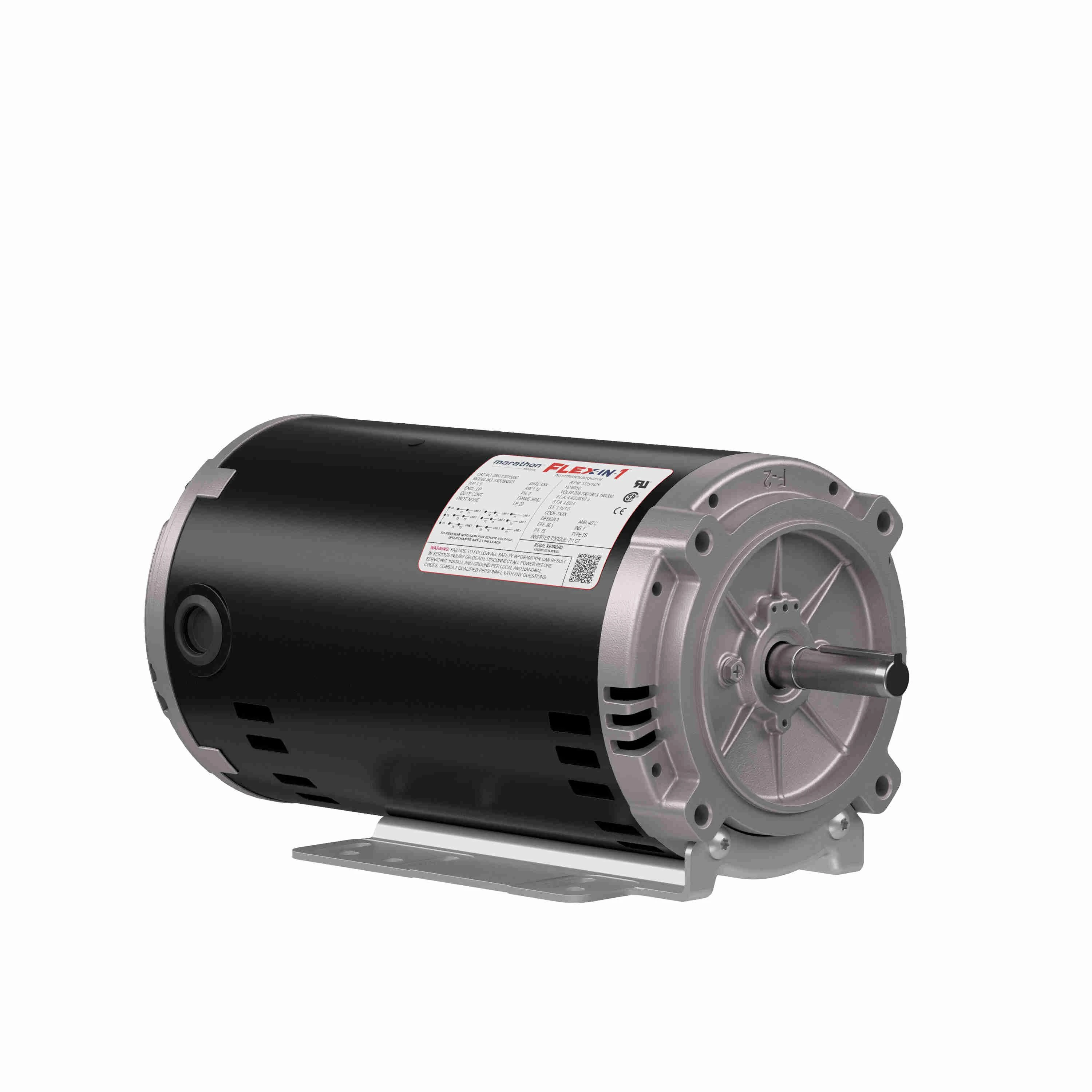

056T17D15850 | 230/460V | 1725 RPM | 1 1/2 hp | Bolt On Base | 1, 1.15 | 4.4/2.2A | 56HC | CCW | €645.55 | |
|
056T17D99083 | 208-230/460V | 1725 RPM | 1 hp | Universal | 1.15 | 3.1-3.2/1.6A | 56HC | CCW | €857.31 | |
|
056T34D15646 | 208-230/460/190/380V | 3450 RPM | 1 hp | Bolt On Base | 1, 1.25 | 2.8-3/1.4A | 56HC | CCW/CW | €538.80 | |
|
056T11D15533 | 208-230/460/190/380V | 1140 RPM | 1/2 hp | Bolt On Base | 1, 1.25 | 2.1-2.2/1.1A | 56HC | CCW | €1,023.14 | |
|
056T17D15844 | 208-230/460/190/380V | 1725 RPM | 1/2 hp | Bolt On Base | 1, 1.25 | - | 56HC | CCW | €822.09 | |
 |

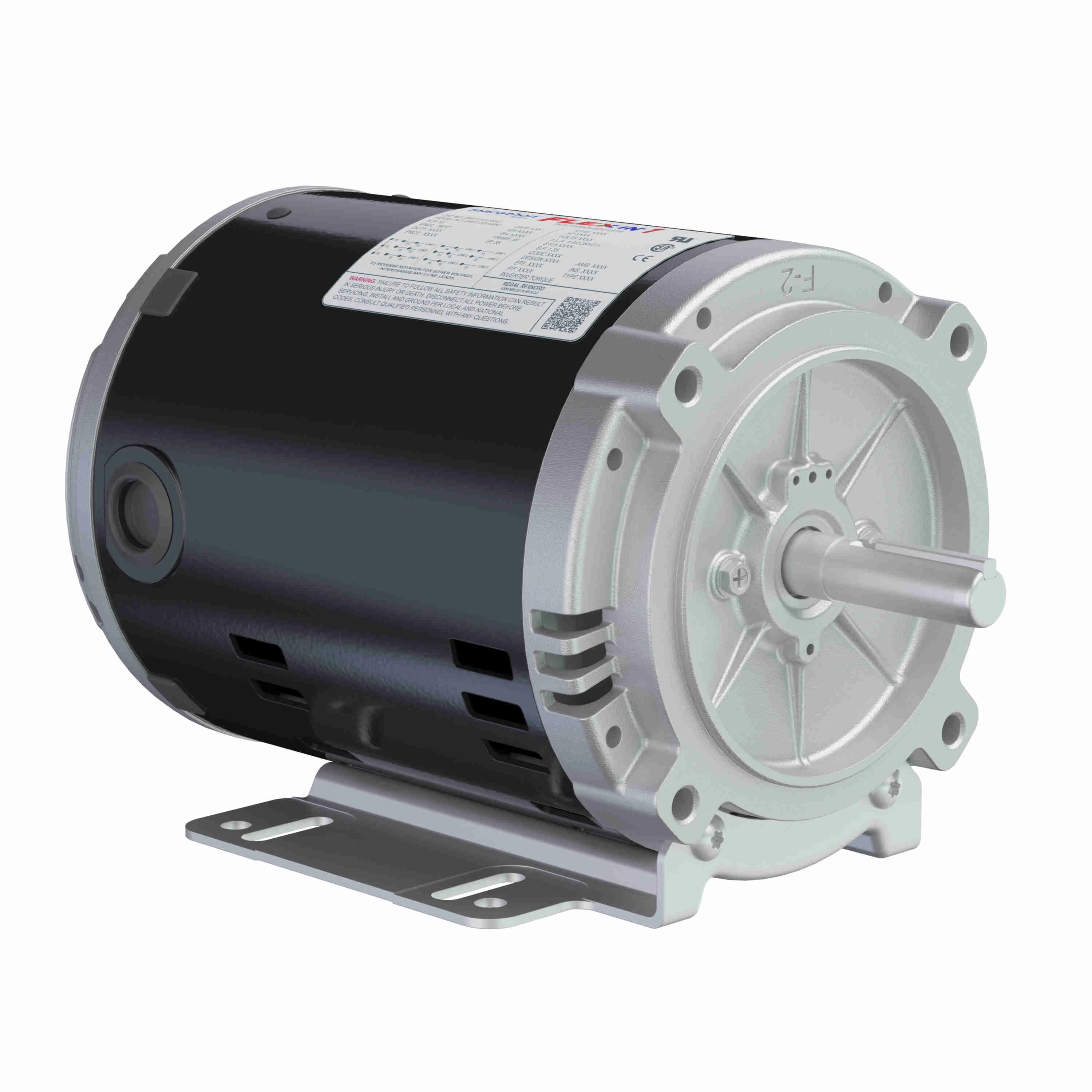

056T34D15644 | 230/460/190/380V | 3450 RPM | 1/2 hp | Bolt On Base | 1, 1.25 | 2-2/1A | 56C | CCW | €681.77 |
