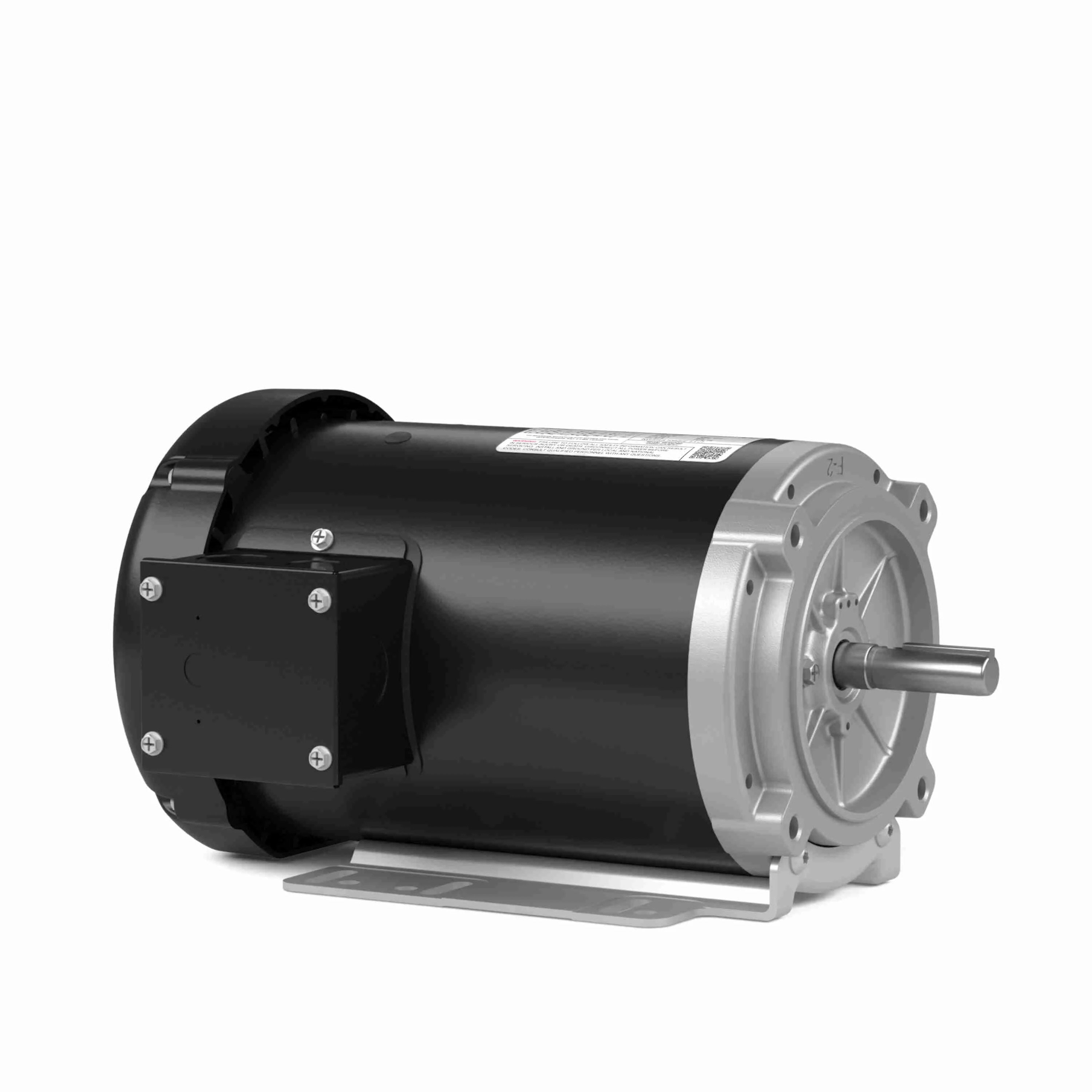

LEESON 056T34D15652 FX03BK001 / 56T34D15652A General Purpose Motor, 3 HP, 3 Phase, 60/50 Hz, 208-230/460 and 190/380V, 3600 RPM
Item: CT2FUCModel: 056T34D15652Cross Ref: 801VA7 / FX03BK001 / 56T34D15652A
In Stock
Get it by Thursday, Dec 18
10.00% off
€992.09 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Motor |
| Bearing Type | Ball |
| Duty Cycle | Continuous |
| Frame | 56HC |
| Frame Material | Rolled Steel |
| Full Load Amps | 8.2-7.6/3.8A |
| Hp | 3 hp |
| Hz | 60 Hz |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Max. Ambient Temp. | 40°C |
| Motor Bearings | Ball |
| Motor Design | 3 Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Universal |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CCW |
| Motor Thermal Protection | None |
| Mounting Type | Universal |
| Nameplate Rpm | 3450 RPM |
| Nema Design | F |
| Nominal Efficiency | 87.5% |
| Number Of Speeds | 1 |
| Overall Length | 13 1/4" |
| Phase | 3 |
| Rpm Range | 3001-3600 RPM |
| Service Factor | 1.15 |
| Shaft Length | 1 7/8" |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V |
| Weight | 43 lbs. |
Shipping Info:
| Ship weight (kg) | 19.35 |
| Ship height (cm) | 20.62 |
| Ship length (cm) | 40.94 |
| Ship width (cm) | 26.04 |
| Country of Origin | MX |
Product Variants
| Model | Voltage | Nameplate Rpm | Hp | Mounting Type | Service Factor | Full Load Amps | Frame | Motor Shaft Rotation | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 056T34D15648 | 208-230/460/190/380V | 3450 RPM | 1 1/2 hp | Bolt On Base | 1, 1.15 | 4-4.2/2A | 56HC | CCW | €581.36 | |
| 056T17D15850 | 230/460V | 1725 RPM | 1 1/2 hp | Bolt On Base | 1, 1.15 | 4.4/2.2A | 56HC | CCW | €645.55 | |
| 056T11D15535 | 208-230/460/190/380V | 1140 RPM | 1 hp | Bolt On Base | 1, 1.15 | 3.4-3.5/6.8A | 56C | CCW | €1,166.86 | |
| 056T17D99083 | 208-230/460V | 1725 RPM | 1 hp | Universal | 1.15 | 3.1-3.2/1.6A | 56HC | CCW | €857.31 | |
| 056T34D15646 | 208-230/460/190/380V | 3450 RPM | 1 hp | Bolt On Base | 1, 1.25 | 2.8-3/1.4A | 56HC | CCW/CW | €538.80 | |
| 056T11D15533 | 208-230/460/190/380V | 1140 RPM | 1/2 hp | Bolt On Base | 1, 1.25 | 2.1-2.2/1.1A | 56HC | CCW | €1,023.14 | |
| 056T17D15844 | 208-230/460/190/380V | 1725 RPM | 1/2 hp | Bolt On Base | 1, 1.25 | - | 56HC | CCW | €822.09 |
