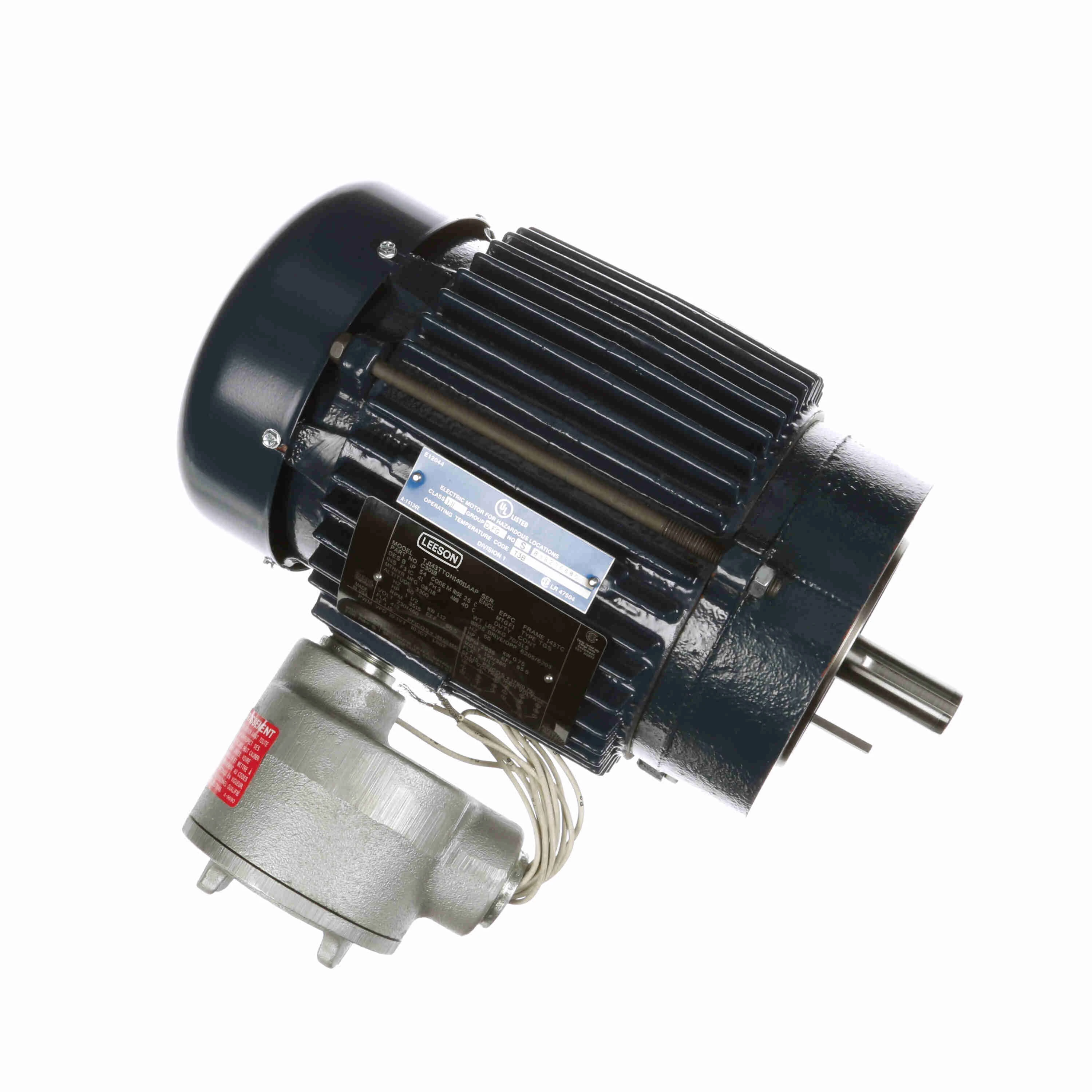

LEESON 143TTGN14011 143TTGN14011AA / C301B Electric Motor, 1.5HP, 3515 RPM, 3 Phase, 230/460V
Get it by Tuesday, Aug 25
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| Bearing Type | Deep Groove Ball |
| De Bearing Size | 6205 |
| Design Code | B |
| Dimension S | 13.95" x 12.95" |
| Duty Cycle | Continuous |
| Efficiency | 85.5% |
| Electrical Type | Squirrel Cage Inverter Rated |
| Enclosure | XPFC |
| Enclosure Type | IP54 Epfc |
| Extension Shaft Dia. | 7/8" x 2.13" |
| Frame | 143tc |
| Frame Length | 6.25 |
| Frequency | 60 Hz |
| Height | 9.38" |
| Hp | 1 1/2 hp |
| Insulation Class | Class F |
| Kva Code | M |
| Kw | 1.1 kW |
| Length | 15 1/2" |
| Motor Orientation | Horizontal |
| Mounting Type | Round |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Opp Drive End Bearing Size | 6203 |
| Phase | 3 |
| Power Factor | 85.5 |
| Product Datasheet | leeson-c301b.pdf |
| Resistance Main | 9.27 ohms |
| Rotation | Reversible |
| Service Factor | 1.15 |
| Shaft Extension | 2.13 |
| Shaft Type | T |
| Speed | 3400-3600 RPM |
| Temp. Rating | 40°C |
| Thermal Protection | Thermostat |
| Type | 2 Pole Continuous Duty Low Voltage |
| Voltage | 230/460V |
| Voltage Rating | 230/460V AC |
| Width | 14" |
Shipping Info:
| Ship weight (kg) | 31.5 |
| Ship height (cm) | 23.83 |
| Ship length (cm) | 39.37 |
| Ship width (cm) | 35.56 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Hp | Voltage | Frame | Phase | Motor Application | Motor Mounting Type | Motor Thermal Protection | Motor Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
056H17E5301 | 1/4 hp | 230/460V AC | 56C | 3 | Crane | Rigid Base | Thermostat | 3-Phase | €919.47 | |
 |
056H17E5302 | 1/3 hp | 230/460V AC | 56C | 3 | Crane | Rigid Base | Thermostat | 3-Phase | €1,078.24 | |
 |
056H17E5303 | 1/2 hp | 230/460V AC | 56C | 3 | Crane | Rigid Base | Thermostat | 3-Phase | €1,452.07 | |
 |
056H17E5304 | 3/4 hp | 230/460V AC | 56C | 3 | Crane | Rigid Base | Thermostat | 3-Phase | €1,287.06 | |
 |
056H17E5305 | 1 hp | 230/460V AC | 56C | 3 | Crane | Rigid Base | Thermostat | 3-Phase | €1,409.55 | |
 |
118015.00 | 33/100 hp | 90V | 56C | - | Hazardous Location | Face, Base | Auto | Permanent Magnet Dc | €5,029.70 | |
 |
118016.00 | 1/2 hp | 90V | 56C | - | Hazardous Location | Face, Base | Auto | Permanent Magnet Dc | €4,540.55 |
