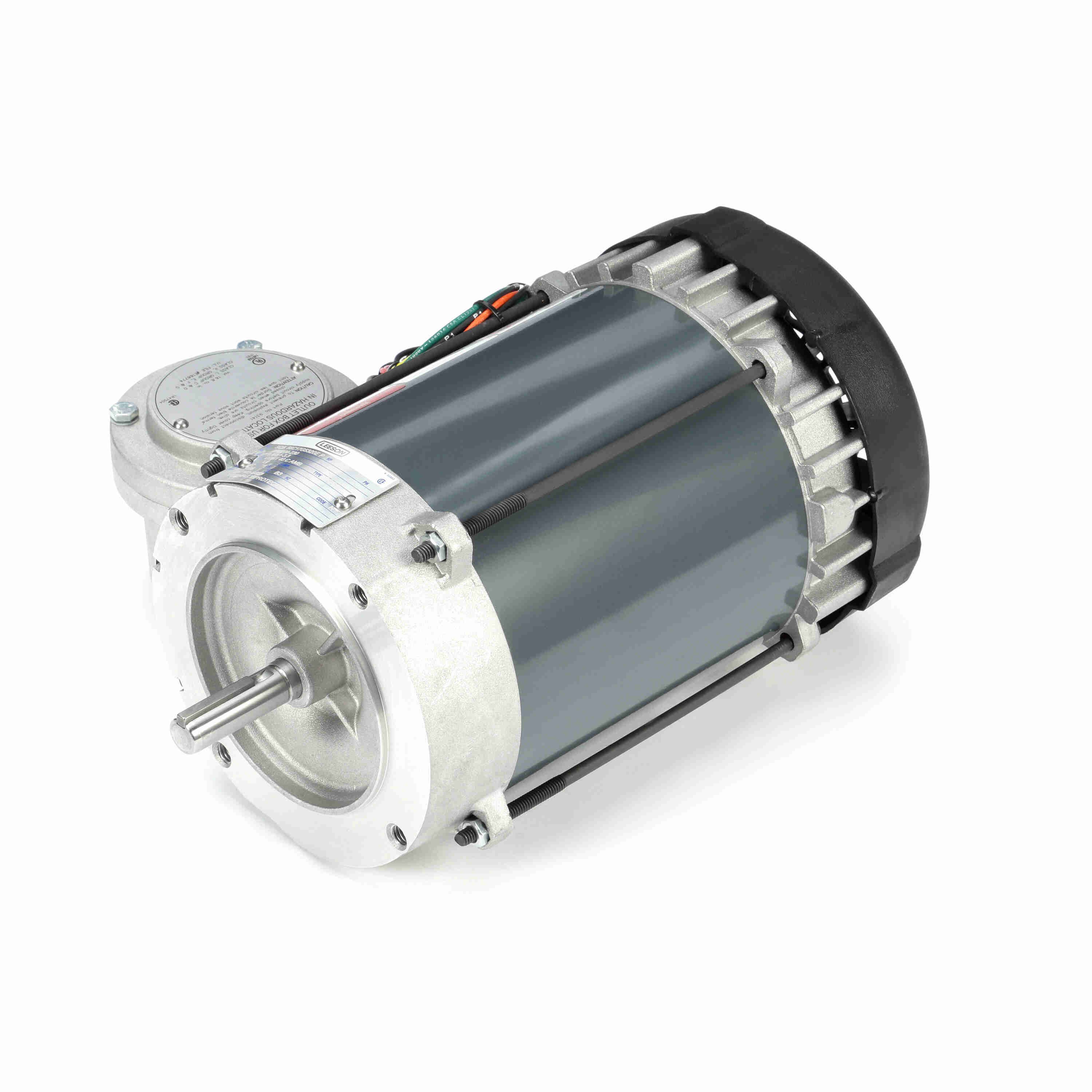

LEESON 056C17G5320 G853 / 56C17G5320E Explosion Proof Motor, 0.33 HP, 1 Phase, 60 Hz, 115/230 V, 1800 RPM
Get it by Thursday, Dec 18
€909.35 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hazardous Location Motor |
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 Only |
| Duty Cycle | Continuous |
| Efficiency Group | Standard |
| Enclosure Type | Hazardous Location |
| Frame | 56C |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 6.6/3.3-3.1A |
| Hazardous Location Class | 1 C, D / 2 F, G |
| Hazardous Location Division | Division 1 |
| Hp | 1/3 hp |
| Includes | Explosion Proof Conduit Box |
| Insulation Class | Class B |
| Lead Length | 18" |
| Length Less Shaft | 11 3/8" |
| Max. Ambient Temp. | 104°F |
| Motor Application | Hazardous Location |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | Automatic |
| Motor Type | Capacitor Start |
| Mounting Type | Face |
| Nameplate Rpm | 1725 RPM |
| Nema Design | No Design Code |
| Nominal Efficiency | 55% |
| Number Of Speeds | 1 |
| Overall Length | 13 7/16" |
| Phase | 1 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 1/16" |
| Temp. Code | T3B |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 115/208-230V |
Shipping Info:
| Ship weight (kg) | 12.15 |
| Ship height (cm) | 20.62 |
| Ship length (cm) | 41.61 |
| Ship width (cm) | 26.67 |
| HS code | 8501404040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Hp | Nameplate Rpm | Frame | Rpm Range | Motor Thermal Protection | Mounting Type | Frame Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
056C17E5319 | 115/208-230V | 1/4 hp | 1725 RPM | 56C | 1701-1800 RPM | Automatic | Face | Steel | €807.48 | |
 |
056C17G5321 | 115/208-230V | 1/2 hp | 1725 RPM | 56C | 1701-1800 RPM | Automatic | Face | Rolled Steel | €987.75 | |
 |
056C17G5322 | 115/208-230V | 3/4 hp | 1725 RPM | 56C | 1701-1800 RPM | - | Face | Rolled Steel | €1,108.14 | |
 |
056C17G5323 | 115/208-230V | 1 hp | 1725 RPM | 56C | 1701-1800 RPM | Automatic | Face | Rolled Steel | €1,153.21 | |
 |
056C34G5311 | 115/208-230V | 1/2 hp | 3450 RPM | 56C | 3001-3600 RPM | Auto | Face | Rolled Steel | €818.60 | |
 |
5KC49MN6379 | 115V AC | 1/4 hp | 1140 RPM | 56CZ | - | Automatic | C Face, Footless | Steel | €969.78 |
