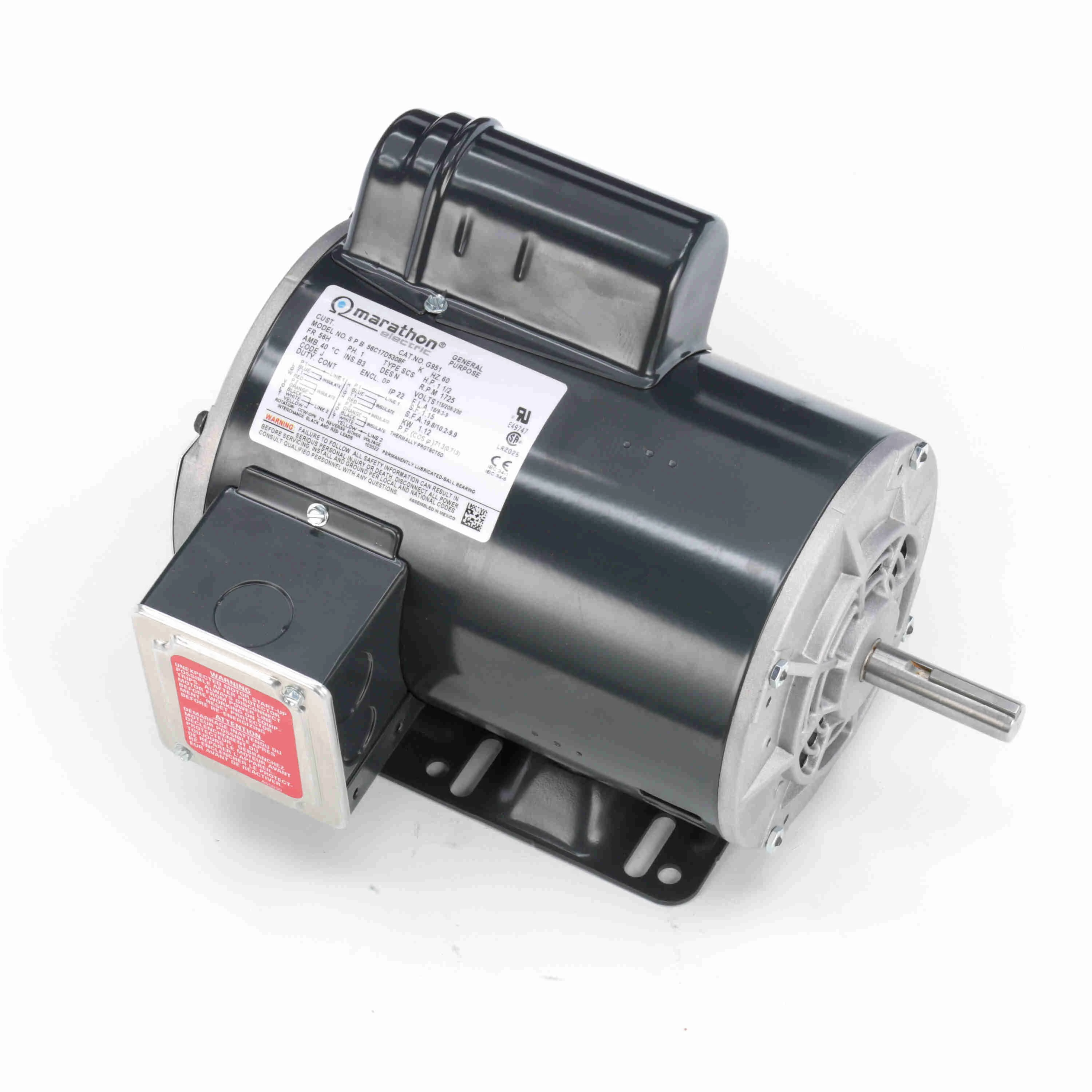

LEESON 056C17D5308 Air Compressor Motor, Capacitor Start, 1 1/2 HP, 1725 RPM, 115/208 To 230V | CH9NVR 61KN12

LEESON 056C17D5308 G951 / 56C17D5308F Air Compressor Motor, 1.50 HP, 1 Phase, 60 Hz, 115/208-230V, 1800 RPM

Item: CH9NVRModel: 056C17D5308Cross Ref: 61KN12 / G951 / 56C17D5308F
Check Availability
In Stock

Get it by Friday, Dec 19

€748.45
10.00% off
€673.61 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Air Compressor Motor
Bearing Type Ball
Duty Cycle Continuous
Frame 56H
Frame Material Steel
Frequency 60 Hz
Full Load Amps 18/9-9.3A
Hp 1 1/2 hp
Includes Key
Ins. Class Class B
Length Less Shaft 10 1/8"
Manufacturers Warranty Length 18 Months
Max. Ambient Temp. 40°C
Motor Application Air Compressor
Motor Bearings Ball
Motor Design Capacitor Start
Motor Enclosure Design Open Dripproof
Motor Frame Material Steel
Motor Mounting Position Horizontal
Motor Mounting Type Rigid Base
Motor Service Factor 1.15
Motor Shaft Design Keyed
Motor Shaft Rotation CW/CCW
Motor Shaft Rotation Selective Counter Clockwise
Motor Thermal Protection Manual
Motor Type Capacitor Start
Mounting Type Rigid Base
Nameplate Rpm 1725 RPM
No. Of Speeds 1
Nominal Efficiency 77%
Output Power 1.1 kW
Overall Length 12 7/16"
Phase 1
Power Factor 71.3
Rpm Range 1701-1800 RPM
Service Factor 1.15
Shaft Length 1 7/8"
Standards Csa, Ul Listed
Thermal Protection Manual
Usable @ 200v No
Usable @ 208v Yes
Voltage 115/208-230V AC
Warranty 1.5 yrs.
Weight 40 lbs.

Shipping Info:

Ship weight (kg) 18
Ship height (cm)23.16
Ship length (cm)40.94
Ship width (cm)26.04
HS code8501406040
Country of OriginMX

Product Variants

ProductModelVoltageHpNameplate RpmRpm RangeMotor Enclosure DesignFrameMotor Shaft RotationService FactorPrice
LEESON 116523.00 Air Compressor Motor, Capacitor Start, 5 HP, 3600 RPM, 208 To 230V AC | AJ2QTG 61KN15 116523.00208-230V5 hp3600 RPM3001-3600 RPMDripproof56CW/CCW1€1,140.25

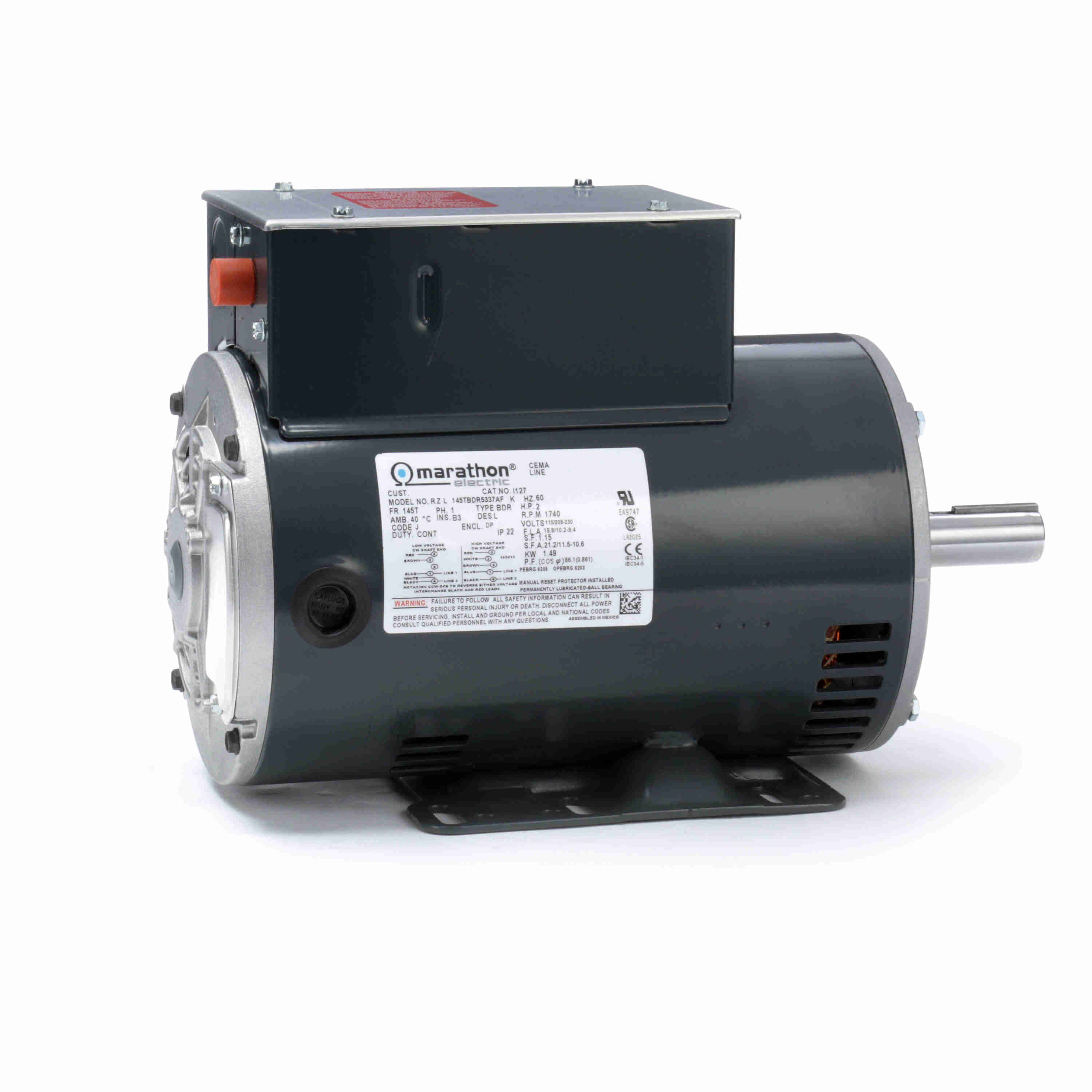

LEESON 145TBDR5337 Air Compressor Motor, Capacitor Start, 2 HP, 1740 RPM, 115/208 To 230V AC | CH9NVG 61KN13 145TBDR5337115/208-230V AC2 hp1740 RPM1701-1800 RPMOpen Dripproof145TClockwise/Counter Clockwise1.15€772.07
LEESON B387 Air Compressor Motor, Capacitor Start, 6 HP, 3600 RPM, 230V AC | CH9NVJ 61KN20 B387230V AC6 hp3600 RPM3001-3600 RPMOpen DripproofR56YCounter Clockwise Shaft End1€1,313.11

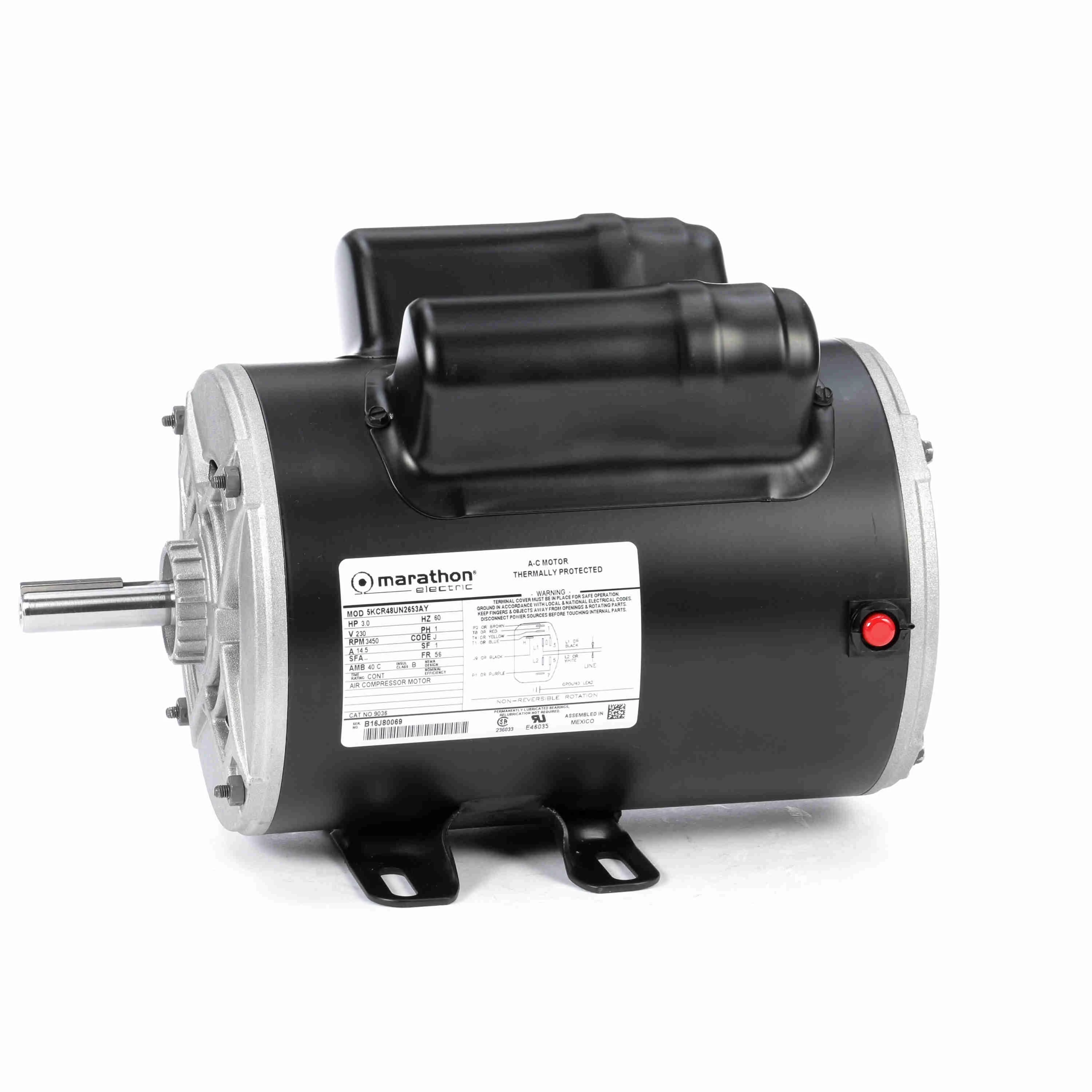

LEESON 5KCR48UN2653Y Air Compressor Motor, Capacitor Start, 3 HP, 3450 RPM, 230V AC | CH9NVL 61KN14 5KCR48UN2653Y230V AC3 hp3450 RPM3001-3600 RPMOpen Dripproof56Counter Clockwise Shaft End1€584.66
LEESON B384 Air Compressor Motor, Capacitor Start, 5 HP, 3600 RPM, 208 To 230V AC | CH9NVM 61KN19 B384208-230V AC5 hp3450 RPM3001-3600 RPMOpen DripproofR56YCounter Clockwise Shaft End1.15€773.01
LEESON B813 Air Compressor Motor, Capacitor Start, 5 HP, 3600 RPM, 230V AC | CH9NVN 61KN18 B813230V AC5 hp3600 RPM3001-3600 RPMOpen DripproofY56HZCounter Clockwise Shaft End1€770.43
LEESON 056B34D5302 Air Compressor Motor, Capacitor Start, 5 HP, 3450 RPM, 230V AC | CH9NVP 61KN17 056B34D5302230V AC5 hp3450 RPM3001-3600 RPMOpen Dripproof56HClockwise/Counter Clockwise1.15€1,113.07
