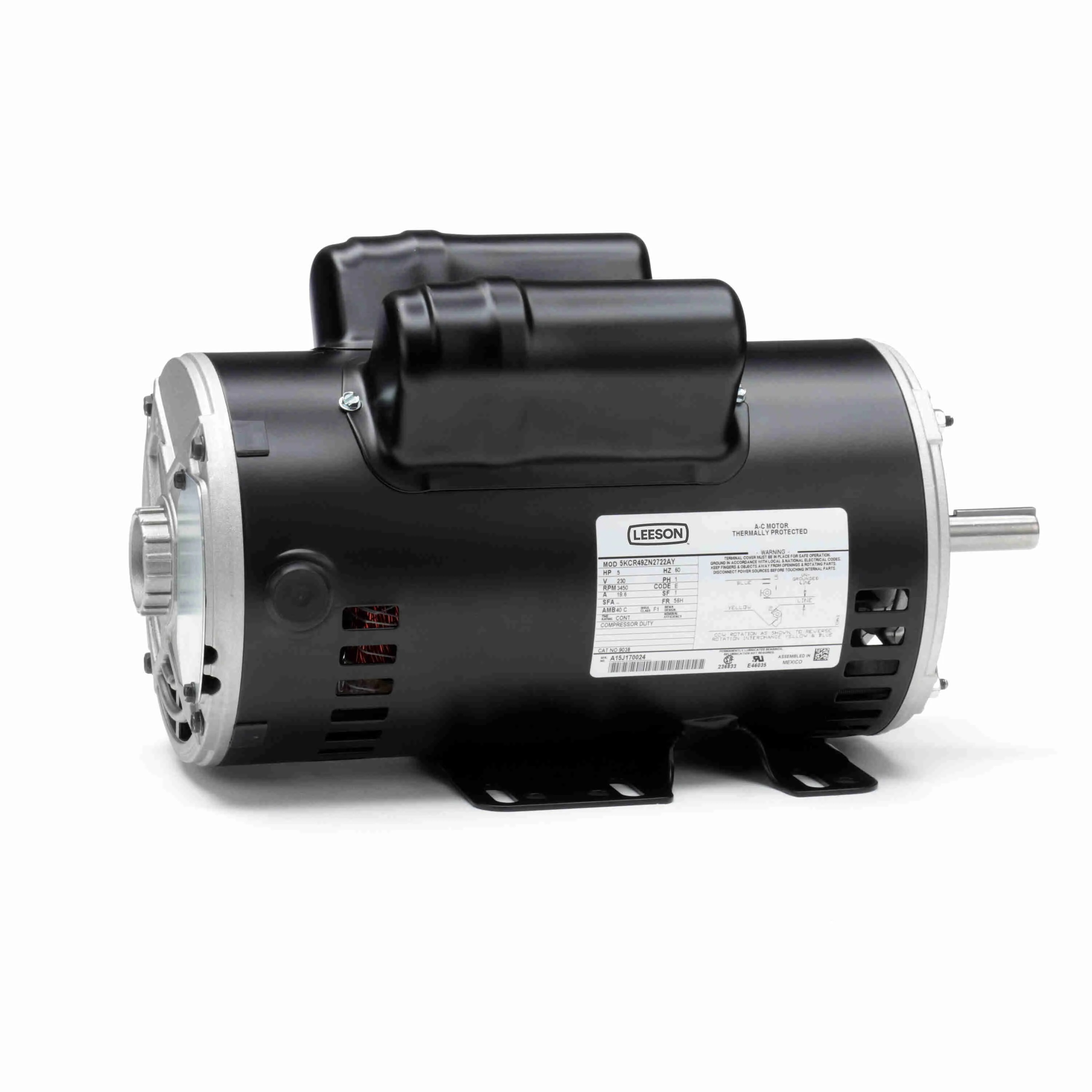

LEESON 5KCR49ZN2722Y 5KCR49ZN2722AY / 9038B Air Compressor Motor, 5 HP, 1 Phase, 60 Hz, 230V, 3600 RPM
Item: AJ2NUPModel: 5KCR49ZN2722YCross Ref: 61KN16 / 5KCR49ZN2722AY / 9038B
In Stock
Get it by Tuesday, Aug 25
5.00% off
€955.87 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Application | Air Compressor |
| Bearing Type | Ball |
| Conduit Box Position | F1 Only |
| Duty Cycle | Continuous |
| Efficiency | 81.6% |
| Frame | 56H |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 19.6A |
| Hp | 5 hp |
| Included | Key |
| Ins. Class | Class F |
| Insulation Class | Class F1 |
| Length Less Shaft | 13 1/16" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Air Compressor |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | ODP |
| Motor Frame Material | Steel |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CCWSE |
| Motor Thermal Protection | Manual |
| Motor Type | Compressor Duty Motor |
| Mounting Type | Rigid Base |
| Nameplate Speed | 3600 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 81.6% |
| Overall Length | 15 1/16" |
| Phase | 1 |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Speed | 3001-3600 RPM , 3450 RPM |
| Thermal Protection | Manual |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230V AC |
Shipping Info:
| Ship weight (kg) | 22.5 |
| Ship height (cm) | 24.13 |
| Ship length (cm) | 48.74 |
| Ship width (cm) | 27.79 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Speed | Hp | Nameplate Speed | Shaft Length | Full Load Amps | Frame | Frame Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KCR48TN2650Y | 115/230V AC | 3001-3600 RPM | 2 hp | 3450 RPM | 1 7/8" | 17/8.5A | 56 | Steel | €535.96 | |
 |
110222.00 | 230V | 3400-3600 RPM | 3 hp | 3600 RPM | 1.87" | 15A | 56Y | Rolled Steel | €679.72 | |
 |
110232.00 | 115-230V | 3400-3600 RPM | 2 hp | 3600 RPM | 1 22/25" | 11/22A | 56 | Rolled Steel | €606.67 | |
 |
111275.00 | 230V | 3400-3600 RPM | 5 hp | 3600 RPM | 1.87" | 20.8A | 56Y | Rolled Steel | €765.03 | |
 |
116523.00 | 208-230V | 3001-3600 RPM | 5 hp | 3600 RPM | 1 22/25" | 15A | 56 | Rolled Steel | €1,088.71 | |
 |
120004.00 | 115/208-230V | 1700-1800 RPM | 1 1/2 hp | 1800 RPM | 2 1/4" | 17.2/8.6A | G145T | Rolled Steel | €915.58 | |
 |
120554.00 | 230V | 3001-3600 RPM | 5 hp | 3450 RPM | 2 1/4" | 20.8A | 145T | Rolled Steel | €748.35 |
