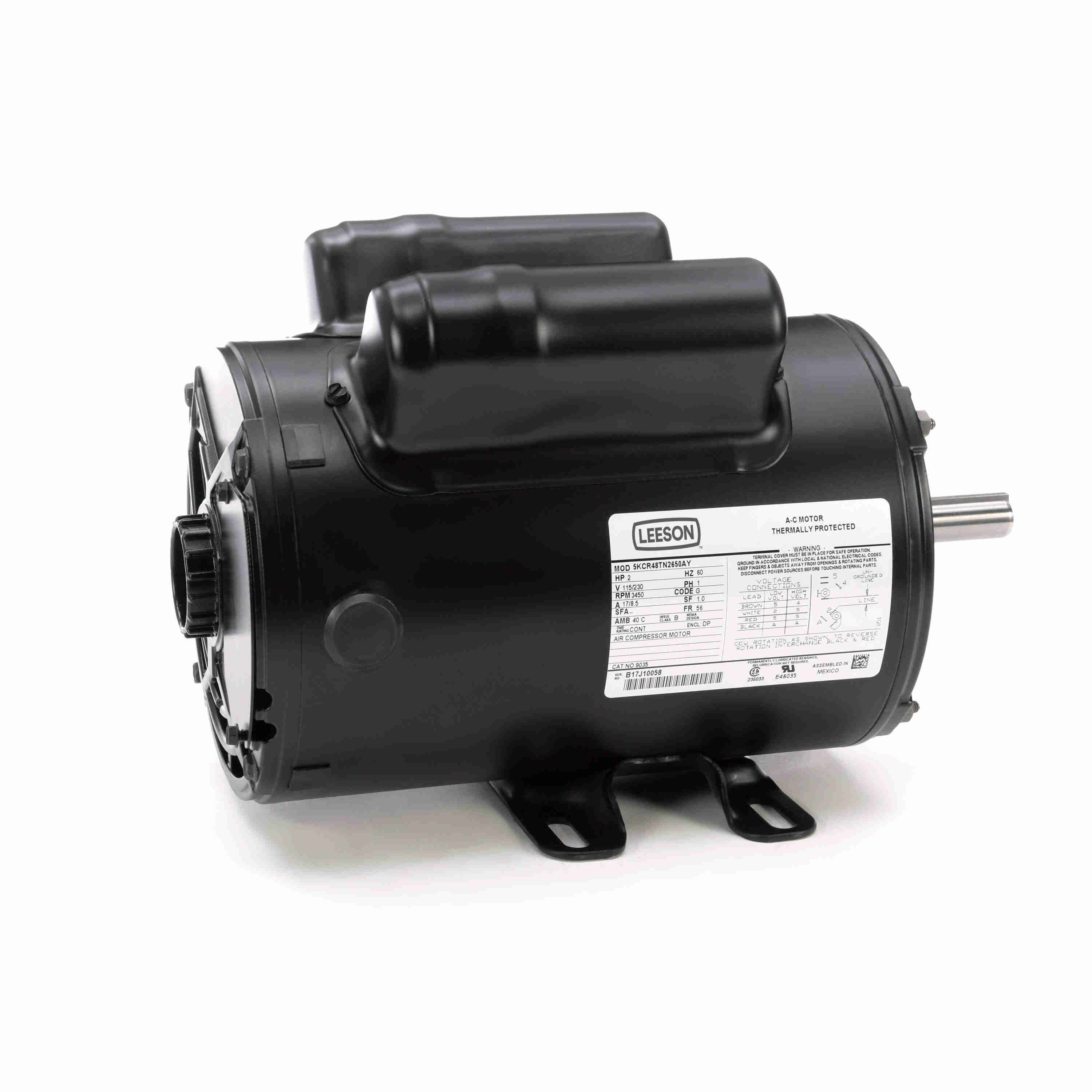

LEESON 5KCR48TN2650Y 5KCR48TN2650AY / 9035 Air Compressor Motor, 2 HP, 1 Phase, 60 Hz, 115/230V, 3600 RPM
Get it by Tuesday, Sep 1
€535.96 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Application | Air Compressor |
| Bearing Type | Ball |
| Capacitor Included | Yes |
| Capacitor Required | Yes |
| Duty Cycle | Continuous |
| Frame | 56 |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 17/8.5A |
| Hp | 2 hp |
| Included | Capacitor |
| Insulation Class | Class B |
| Length Less Shaft | 10 7/8" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Air Compressor |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start, Run |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Counter Clockwise Shaft End |
| Motor Shaft Rotation | CW, CCW |
| Motor Thermal Protection | Manual |
| Motor Type | Capacitor Start, Run |
| Mounting Type | Rigid Base |
| Nameplate Speed | 3450 RPM |
| No. Of Speed | 1 |
| Overall Length | 12 3/4" |
| Phase | 1 |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Speed | 3001-3600 RPM |
| Thermal Protection | Manual |
| Voltage | 115/230V AC |
Shipping Info:
| Ship weight (kg) | 17.1 |
| Ship height (cm) | 20.78 |
| Ship length (cm) | 32.16 |
| Ship width (cm) | 16.41 |
| HS code | 8501406040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Speed | Hp | Nameplate Speed | Shaft Length | Full Load Amps | Frame | Frame Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KCR49ZN2722Y | 230V AC | 3450 RPM | 5 hp | 3600 RPM | 1 7/8" | 19.6A | 56H | Steel | €1,006.19 | |
 |
110222.00 | 230V | 3400-3600 RPM | 3 hp | 3600 RPM | 1.87" | 15A | 56Y | Rolled Steel | €679.72 | |
 |
110232.00 | 115-230V | 3400-3600 RPM | 2 hp | 3600 RPM | 1 22/25" | 11/22A | 56 | Rolled Steel | €606.67 | |
 |
111275.00 | 230V | 3400-3600 RPM | 5 hp | 3600 RPM | 1.87" | 20.8A | 56Y | Rolled Steel | €765.03 | |
 |
116523.00 | 208-230V | 3001-3600 RPM | 5 hp | 3600 RPM | 1 22/25" | 15A | 56 | Rolled Steel | €1,088.71 | |
 |
120004.00 | 115/208-230V | 1700-1800 RPM | 1 1/2 hp | 1800 RPM | 2 1/4" | 17.2/8.6A | G145T | Rolled Steel | €915.58 | |
 |
120554.00 | 230V | 3001-3600 RPM | 5 hp | 3450 RPM | 2 1/4" | 20.8A | 145T | Rolled Steel | €748.35 |
