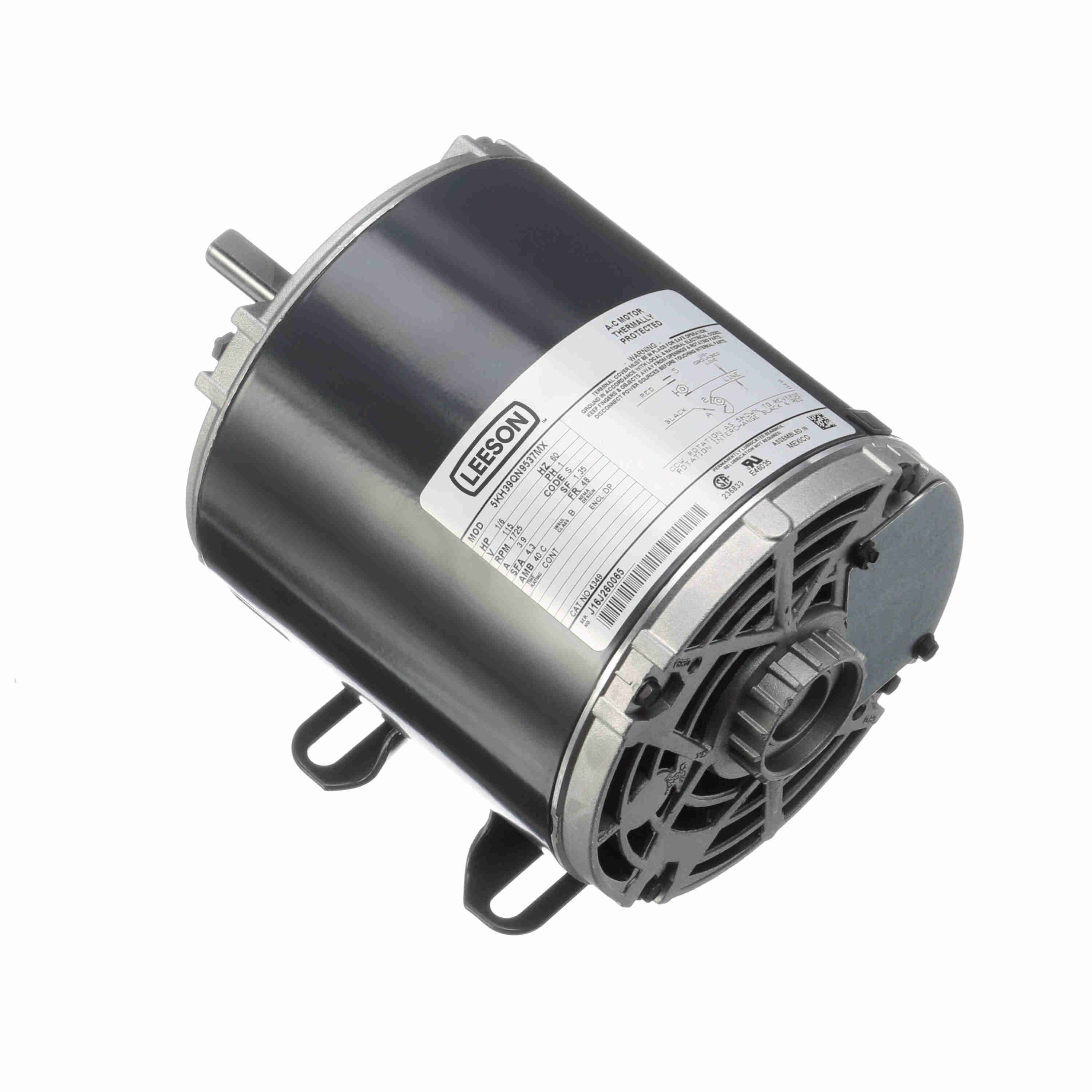

LEESON 5KH39QN9537X 4349 / 5KH39QN9537MX General Purpose Motor, 0.17 HP, 1 Phase, 60 Hz, 115V, 1800 RPM
Get it by Friday, Dec 19
€250.64 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Capacitor Required | No |
| Duty Cycle | Continuous |
| Efficiency | 48.5% |
| Efficiency Group | Standard |
| Frame | 48 |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 3.9A |
| Hp | 1/6 hp |
| Insulation Class | Class B |
| Inverter Rated | No |
| Length Less Shaft | 7 3/8" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 104°F |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Split-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.35 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | Auto |
| Motor Type | Split Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1725 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 48.5% |
| Number Of Speeds | 1 |
| Overall Length | 8 7/8" |
| Phase | 1 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.35 |
| Shaft Dia. | 1/2" |
| Shaft Length | 1 1/2" |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V AC |
| Warranty | 1 yr. |
| Weight | 12 lbs. |
Shipping Info:
| Ship weight (kg) | 5.4 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 34.77 |
| Ship width (cm) | 18.11 |
| HS code | 8501404040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Motor Enclosure Design | Voltage | Nameplate Rpm | Hp | Full Load Amps | Frequency | Service Factor | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KH39QN9538 | Open Dripproof | 115V AC | 1725 RPM | 1/4 hp | 5.1A | 60 Hz | 1.35 | Split Phase | €256.20 | |
 |
5KH39QN9686X | Open Dripproof | 115V AC | 1725 RPM | 1/4 hp | 5.1A | 60 Hz | 1.35 | Split Phase | €263.61 | |
 |
5KCR49WN0270T | Open Dripproof | 115/208-230V AC | 1725 RPM | 2 hp | 22/10.9-11A | - | 1.15 | Capacitor Start/Run | €966.76 | |
 |
056B34D2029 | Dripproof | 115/208-230V | 3450 RPM | 1 hp | 10.6/5.5-5.3A | 60 Hz | 1.15 | - | €529.46 | |
 |
056B34D11019 | Open Dripproof | 115/230V AC | 3450 RPM | 3/4 hp | 7.2/3.6A | 60 Hz | 1.25 | Capacitor Start/Run | €425.97 | |
 |
056B11D15505 | Open Dripproof | 115/230V AC | 1140 RPM | 1/2 hp | 5.6/2.8A | 60 Hz | - | Capacitor Start/Run | €1,110.29 | |
 |
056B17D11037 | Open Dripproof | 115/230V AC | 1725 RPM | 1/3 hp | 3.8/1.9A | 50/60 Hz | 1.35 | - | €494.55 |
