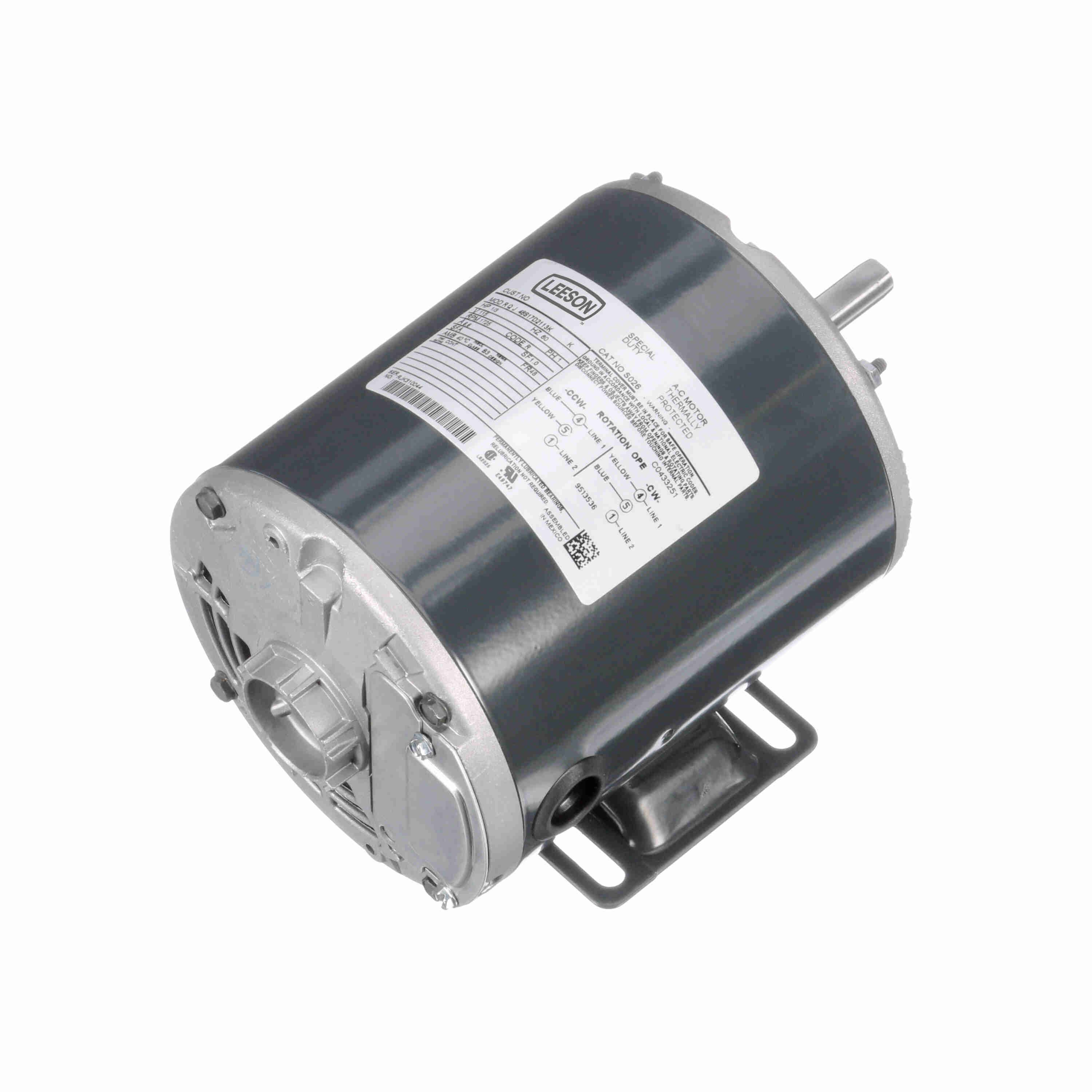

LEESON 048S17D2113 S026 / 48S17D2113K General Purpose Motor, 0.33 HP, 1 Phase, 60 Hz, 115V, 1800 RPM
Get it by Thursday, Dec 18
€227.18 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 57.5% |
| Frame | 48 |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 6.6A |
| Hp | 1/3 hp |
| Insulation Class | Class B |
| Length Less Shaft | 7 3/4" |
| Max. Ambient Temp. | 104°F |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Split-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Thermal Protection | Auto |
| Motor Type | Split Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1725 RPM |
| Nominal Efficiency | 57.5% |
| Number Of Speeds | 1 |
| Overall Length | 9 5/16" |
| Phase | 1 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 1 9/16" |
| Standards | Csa, Ul Recognized |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V AC |
| Weight | 14 lbs. |
Shipping Info:
| Ship weight (kg) | 6.3 |
| Ship height (cm) | 16.81 |
| Ship length (cm) | 28.09 |
| Ship width (cm) | 17.15 |
| HS code | 8501404040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Hp | Full Load Amps | Motor Type | Service Factor | Frame | Frame Material | Thermal Protection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
048C17D2023 | 115/230V AC | 1/3 hp | 7/3.5A | Capacitor Start | 1.0 | 48 | Rolled Steel | None | €295.09 | |
 |
048S17D2090 | 115V AC | 1/3 hp | 6.6A | Split Phase | 1.0 | 48 | Rolled Steel | None | €219.16 | |
 |
056C17D2054 | 115/230V AC | 3/4 hp | 10.4/5.2A | Capacitor Start | 1.0 | 56 | Rolled Steel | None | €434.01 | |
 |
056C17D2098 | 115/230V AC | 1/2 hp | 9.1/4.5A | Capacitor Start | 1.0 | 56 | Rolled Steel | None | €363.62 | |
 |
056C17D5319 | 115/230V AC | 1 hp | 13.6/6.8A | Capacitor Start | 1.0 | 56 | Rolled Steel | None | €585.25 | |
 |
056S17D2046 | 115V AC | 1/2 hp | 9.2A | Split Phase | 1 | 56 | Rolled Steel | None | €277.19 |
