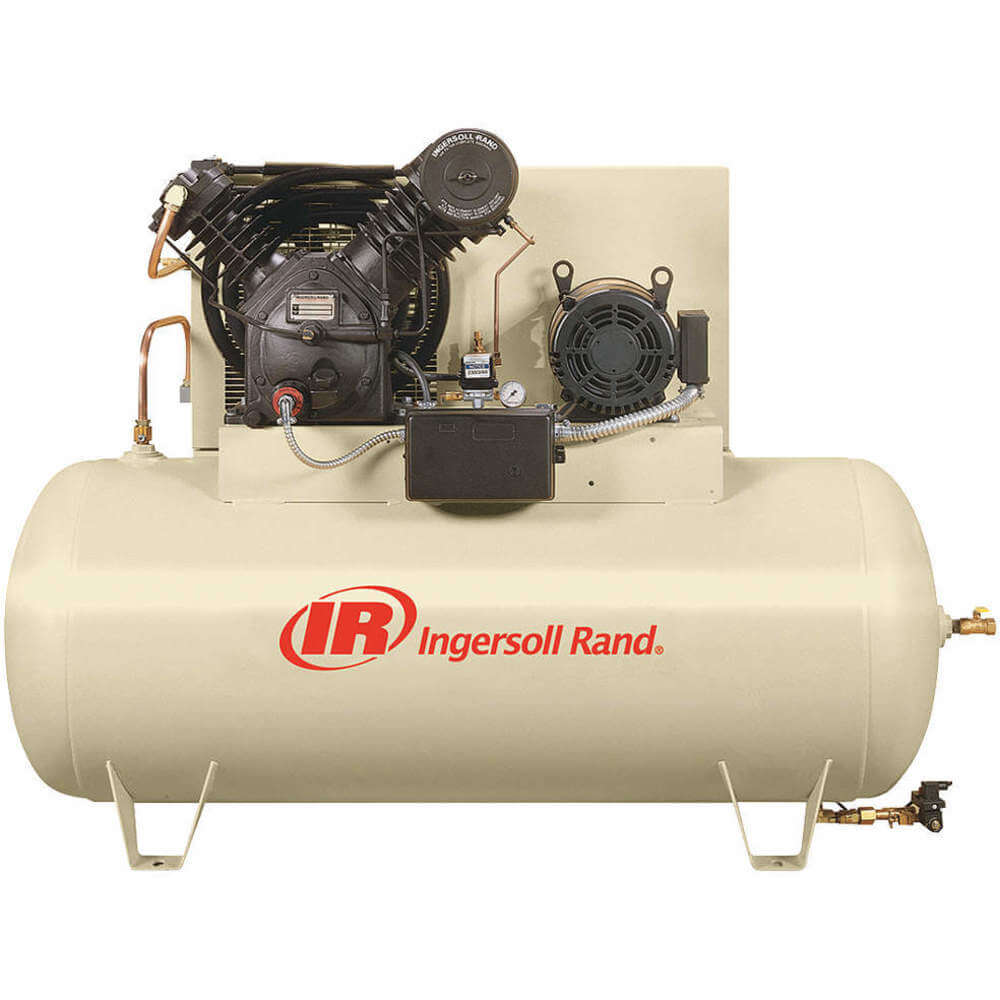

INGERSOLL-RAND 2545E10-P-230/3 Electric Air Compressor 2 Stage 10 Hp
Get it by Tuesday, Sep 1
5.00% off
€8,526.59 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Air Compressor |
| (f)npt Outlet | 3/4" |
| Amps | 24.4A , 25A |
| Asme Tank | Yes |
| Compressor Type | Tank Mounted |
| Control Type | Pressure Switch |
| Converts | 110-220V AC, 220-110V AC |
| Converts | 110 to 220VAC, 220 to 110VAC |
| Cylinder Material | Cast Iron |
| Depth | 10 3/4" |
| Duty Cycle | Continuous |
| Enclosure Material | Metal |
| Enclosure Rating | NEMA 1 |
| Enclosure Type | Open Dripproof |
| Enclousre Color | Black |
| Finish | Powder Coating |
| Fnpt Outlet Size | 3/4" |
| Free Air Cfm @ Max. Pressure | 35 |
| Free Air Cfm @ Max. Pressure | 35 CFM |
| Frequency | 60 Hz |
| Included | Air Cooled Aftercooler, Electronic Drain Valve, Low Oil Protection Switch, Motor Starter, Pressure Gauge, Pressure Safety Valve |
| Inlet Size | 3/4" |
| Input Voltage | 240V AC |
| Life Expectancy | 15000 hrs. |
| Lubrication Type | Splash Lubricated |
| Max. Operating Pressure | 175 psi |
| Max. Pressure | 175 psi |
| Max. Speed | 1050 RPM |
| Motor Type | Open Dripproof |
| Mounting | Portable |
| No. Of Stages | 2 |
| Off Pressure Switch Setting | 175 psi |
| Off Pressure Switch Setting | 175 |
| On Pressure Switch Setting | 140 |
| On Pressure Switch Setting | 135 psi |
| Outlet Gender | Female |
| Outlet Size | 3/4" |
| Outlet Type | NPT |
| Output Power | 10 hp |
| Overall Height | 49.93" |
| Overall Length | 70.43" |
| Overall Width | 27.81" |
| Phase | 3 |
| Pump Location | Top Mount |
| Pump Oil Capacity | 2.5 qt. |
| Pump Oil Capacity | 2.3 qt |
| Pump Rpm | 1050 |
| Pump Speed | 1050 RPM |
| Pump Style | Simplex |
| Pump Type | Reciprocating |
| Sound Level | 83 dBA |
| Tank Size | 120 gal. |
| Tank Style | Horizontal |
| Tank Type | Horizontal |
| Va | 3 kVA |
| Width | 9 3/4" |
Shipping Info:
| Ship weight (kg) | 409.5 |
| Ship height (cm) | 126.82 |
| Ship length (cm) | 178.89 |
| Ship width (cm) | 70.64 |
| HS code | 8414801625 |
| Country of Origin | US |
Product Details:
- ASME Tank (Yes)
Product Variants
| Model | Overall Height | Pump Oil Capacity | Free Air Cfm @ Max. Pressure | Overall Width | Amps | Input Voltage | Control Type | Pump Speed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 2545E10-P-460/3 | 49.93" | 2.3 qt | 35 CFM | 27.81" | 14A | 460V AC | Pressure Switch | 1050 RPM | €9,755.18 | |
| 7100E15-P-230/3 | 57.06" | 2.5 qt | 50 CFM | 31.68" | 37.1A | 240V AC | Pressure Switch | 1100 RPM | €11,647.95 | |
| 7100E15-P-460/3 | 57.06" | 2.5 qt | 50 CFM | 31.68" | 18.6A | 480V AC | Pressure Switch | - | €12,362.62 | |
| 2545E10-P-200-3 | 56" | 2.3 qt | 35 CFM | - | 28.1A | 200V AC | Pressure Switch | 1050 RPM | €9,146.16 | |
| 7100E15-V-230/3 | 52" | 2.5 qt | 50 CFM | 29" | - | - | Dual | 1100 RPM | €8,989.99 | |
| 7100E15-V-200/3 | 52" | 2.5 qt | 50 CFM | 29" | 48.3A | 200V AC | Pressure Switch | 1100 RPM | €10,203.20 |
