INGERSOLL-RAND 2545E10-V-230/3 Electric Air Compressor, 10 Hp, 2 Stage, Horizontal, 120 Gal Tank, 35 Cfm, 240VAC
Get it by Wednesday, Dec 24
10.00% off
€6,289.56 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Air Compressor |
| Amps | 27A |
| Asme Tank | Yes |
| Control Type | Pressure Switch |
| Cylinder Material | Cast Iron |
| Duty Cycle | Continuous |
| Enclosure Rating | NEMA 1 |
| Enclosure Type | Open Dripproof |
| Finish | Powder Coat |
| Free Air Cfm @ Max. Pressure | 35 CFM |
| Frequency | 60 Hz |
| Includes | Manual Drain Valve, Motor Starter, Oil Sight Glass, Pressure Gauge, Pressure Safety Valve |
| Inlet Size | 3/4" |
| Input Voltage | 240V AC |
| Life Expectancy | 15000 hrs. |
| Lubrication Type | Splash Lubricated |
| Max. Operating Pressure | 175 psi |
| Max. Speed | 1050 RPM |
| Number Of Stages | 2 |
| Off Pressure Switch Setting | 175 psi |
| On Pressure Switch Setting | 135 psi |
| Outlet Gender | Female |
| Outlet Size | 3/4" |
| Overall Height | 52" |
| Overall Length | 72" |
| Overall Width | 29" |
| Package Type | Base Model |
| Phase | Three |
| Power Output | 10 hp |
| Pump Location | Top Mount |
| Pump Oil Capacity | 2.3 qt |
| Pump Style | Simplex |
| Pump Type | Reciprocating |
| Sound Level | 83 dBA |
| Tank Size | 120 gal. |
| Tank Style | Horizontal |
Shipping Info:
| Ship weight (kg) | 378.9 |
| Ship height (cm) | 132.08 |
| Ship length (cm) | 182.88 |
| Ship width (cm) | 73.66 |
| Country of Origin | US |
Product Variants
| Model | Lubrication Type | Tank Style | Power Output | Free Air Cfm @ Max. Pressure | Package Type | Tank Size | Phase | Overall Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 2545E10-V-200/3 | Splash Lubricated | Horizontal | 10 hp | 35 CFM | Base Model | 120 gal. | Three | 52" | €7,660.68 | |

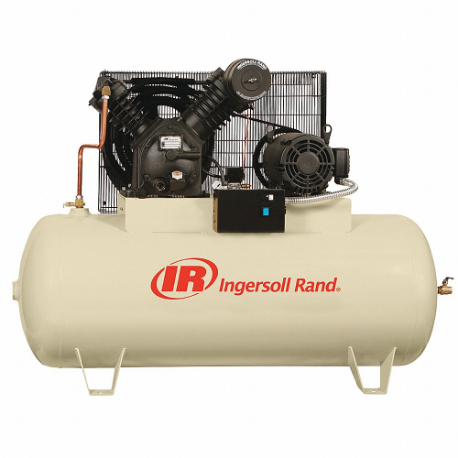

| 2545E10-V-460/3 | Splash Lubricated | Horizontal | 10 hp | 35 CFM | Base Model | 120 gal. | Three | 52" | €6,969.61 | |

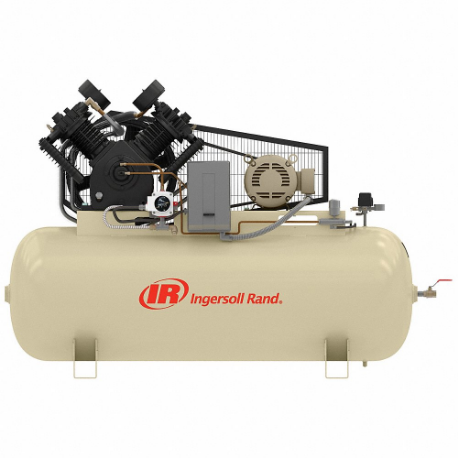

| 447PE10-V (200/208-3-60) | Pressure Lubricated | Horizontal | 10 hp | 36.5 CFM | Base Model | 120 gal. | Three | 54" | €11,395.84 | |
| 447PE10-P (230-3-60) | Pressure Lubricated | Horizontal | 10 hp | 36.5 CFM | Fully Packaged | 120 gal. | Three | 54" | €13,458.99 | |
| 447PE10-V (230-3-60) | Pressure Lubricated | Horizontal | 10 hp | 36.5 CFM | Base Model | 120 gal. | Three | 54" | €11,395.84 | |
| 447PE10-P (200/208-3-60) | Pressure Lubricated | Horizontal | 10 hp | 36.5 CFM | Fully Packaged | 120 gal. | Three | 54" | €13,458.99 | |
| 447PE10-P (460-3-60) | Pressure Lubricated | Horizontal | 10 hp | 36.5 CFM | Fully Packaged | 120 gal. | Three | 54" | €13,585.81 |
