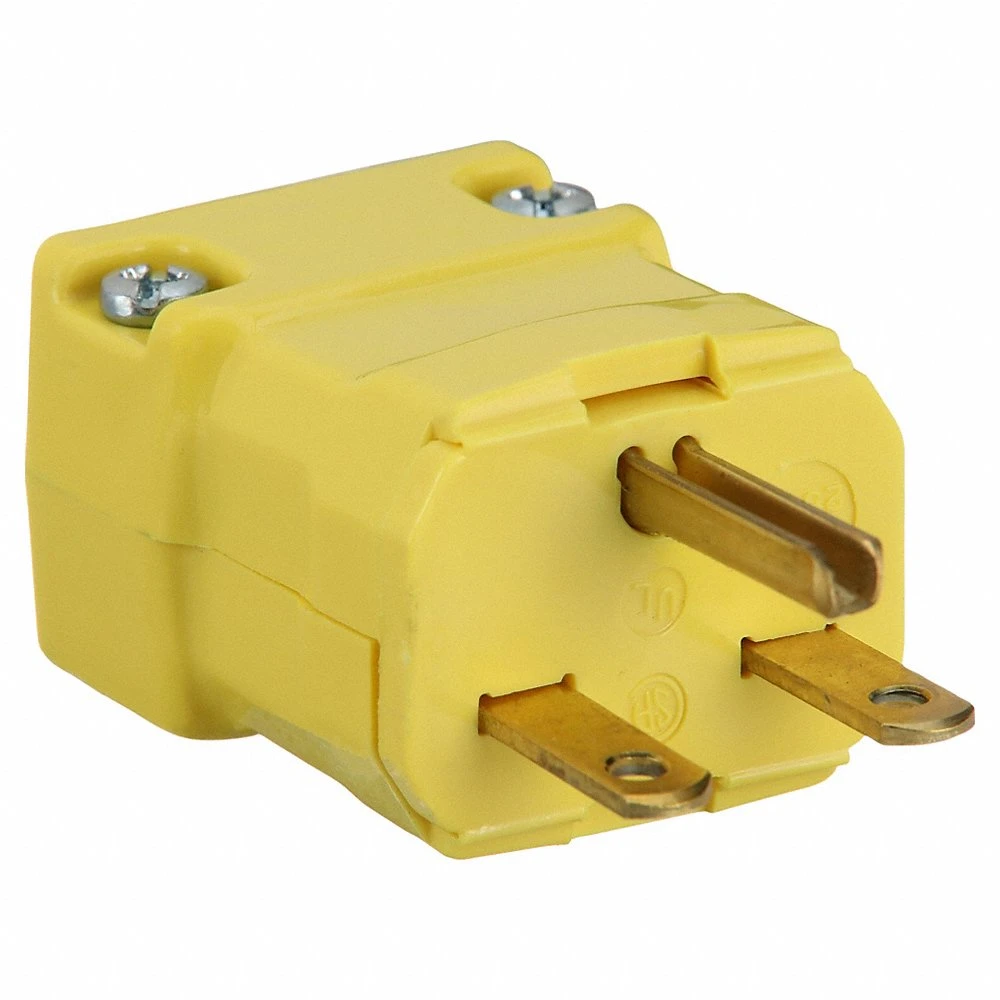

HUBBELL WIRING DEVICE-KELLEMS HBL5666VY Straight Blade Male Plug, 2-P 3-W Grounding, 15A 250V, 6-15P, Yellow
Item: AC8QCFModel: HBL5666VYCross Ref: 3D221
7 In Stock
Yellow
0.22" to 0.66"
NEMA 6-15P
Ships within 2 days via
5.00% off
€28.33 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Plug |
| Amps | 15A |
| Anti Microbial | No |
| Body Length | 1.88" |
| Color | Yellow |
| Connection Orientation | Straight |
| Cord Size | 0.22" to 0.66" |
| Dielectric Strength | Withstands 2,000V minimum |
| For Max. Cable Dia. | 0.66" |
| For Min. Cable Dia. | 0.22" |
| Grade | Commercial |
| Grounding | Grounded |
| Height | 1.13" |
| Housing Color | Yellow |
| Housing Material | Nylon |
| Hp | 1 1/2 hp |
| Insulation Material | Nylon |
| Ip Rating | IP20 |
| Length | 1 22/25" |
| Material | Nylon |
| Max. Hp | 1 1/2 hp |
| Max. Operating Temp. | 167°F |
| Max. Wire Size | 12 AWG |
| Min. Operating Temp. | -40°F |
| Min. Wire Size | 18 AWG |
| Nema Plug Configuration | 6-15P |
| Nema Rating | NEMA 6-15P |
| No. Of Blades | 3 |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Phase | 1 |
| Polarized | Yes |
| Product Datasheet | hubbell-wiring-device-kellems-hbl5666vy.pdf |
| Ul 94 Flammability Rating | HB |
| Voltage | 250V , 250V AC |
| Wattage | 3750 W |
| Watts | 3750 W |
| Width | 1 1/2" |
| Wire Connection Type | Screw Terminal |
| Wire Size | 18 AWG to 12 AWG |
| Wiring Style | Hinged |
| Wiring Type | Hinged |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.87 |
| Ship length (cm) | 4.78 |
| Ship width (cm) | 3.81 |
| HS code | 8536698000 |
| Country of Origin | US |
Product Details:
- Valise Series, Hospital Grade, Straight,
Documentation:
Product Variants
| Product | Model | No. Of Poles | Amps | Color | Phase | Voltage | Housing Color | Material | No. Of Wires | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL5466C | 2 | 20A | Black, White | 1 | 250V AC | Black, White | Nylon | 3 | €61.79 | |
 |
HBL5666C | 2 | 15A | Black, White | 1 | 250V AC | Black, White | Nylon | 3 | €28.71 | |
 |
HBL5866VY | 2 | 15A | Yellow | 1 | 125V AC | Yellow | Nylon | 2 | €29.90 | |
 |
HBL5364VBK | 2 | 20A | Black | 1 | 125V AC | Black | Polycarbonate | 3 | €40.58 | |
 |
HBL5464VY | 2 | 20A | Yellow | 1 | 250V AC | Yellow | Nylon | 3 | €42.67 | |
 |
HBL56CM66C | 2 | 15A | Yellow | 1 | 250V AC | Yellow | Nylon | 3 | €56.30 | |
 |
HBL8364V | 2 | 20A | White | 1 | 125V AC | White | Nylon | 3 | €47.23 |
