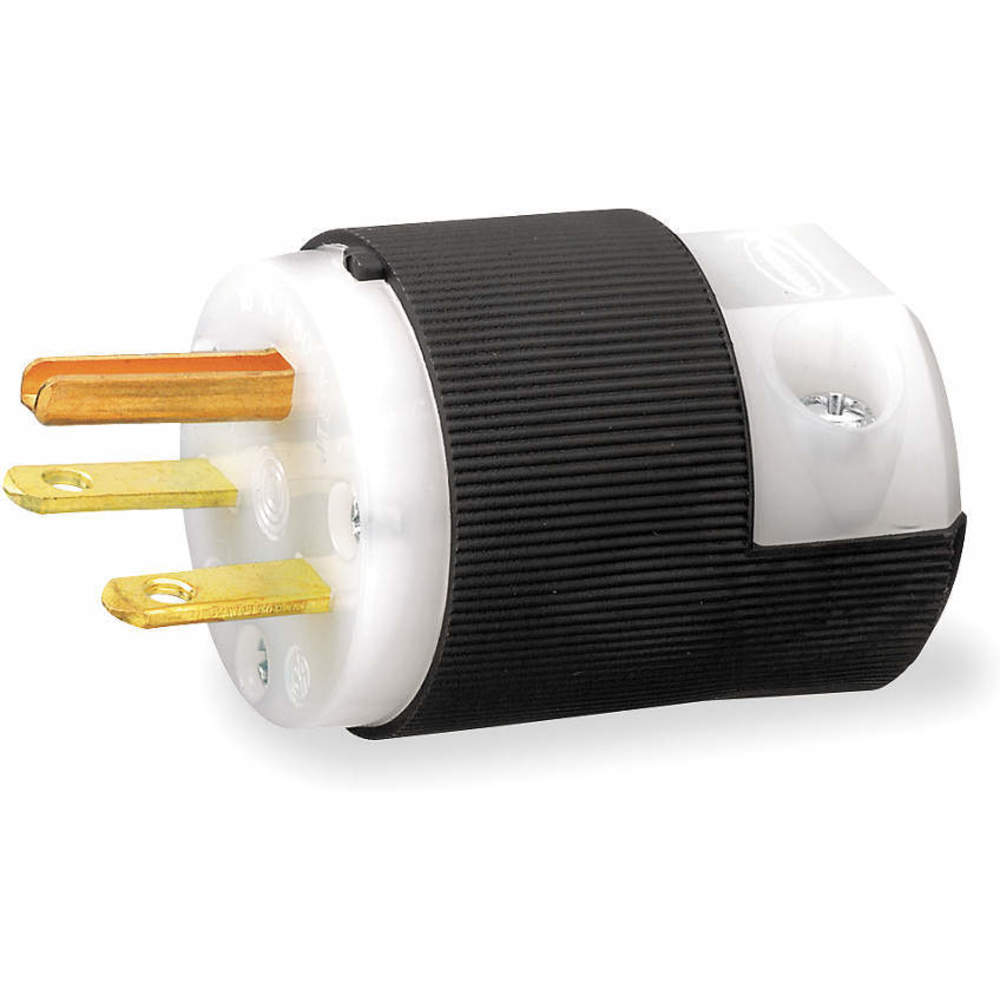

HUBBELL WIRING DEVICE-KELLEMS HBL5666C Male Plug, Heavy-Duty, 6-15P, Balck & White, 1-1/2 HP
Black, White
0.23" to 0.72"
NEMA 6-15P
Get it by Thursday, Dec 18
€25.54 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Plug |
| Amps | 15A |
| Antimicrobial | No |
| Body Length | 1.97" |
| Color | Black, White |
| Connection Orientation | Straight |
| Cord Size | 0.23" to 0.72" |
| Current Rating | 15A |
| Dielectric Strength | Withstands 2,000V minimum |
| For Maximum Cable Diameter | 0.72" |
| For Minimum Cable Diameter | 0.23" |
| Grade | Grade Industrial |
| Grounding | Grounded |
| Height | 1.53" |
| Housing Color | Black, White |
| Housing Material | Nylon |
| Hp | 1 1/2 hp |
| Insulation Material | Nylon |
| Ip Rating | IP20 |
| Length | 1.97" |
| Material | Nylon |
| Max. Hp | 1 1/2 hp |
| Maximum Operating Temperature | 167°F |
| Maximum Wire Size | 10 AWG |
| Minimum Operating Temperature | -40°F |
| Minimum Wire Size | 18 AWG |
| Nema Plug Configuration | 6-15P |
| Nema Rating | NEMA 6-15P |
| Number Of Blades | 3 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Outside Diameter | 1.53" |
| Phase | 1 |
| Polarized | Yes |
| Product Datasheet | hubbell-wiring-device-kellems-hbl5666c.pdf |
| Resistance Properties | Chemical Resistant, Impact Resistant |
| Standards | Csa Certified C22.2 No. 42 File 280, Nema Wd-6, Ul 498 File E1706 |
| Ul 94 Flammability Rating | HB |
| Voltage | 250V |
| Voltage Rating | 250V AC |
| Wattage | 3750 W |
| Width | 1.53" |
| Wire Connection Type | Screw Terminals |
| Wire Size | 18 AWG to 10 AWG |
| Wiring Style | Standard |
| Wiring Type | Standard |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 3.89 |
| Ship length (cm) | 5 |
| Ship width (cm) | 3.89 |
| HS code | 8536698000 |
| Country of Origin | US |
Product Details:
- Insulgrip, Nylon, Heavy Duty, Industrial/Commercial Grade, Straight
Documentation:
Product Variants
| Product | Model | Number Of Poles | Amps | Nema Plug Configuration | Wiring Style | Voltage | Color | Material | Nema Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL5466C | 2 | 20A | 6-20P | Standard | 250V | Black, White | Nylon | NEMA 6-20P | €63.82 | |
 |
HBL5866VY | 2 | 15A | 1-15P | Hinged | 125V | Yellow | Nylon | NEMA 1-15P | €29.90 | |
 |
HBL5364VBK | 2 | 20A | 5-20P | Hinged | - | Black | Polycarbonate | NEMA 5-20P | €40.58 | |
 |
HBL5464VY | 2 | 20A | 6-20P | Hinged | 250V | Yellow | Nylon | NEMA 6-20P | €42.67 | |
 |
HBL56CM66C | 2 | 15A | 6-15P | Standard | 250V | Yellow | Nylon | NEMA 6-15P | €56.30 | |
 |

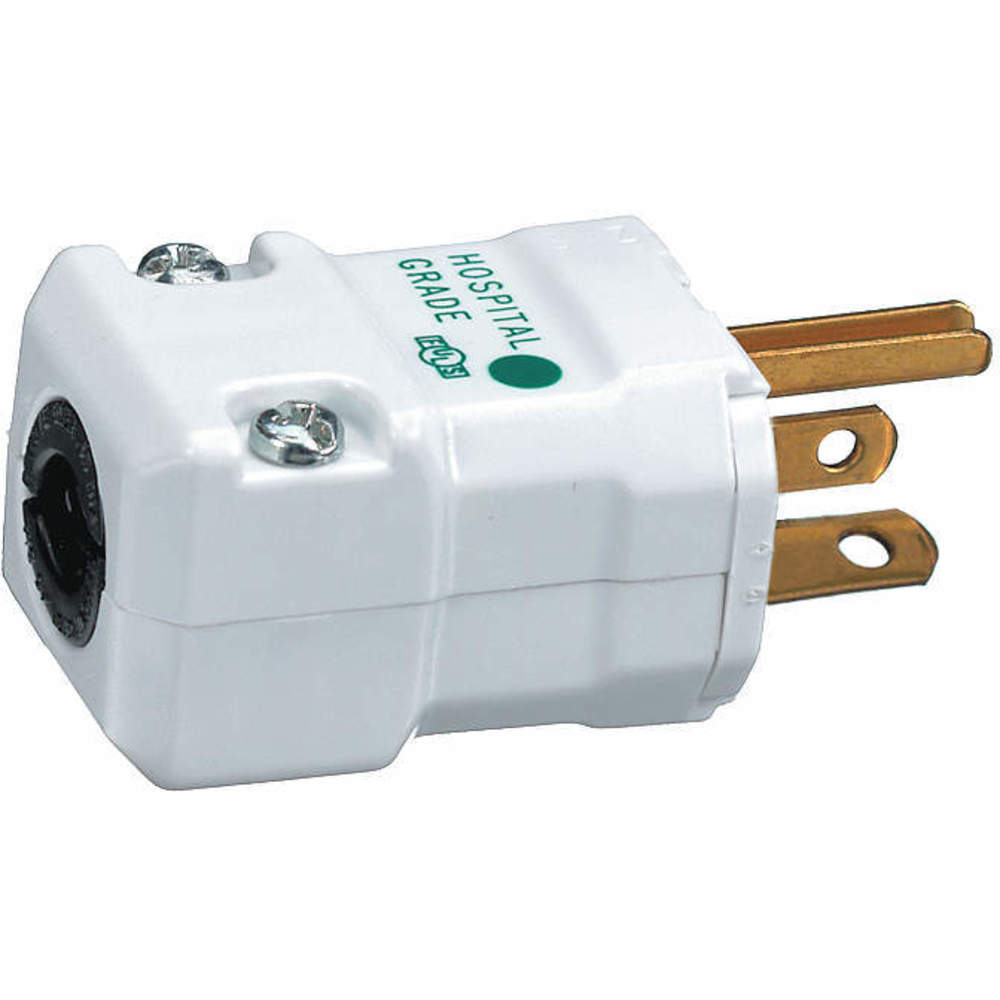

HBL8364V | 2 | 20A | 5-20P | Hinged | 125V | White | Nylon | NEMA 5-20P | €47.23 | |
 |
HBL8464V | 2 | 20A | 6-20P | Hinged | 250V | White | Nylon | NEMA 6-20P | €55.01 |
