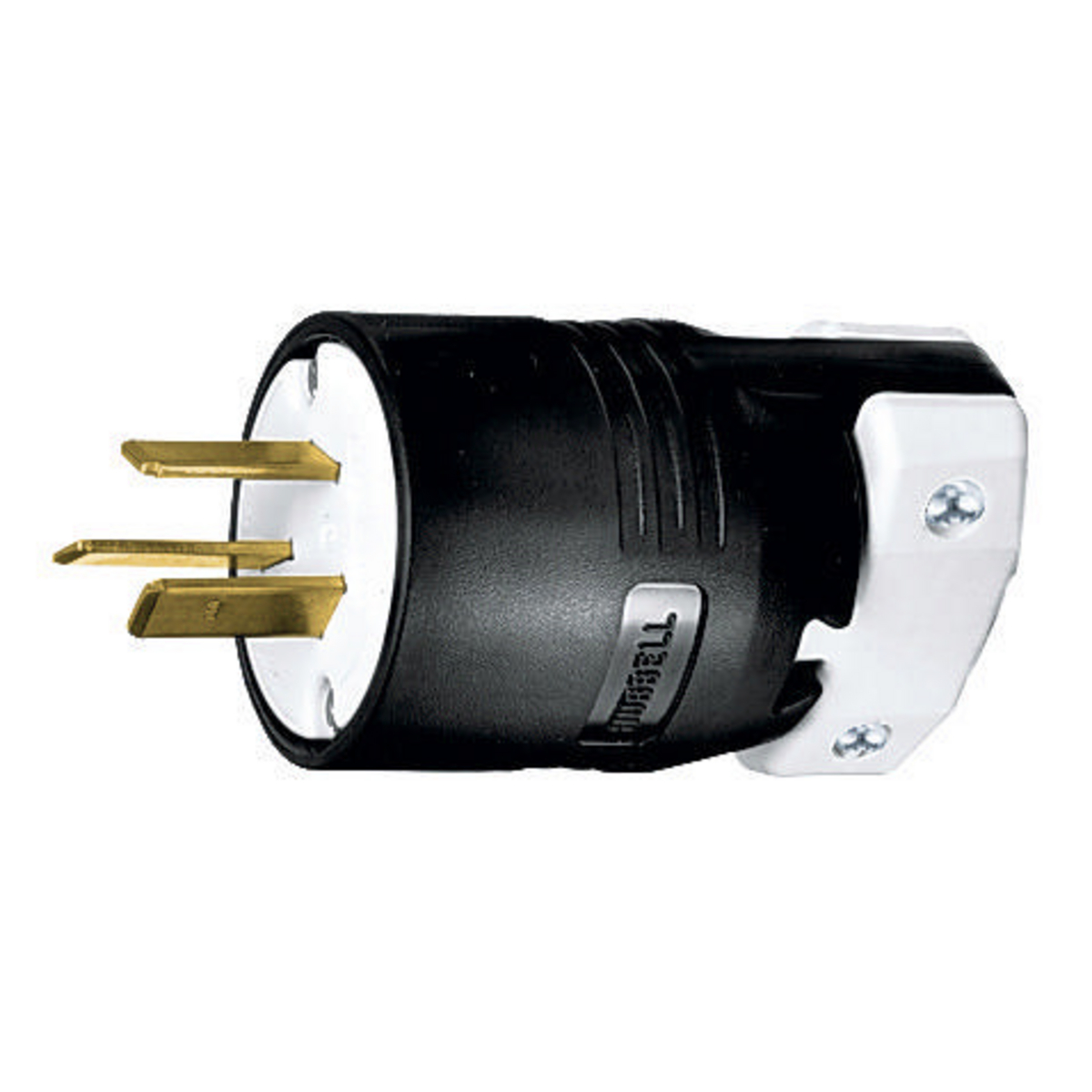

HUBBELL WIRING DEVICE-KELLEMS HBL7513C Straight Blade Male Plug, 50A 125/250V, 10-50P, Black
Item: AE7LFVModel: HBL7513CCross Ref: 5Z844
7 In Stock
Black
0.625" to 1.218"
NEMA 10-50P
Ships within 2 days via
10.00% off
€175.16 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Plug |
| Amps | 50A |
| Antimicrobial | No |
| Body Length | 4.13" |
| Color | Black |
| Connection Orientation | Straight |
| Cord Dia. Range | 0.625"-1.218" |
| Cord Size | 0.625" to 1.218" |
| Current Rating | 50A |
| Dielectric Strength | Withstands 2,000V minimum |
| For Maximum Cable Diameter | 1.218" |
| For Minimum Cable Diameter | 0.625" |
| Grade | Grade Industrial |
| Grounding | Non Grounded |
| Height | 2 22/25" |
| Horsepower Rating | 2 hp, 3 hp |
| Housing Color | Black |
| Housing Material | Nylon |
| Insulation Material | Nylon |
| Ip Rating | IP20 |
| Length | 4.13" |
| Material | Nylon |
| Max. Hp | 3 hp |
| Maximum Operating Temperature | 167°F |
| Maximum Wire Size | 4 AWG |
| Minimum Operating Temperature | -40°F |
| Minimum Wire Size | 12 AWG |
| Nema Plug Configuration | 10-50P |
| Nema Rating | NEMA 10-50P |
| Number Of Blades | 3 |
| Number Of Poles | 3 |
| Number Of Wires | 3 |
| Outside Diameter | 2.88" |
| Phase | 3 |
| Polarized | Yes |
| Product Datasheet | hubbell-wiring-device-kellems-hbl7513c.pdf |
| Resistance Properties | Corrosion Resistant |
| Standards | Csa Certified, Ul E1706 |
| Ul 94 Flammability Rating | HB |
| Voltage Rating | 125/250V AC |
| Wire Connection Type | Screw Terminals |
| Wire Size | 12 AWG to 4 AWG |
| Wiring Style | Standard |
| Wiring Type | Standard |
Shipping Info:
| Ship weight (kg) | 0.36 |
| Ship height (cm) | 7.32 |
| Ship length (cm) | 10.49 |
| Ship width (cm) | 7.32 |
| HS code | 8536490080 |
| Country of Origin | US |
Product Details:
- Heavy Duty, Industrial/Commercial Grade, Straight
Documentation:
Product Variants
| Product | Model | Number Of Poles | Amps | Nema Plug Configuration | Wiring Style | Voltage | Color | Material | Nema Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL5466C | 2 | 20A | 6-20P | Standard | 250V | Black, White | Nylon | NEMA 6-20P | €63.82 | |
 |
HBL5666C | 2 | 15A | 6-15P | Standard | 250V | Black, White | Nylon | NEMA 6-15P | €25.54 | |
 |
HBL5866VY | 2 | 15A | 1-15P | Hinged | 125V | Yellow | Nylon | NEMA 1-15P | €29.90 | |
 |
HBL5364VBK | 2 | 20A | 5-20P | Hinged | - | Black | Polycarbonate | NEMA 5-20P | €40.58 | |
 |
HBL5464VY | 2 | 20A | 6-20P | Hinged | 250V | Yellow | Nylon | NEMA 6-20P | €42.67 | |
 |
HBL56CM66C | 2 | 15A | 6-15P | Standard | 250V | Yellow | Nylon | NEMA 6-15P | €56.30 | |
 |
HBL8364V | 2 | 20A | 5-20P | Hinged | 125V | White | Nylon | NEMA 5-20P | €47.23 |
