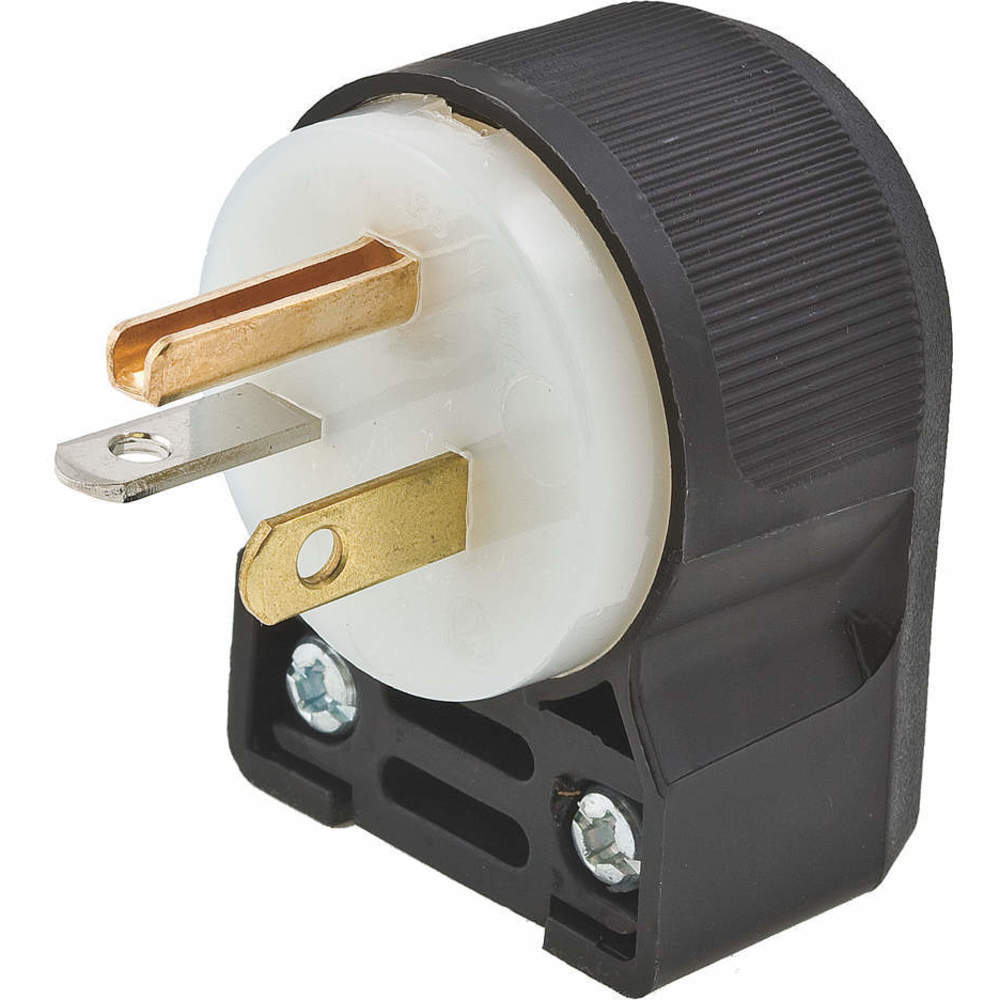

HUBBELL WIRING DEVICE-KELLEMS HBL5366CA Straight Angle Plug, 2-P 3-W Grounding, 20A 125V, 5-20P, Black And White, 1 Pk | AE7LFW 5Z866

HUBBELL WIRING DEVICE-KELLEMS HBL5366CA Straight Angle Plug, 2-P 3-W Grounding, 20A 125V, 5-20P, Black And White

Item: AE7LFWModel: HBL5366CACross Ref: 5Z866
7 In Stock

Ships within 2 days via

€70.70
10.00% off
€63.63 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Angle Plug
Amps 20A
Antimicrobial No
Body Length 1.21"
Color Black, White
Connection Orientation Angled
Cord Size 0.325" to 0.655"
Current Rating 20A
Dielectric Strength Withstands 2,000V minimum
For Maximum Cable Diameter 0.655"
For Minimum Cable Diameter 0.325"
Grade Grade Industrial
Grounding Grounded
Height 2 2/25"
Housing Color Black, White
Housing Material Polycarbonate
Hp Rating 3/20 hp
Insulation Material Nylon
Ip Rating IP20
Length 1.21"
Material Polycarbonate
Max. Hp 3/20 hp
Maximum Operating Temperature 167°F
Maximum Wire Size 10 AWG
Minimum Operating Temperature -40°F
Minimum Wire Size 18 AWG
Nema Plug Configuration 5-20P
Nema Rating NEMA 5-20P
Number Of Blades 3
Number Of Poles 2
Number Of Wires 3
Phase 1
Polarized Yes
Product Datasheet hubbell-wiring-device-kellems-hbl5366ca.pdf
Resistance Properties Corrosion Resistant
Standards Csa Certified C22.2 No. 42 File 280, Federal Specification W-C-596G, Nema Wd-6, Ul 498 File E1706
Ul 94 Flammability Rating HB
Voltage Rating 125V AC
Width 1 13/25"
Wire Connection Type Screw Terminals
Wire Size 18 AWG to 10 AWG
Wiring Style Standard
Wiring Type Standard

Shipping Info:

Ship weight (kg) 0.07
Ship height (cm)5.28
Ship length (cm)3.07
Ship width (cm)3.86
HS code8536698000
Country of OriginUS
