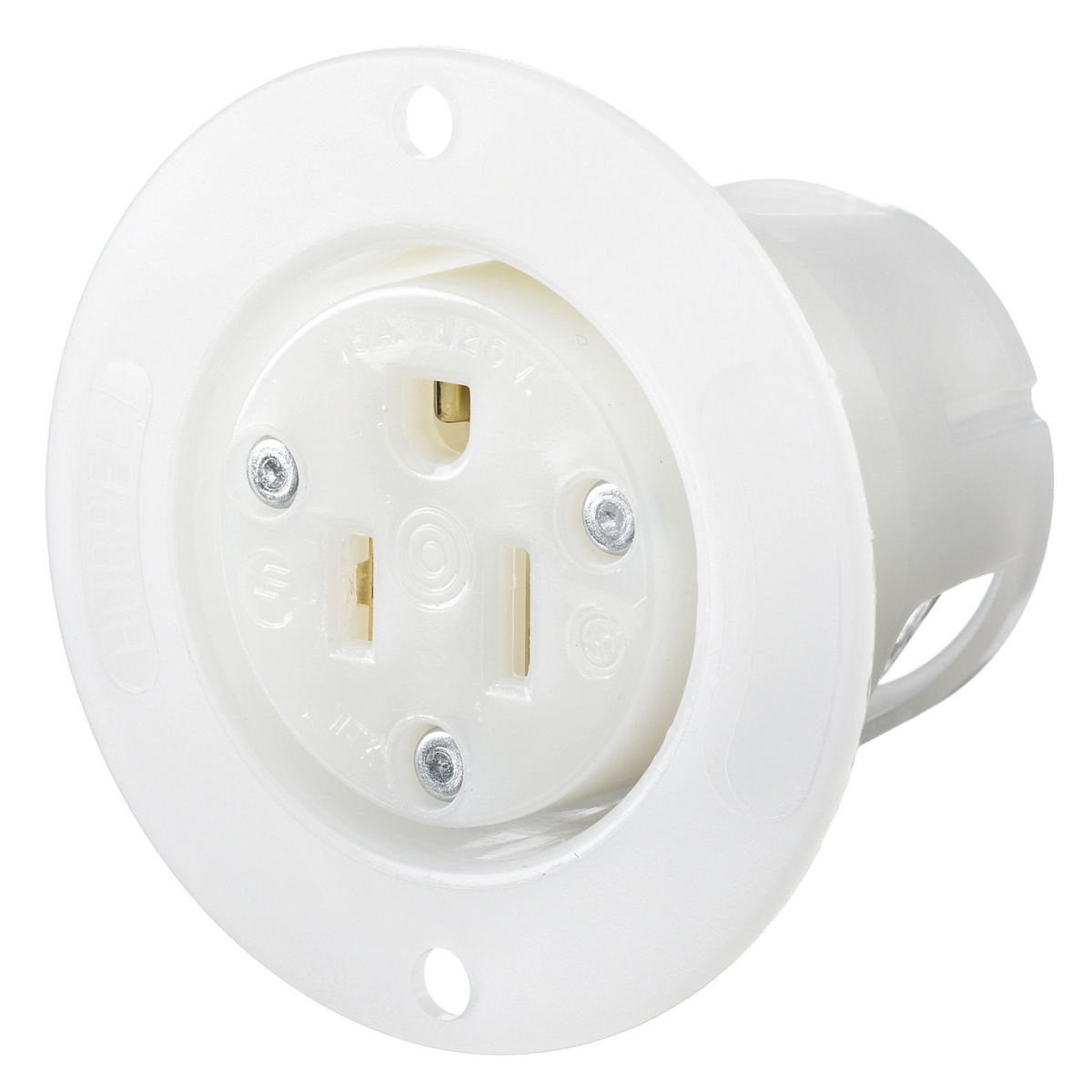

HUBBELL WIRING DEVICE-KELLEMS HBL5279C Straight Blade Receptacle, 2-P 3-W Grounding, 15A 125V, 5-15R, White
Item: AE7LGFModel: HBL5279CCross Ref: 5Z875
7 In Stock
Ships within 2 days via
10.00% off
€67.67 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Miniature Flanged Receptacle |
| Afci | No |
| Amps | 15A |
| Application Environment | Industrial Environments |
| Color | White |
| Connection Orientation | Straight |
| Connectivity | Screw Terminals |
| Contact Material | Brass |
| Cord Dia. Range | 0.230"-0.720" |
| Cover Type | No Cover |
| Current Rating | 15A |
| Dielectric Strength | Withstands 2,000V minimum |
| Duty | Heavy Duty |
| Flange Diameter | 2.6" |
| Flange Height | 1.7" |
| Flange Material | Nylon |
| Flange Shape | Round |
| Gfci | No |
| Grade | Federal Specification |
| Grounding | Grounded |
| Height | 1.71" |
| Housing Color | White |
| Housing Material | Nylon |
| Hp | 1/2 hp |
| Includes | Mounting Hardware |
| Includes Mounting Hardware | Yes |
| Length | 1.71" |
| Material | Nylon |
| Max. Hp | 1/2 hp |
| Maximum Operating Temperature | 167°F |
| Maximum Wire Size | 10 AWG |
| Minimum Operating Temperature | -40°F |
| Minimum Wire Size | 18 AWG |
| Mount Hole Center-to-center Height | 2.2" |
| Mount Type | Flush |
| Mounting Location | Panel |
| Mounting Type | Panel |
| Nema Enclosure Rating | 1 |
| Nema Rating | NEMA 5-15R |
| Nema Receptacle Configuration | NEMA 5-15R |
| Number Of Gangs | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Outlet Type | Single |
| Overall Depth | 1.7" |
| Phase | 1 |
| Polarized | Yes |
| Power Indicator | No |
| Prod. Description | Designed To Accept Molded On Connector Bodies |
| Product Datasheet | hubbell-wiring-device-kellems-hbl5279c.pdf |
| Receptacle Type | Single |
| Special Resistance | Impact Resistant |
| Standards | Csa Certified C22.2 No. 42, Nema Wd-6, Ul E2186 |
| Surge Protection | No |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wattage | 1875 W |
| Weather Resistant | No |
| Width | 1.69" |
| Wire Connection Location | Back |
| Wire Connection Type | Screw Terminals |
| Wire Connection Types | Screw Terminals |
| Wire Size | 18 AWG to 10 AWG |
| Wiring Method | Back |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 4.34 |
| Ship length (cm) | 4.34 |
| Ship width (cm) | 4.29 |
| HS code | 8536698000 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Wire Connection Location | Housing Color | Wire Size | Housing Material | Color | Material | Mount Hole Center-to-center Height | Wiring Method | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

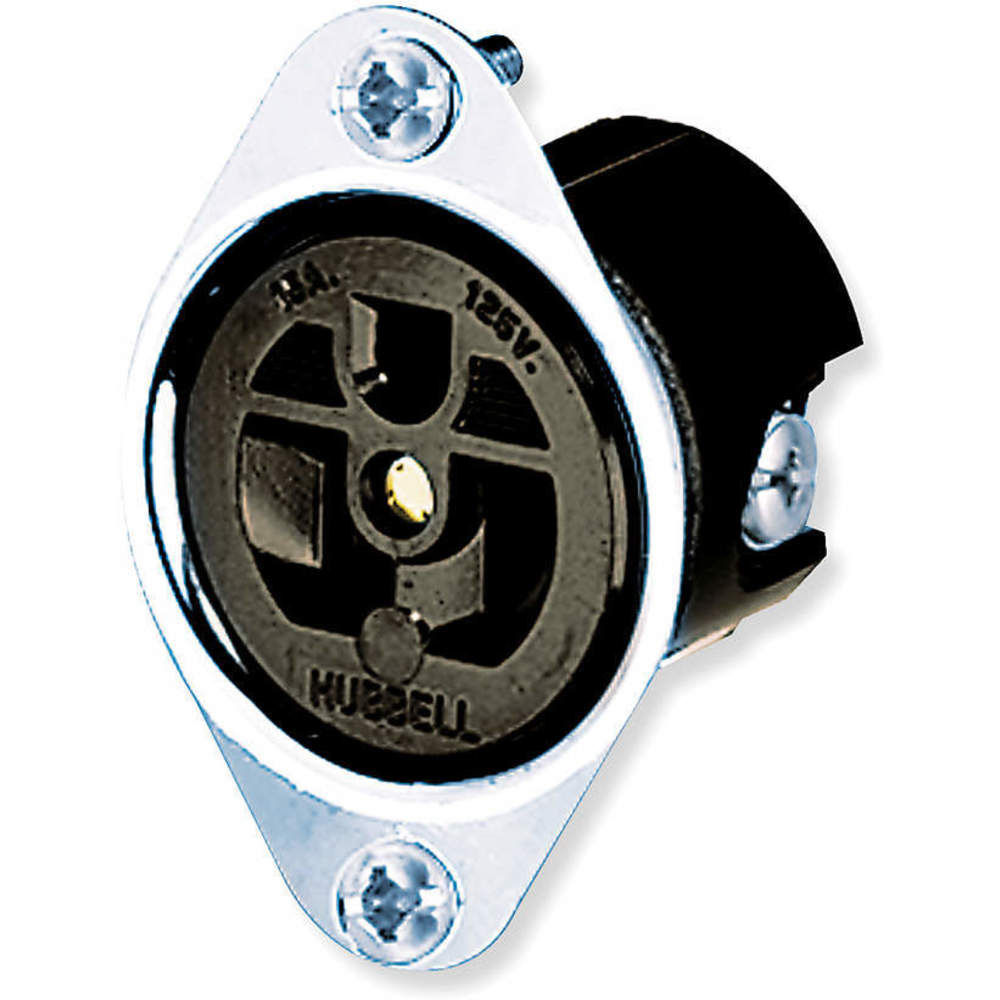

HBL5256 | Side | Brown | 14 AWG to 10 AWG | Stainless Steel | Brown | Stainless Steel | 2.1" | Side | €69.57 |
