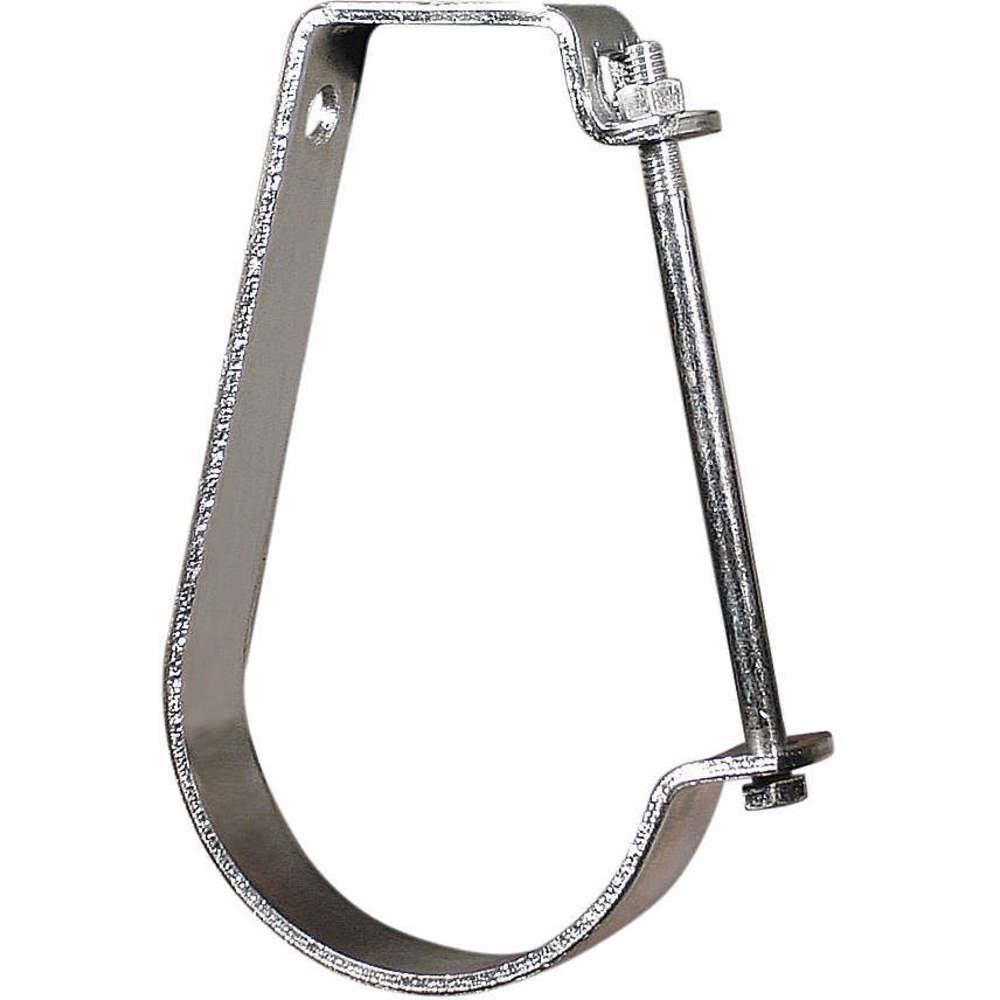

ANVIL 0500300686 Pipe/Conduit Hanger, 4 Inch Pipe Size
Item: AD8CXFModel: 0500300686Cross Ref: 4HYA4
7 In Stock
Ships within 2 days via
5.00% off
€26.86 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pipe/Conduit Hanger |
| Cushioned | No |
| Features | T Slot In Hanger Permits Side Bolt To Be Installed After Installation And Setting Of Pipe |
| Finish | Zinc Plated |
| For Insulated Pipe | No |
| For Pipe Size | 4" |
| For Threaded Rod Size | 5/8" |
| For Use On | Pipe |
| Hanger Material | Steel |
| Hanger Material Finish | Zinc Plated |
| Hanger Type | Clevis |
| Length | 8 1/8" |
| Load Capacity | 550 lbs. |
| Material | Carbon Steel |
| Max. Load | 550 lbs. |
| Metal Detectable | Yes |
| Mounting Hole Dia. | 9/16" |
| Mounting Location | Suspended, Wall |
| Overall Height | 8 1/8" |
| Pipe Center To Hanger Top | 6 1/8" |
| Product Datasheet | anvil-0500300603.pdf |
| Required No. Of Threaded Rods | 1 |
| Rod Size | 5/8" |
| Series | Figure 67 |
Shipping Info:
| Ship weight (kg) | 0.63 |
| Ship height (cm) | 20.65 |
| Ship length (cm) | 8.84 |
| Ship width (cm) | 15.93 |
| HS code | 7326908530 |
| Country of Origin | CN |
Product Details:
- Special Features: Can Be Suspended By Hanger Rod Or Attached To Wall. T Slot In Hanger Permits Side Bolt To Be Installed After Installation And Setting Of Pipe.
Documentation:
Product Variants
| Model | Load Capacity | For Pipe Size | Overall Height | For Threaded Rod Size | Mounting Hole Dia. | For Use On | Max. Load | Pipe Center To Hanger Top | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 0500300603 | 400 lbs. | 1/2" | 2 7/8" | 3/8" | 7/16" | CPVC, Pipe | 400 lbs. | 2 5/8" | €6.50 | |
| 0500300611 | 400 lbs. | 3/4" | 3 5/8" | 3/8" | 7/16" | CPVC, Pipe | 400 lbs. | 2 7/8" | €6.77 | |
| 0500300629 | 400 lbs. | 1" | 3.438" | 3/8" | 7/16" | CPVC, Pipe | 400 lbs. | 3" | €6.70 | |
| 0500300637 | 400 lbs. | 1 1/4" | 3 7/8" | 3/8" | 7/16" | CPVC, Pipe | 400 lbs. | 3 1/4" | €6.69 | |
| 0500300645 | 400 lbs. | 1 1/2" | 4.313" | 3/8" | 7/16" | CPVC, Pipe | 400 lbs. | 3 1/2" | €7.36 | |
| 0500300652 | 400 lbs. | 2" | 4.688" | 3/8" | 7/16" | CPVC, Pipe | 400 lbs. | 3 3/4" | €9.25 | |
| 0500300660 | 500 lbs. | 2 1/2" | 5.688" | 1/2" | 9/16" | Pipe | 500 lbs. | 4 3/8" | €17.68 |
