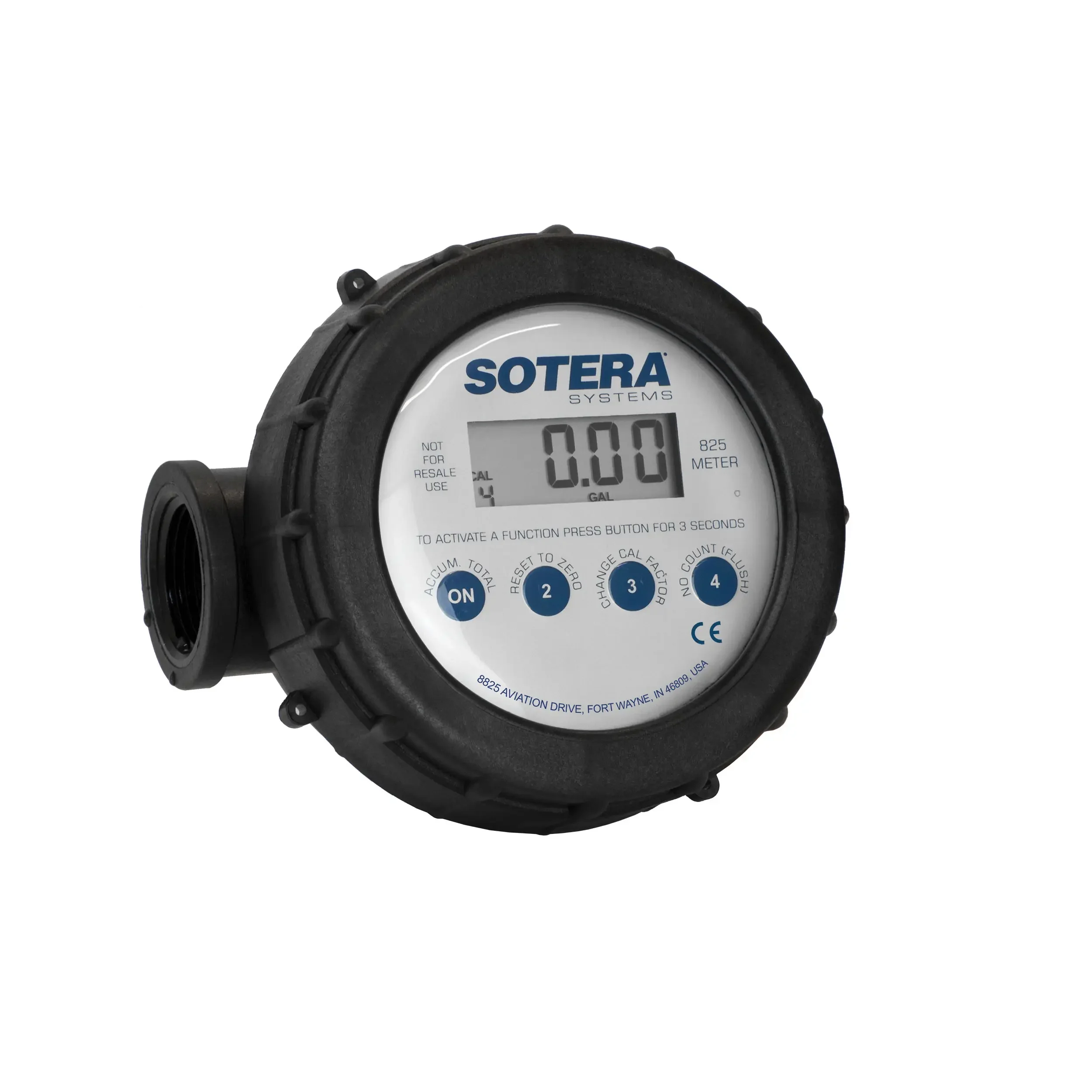

SOTERA 825X700 Electronic Flowmeter, -10 to 130 Deg F Range, 2 to 20 Gpm Flow Rate, 1 Inch FNPT, EPDM, 125 psi
Item: CU3CJVModel: 825X700Cross Ref: 48YA46
7 In Stock
Ships within 2 days via
13.00% off
€371.85 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mechanical Flowmeter |
| Accuracy | +/-0.5% |
| Application | Agriculture, Construction, Industrial, Mining, Municipalities |
| Chamber Material | Polypropylene |
| Compatible Flow Material | Antifreeze, Fertilizers, Oils, Pesticides, Petroleum Fluids |
| Connection Size | 1" |
| Connection Type | NPT |
| Display | Digital |
| Display Type | Digital |
| Fitting | Brass |
| Fitting Material | Brass |
| Flow | 2-20 GPM |
| Flow Material | Crop Oil, Detergents, Diesel Exhaust Fluid, Diesel Fuel, Ethylene Glycol, Fertilizers, Gear Oil, Mild Acids, Mineral Spirits, Motor Oil, Pesticides, Soaps, Water |
| Flow Range @ Gpm/lpm | 2 to 20/7.6 to 76 |
| Flow Rate | 2-20 GPM , 2.0-20 GPM |
| Flowmeter Type | Paddlewheel |
| Fluid Connection Size | 1" |
| Fluid Connection Type | NPT |
| Fluid Temp. | -40°F to +140°F |
| For Pipe Size | 1" |
| Housing Material | Polypropylene |
| Included Flow Rate Adjustment Knob | Yes |
| Included Pressure Gauge | No |
| Included Totalizer | Yes |
| Length | 5 1/4" |
| Length (straight Wireway) | 5 1/4" |
| Master Totalizer | 999999 gal. |
| Max. Flow Rate | 20 GPM |
| Max. Media Temp. | 140°F |
| Max. Operating Pressure | 125 psi |
| Max. Pressure | 100 psi |
| Max. Temp. | 130 |
| Max. Viscosity | 50 SUS |
| Media Temp. | -40°F to +140°F |
| Min. Flow Rate | 2 GPM |
| Min. Media Temp. | -40°F |
| Mounting Location | Inline |
| Mounting Orientation | Universal |
| O-ring | Buna |
| O-ring Material | Buna N |
| Overall Height | 5" |
| Overall Length | 5.3" |
| Overall Width | 5 1/2" |
| Pressure Drop - 100% Flow (psi) | 6.9 psi |
| Pressure Drop - 50% Flow (psi) | 1.8 psi |
| Pressure Drop-100% Flow | 6.9 psi |
| Pressure Drop-50% Flow | 1.8 psi |
| Product Datasheet | sotera-825.pdf |
| Product Type | Digital Meter |
| Pulse Rate | 10 pulses/gal. |
| Resetable Cumulative Totalizer | 999 gal. |
| Rotor Material | PPS |
| Seal Material | Buna N |
| Shaft Material | Stainless Steel |
| Thread | NPT |
| Thread Type | NPT |
| Type | Liquid |
| Unit Of Measure | Gallons, Liters |
| Wetted Material | EPDM, Polyproplyne |
| Width | 5 1/2" |
Shipping Info:
| Ship weight (kg) | 0.81 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 26.67 |
| Ship width (cm) | 18.54 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Max. Flow Rate | Flow | Housing Material | Flow Rate | Max. Media Temp. | Flowmeter Type | Min. Media Temp. | Media Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
820 | 20 GPM | 2-20 GPM | Polypropylene | 2-20 GPM | 130°F | Paddle Wheel | -10°F | -10°F to +130°F | €612.19 | |
 |
TT10PN | 35 GPM | 2-35 GPM | Polycarbonate | 2-35 GPM | 130°F | Turbine | 0°F | 0°F to 130°F | €440.44 | |
 |
TT10PB | 35 GPM | 2-35 GPM | Polycarbonate | 2-35 GPM | 130°F | Turbine | 0°F | 0°F to 130°F | €393.29 |
